QuantumX רכישת/איסוף נתונים
QuantumX — מערכות איסוף נתונים של HBK בתחום רכישת/איסוף נתונים.
הורדת גיליון נתונים (נפתח בלשונית חדשה) הסדרה באתר HBK (נפתח בלשונית חדשה)
מפרט טכני משותף לסדרה
תכונות שיש לכל דגם בסדרה. מה שמשתנה בין הדגמים מופיע בטבלת הדגמים שלמטה.
טווח על פני הדגמים
הטווח שמכסים דגמי הסדרה יחד – לא הטווח של כל דגם.
| קצב דגימת ADC | 300–5000000 samples/s |
|---|---|
| מספר ערוצי מדידה | 4–32 |
הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.

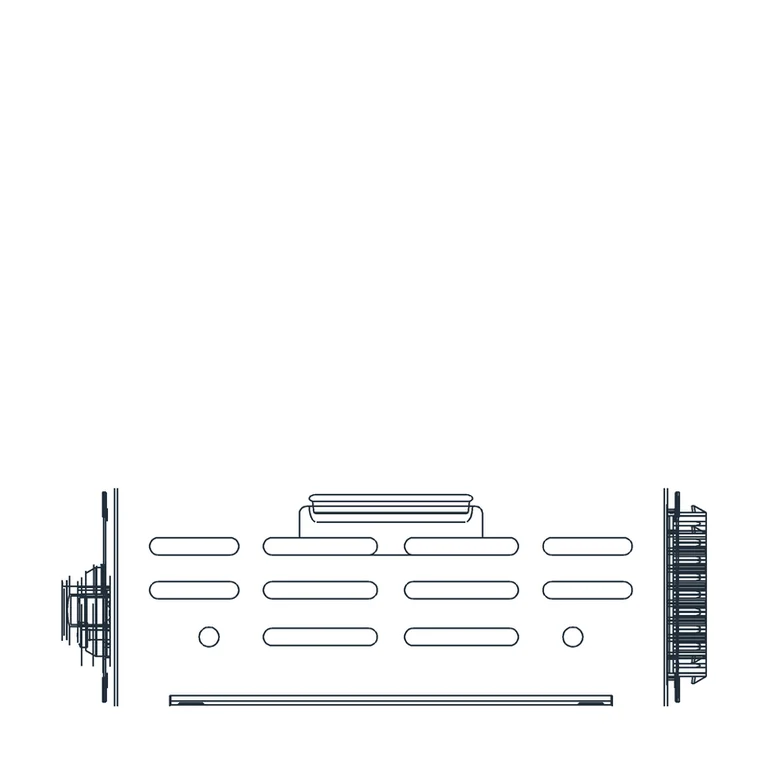

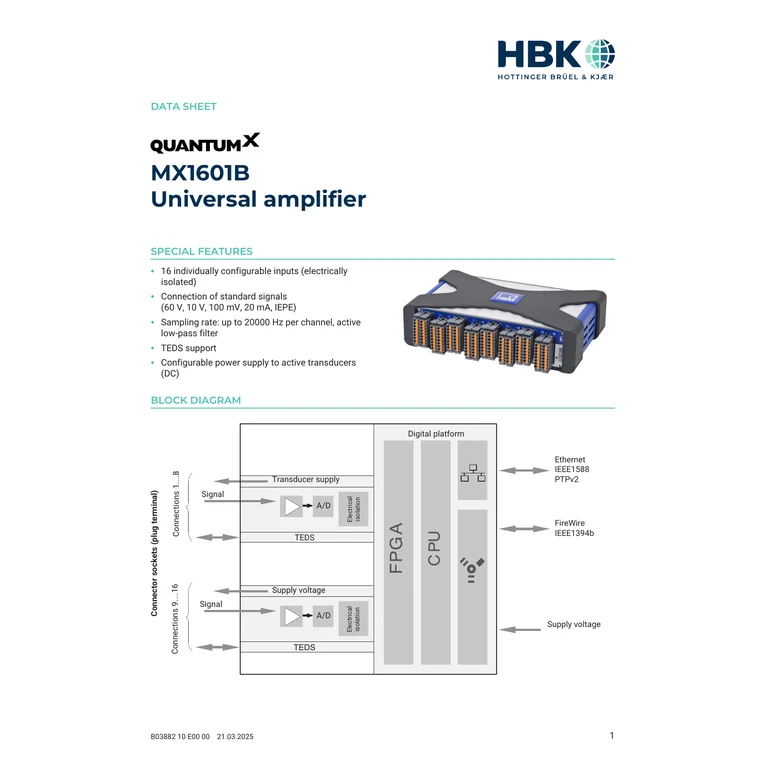

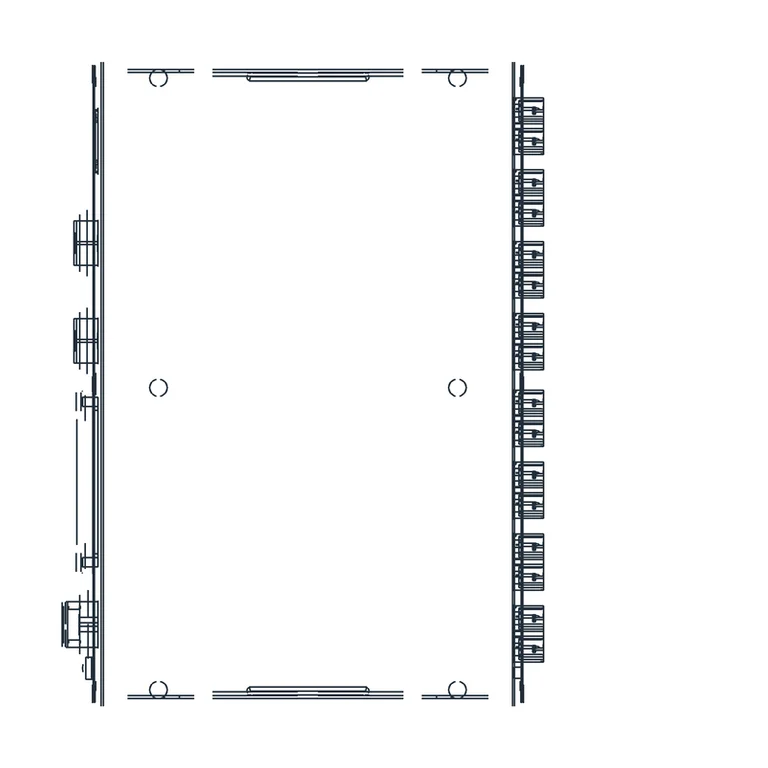

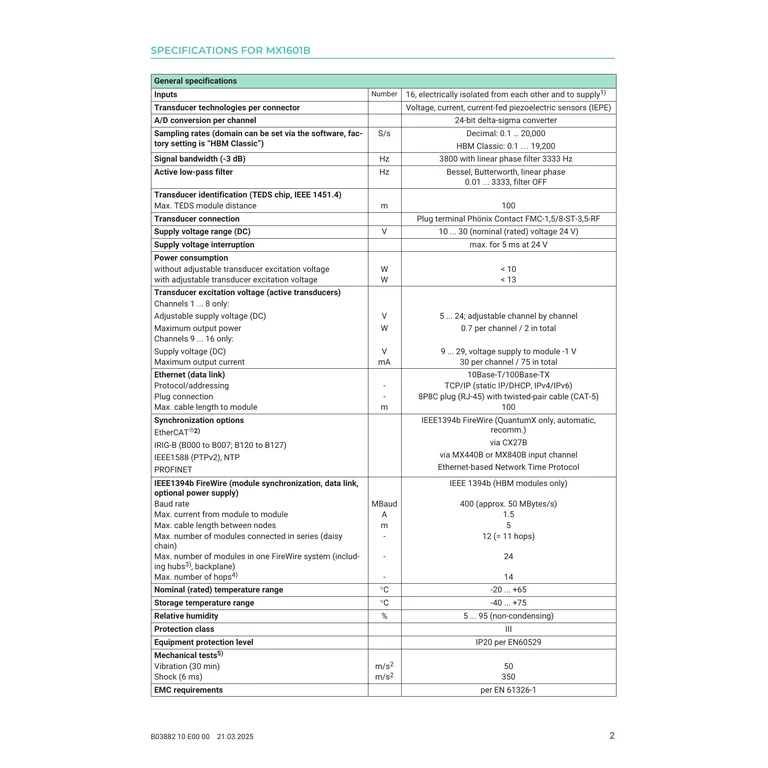

| פרמטר | CX22B eli-m-02b2ebfa7be0440de8279ff8 | CX22B-W eli-m-8421589cae5a6a1c2b3ccad7 | CX27 eli-m-cecd9d80c78b7992872513bd | MX1601B eli-m-aecadc3d8fb6e0acee51fa58 | MX1609KB eli-m-470d01ac7b22b4d143066f12 | MX1609TB eli-m-e348fdc5bc44518fd7ccd29e | MX1616B eli-m-75c294ecd6b261cae505b7b6 | MX403B eli-m-dce405ed2769407b9c658aec | MX410B eli-m-4cadd1b36ebf03fbd2bd9a92 | MX430B eli-m-6082b1efaf54f20a4d30f982 | MX440B eli-m-e62a9bacce4a0c3881b9b33b | MX460B eli-m-0af5c2f2473b3cfda28dcb48 | MX471C eli-m-8b446fa36b5d249e6401b8c4 | MX809B eli-m-5997155e8cb462640f300e43 | MX840B eli-m-2ca46347bd869a5a1297bb93 | MX878B eli-m-5a6554168270586c5197e522 | MX879B eli-m-52ddada836f636d58c95aa72 | QuantumX platform eli-m-4067b0a70ea5fe1ab586f130 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| תמיכה בעירור חיישן | False | False | False | False | False | False | False | False | True | True | True | False | False | False | True | False | False | לא צוין |
| קצב דגימת ADC | 5000000 samples/s | 5000000 samples/s | 4800 samples/s | 20000 samples/s | 300 samples/s | 300 samples/s | 20000 samples/s | 100000 samples/s | 100000 samples/s | 40000 samples/s | 40000 samples/s | 100000 samples/s | לא צוין | 600 samples/s | 40000 samples/s | 4800 samples/s | 4800 samples/s | לא צוין |
| ממשקים מובנים | ethercat | ethernet | ethernet | ethercat | ethercat | ethernet | ethercat | ethercat | ethernet | ethercat | ethercat | ethernet | ethercat | ethercat | ethercat | ethernet | ethernet | ethernet |
| בסיס הגדרת לינאריות | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Official module accuracy class represented as 0.01%; signal- and range-specific conditions still apply. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy is signal-, range-, filter- and module-specific; use the exact table in the official QuantumX brochure. | Accuracy and linearity are module-, range- and input-type-specific. |
| בסיס קצב הדגימה | 5,000,000 samples/s/channel published maximum. | 5,000,000 samples/s/channel published maximum. | 4,800 samples/s/channel published maximum. | 20,000 samples/s/channel published maximum with 3,000 Hz published bandwidth. | 300 samples/s/channel published maximum with 15 Hz published bandwidth. | 300 samples/s/channel published maximum with 15 Hz published bandwidth. | 20,000 samples/s/channel published maximum with 3,000 Hz published bandwidth. | 100,000 samples/s/channel published maximum with 40,000 Hz published bandwidth. | 100,000 samples/s/channel published maximum with 40,000 Hz published bandwidth. | 40,000 samples/s/channel published maximum with 6,000 Hz published bandwidth. | 40,000 samples/s/channel published maximum with 7,000 Hz published bandwidth. | 100,000 samples/s/channel published maximum with 40,000 Hz published bandwidth. | Use the ordered module data table for its signal-update limit. | 600 samples/s/channel published maximum with 15 Hz published bandwidth. | 40,000 samples/s/channel published maximum with 7,000 Hz published bandwidth. | 4,800 samples/s/channel published maximum. | 4,800 samples/s/channel published maximum. | Platform-level coverage; use the exact selected input module datasheet for sample rate and bandwidth. |
| בסיס הגדרת חזרתיות | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | System repeatability depends on the transducer, bridge excitation, thermal state, wiring, calibration and selected digital filter. | Complete-chain repeatability depends on the selected transducer, module, excitation, wiring and calibration. |
| נתון טכני לפי גודל ובסיס במקור | QuantumX industrial PC and stand-alone recorder with aggregate acquisition up to 5 MS/s and local storage | rugged QuantumX stand-alone recorder variant with aggregate acquisition up to 5 MS/s and local storage | real-time gateway that maps synchronized QuantumX data to EtherCAT or PROFINET at up to 4.8 kS/s | sixteen-channel standard amplifier for voltage, current and IEPE / CCLD sensors | sixteen-channel thermocouple Type K amplifier with cold-junction compensation | sixteen-channel thermocouple Type T amplifier with cold-junction compensation | sixteen-channel full/half/quarter-bridge amplifier with 350 Ω and 1000 Ω quarter-bridge completion plus RTD, resistance, potentiometer and voltage inputs | four-channel high-voltage and current amplifier for isolated electrical measurements | four-channel high-dynamic universal amplifier for full/half bridges, IEPE, piezoresistive and inductive sensors, voltage/current plus analog output; up to 200 kS/s and 80 kHz with two active channels | four-channel precision full-bridge amplifier with 2.5/5/10 V excitation and 2.5 or 5 mV/V measuring ranges | four-channel universal amplifier for bridge, IEPE, piezoresistive, temperature, resistance, voltage/current and frequency-related inputs | four-channel high-dynamic torque, rotational-speed, frequency, timer, encoder and pulse amplifier for torsional-vibration analysis | four-port CAN FD / CAN Classic acquisition and output module with RAW reception, decoded signal handling and message transmission | eight-channel electrically isolated thermocouple and cell-voltage amplifier for high common-mode environments | eight-channel universal amplifier for full/half bridges, IEPE, piezoresistive sensors, RTD, thermocouple, resistance, potentiometer, voltage/current and selected frequency/encoder/SSI/CAN inputs | eight-channel analog-output module for real-time calculated or measured QuantumX signals, with 96 kS/s waveform generation | QuantumX module adding 32 configurable digital I/O channels alongside real-time analog output functions | universal modular high-precision DAQ for mechanical and structural multi-physics testing |
| מספר ערוצי מדידה | לא צוין | לא צוין | לא צוין | 16 | 16 | 16 | 16 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 32 | לא צוין |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
| גיליון נתונים | PDF — CX22B (נפתח בלשונית חדשה) | PDF — CX22B-W (נפתח בלשונית חדשה) | PDF — CX27 (נפתח בלשונית חדשה) | PDF — MX1601B (נפתח בלשונית חדשה) | PDF — MX1609KB (נפתח בלשונית חדשה) | PDF — MX1609TB (נפתח בלשונית חדשה) | PDF — MX1616B (נפתח בלשונית חדשה) | PDF — MX403B (נפתח בלשונית חדשה) | PDF — MX410B (נפתח בלשונית חדשה) | PDF — MX430B (נפתח בלשונית חדשה) | PDF — MX440B (נפתח בלשונית חדשה) | PDF — MX460B (נפתח בלשונית חדשה) | PDF — MX471C (נפתח בלשונית חדשה) | PDF — MX809B (נפתח בלשונית חדשה) | PDF — MX840B (נפתח בלשונית חדשה) | PDF — MX878B (נפתח בלשונית חדשה) | PDF — MX879B (נפתח בלשונית חדשה) |
