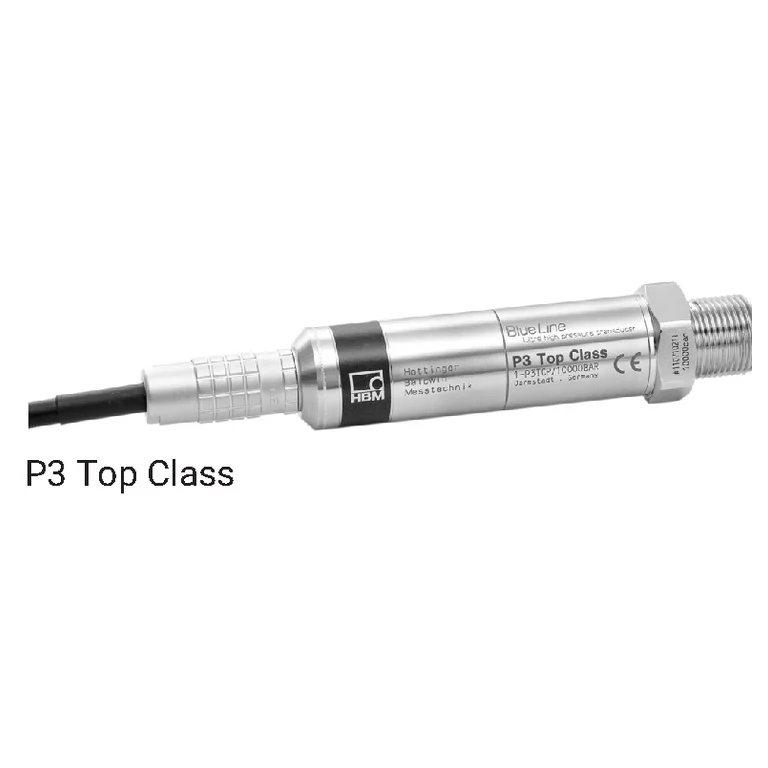

P3 Top Class חיישני לחץ
P3 Top Class — חיישנים ומכשירי מדידה של HBK בתחום חיישני לחץ.
לאתר של HBK (נפתח בלשונית חדשה)
הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.
| פרמטר | 1-P3TCP/1000BAR eli-m-bde985ed42e37bf8d74cc25a | 1-P3TCP/100BAR eli-m-d1d862137f3ed53c5aa1c89d | 1-P3TCP/10BAR eli-m-1442aa3e313d0041c91fb85c | 1-P3TCP/2000BAR eli-m-f12ac4d10e36cd01764e02fb | 1-P3TCP/200BAR eli-m-b378def2b568e9944189d9b3 | 1-P3TCP/20BAR eli-m-34ff312517ca1662197dbc12 | 1-P3TCP/2500BAR eli-m-6028b0e82ecafd0a57a140f6 | 1-P3TCP/3000BAR eli-m-31e3974d85d612f271d49cf5 | 1-P3TCP/500BAR eli-m-bf4dd033b8e4bd57810e87b1 | 1-P3TCP/50BAR eli-m-f1cec7064de8eeb5e5b63156 | 1-P3TCP/750BAR eli-m-a9b6616046ba2aba90101c96 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| עקרון מדידת לחץ | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure | Absolute pressure |
| נתון טכני לפי גודל ובסיס במקור | 0 to 1000 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 100 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 10 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 2000 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 200 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 20 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 2500 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 3000 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 500 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 50 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable | 0 to 750 bar nominal; Absolute pressure; Passive strain gauge; Reference (Top Class); Fixed cable |
| דרגת אטימות IP | ip67 | ip67 | ip67 | ip67 | ip67 | ip67 | ip67 | ip67 | ip67 | ip67 | ip67 |
| ייחוס מדידת לחץ | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f | v_9030f6c8e098622f |
| טמפרטורת עבודה | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C | -40–100 °C |
| בסיס הגדרת חזרתיות | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. | No unsupported standalone repeatability is inferred; verify the complete installed pressure chain by calibration. |
| מחלקת דיוק / שגיאת לחץ | 0.1 % (source basis mandatory) | 0.13 % (source basis mandatory) | 0.2 % (source basis mandatory) | 0.1 % (source basis mandatory) | 0.1 % (source basis mandatory) | 0.15 % (source basis mandatory) | 0.1 % (source basis mandatory) | 0.1 % (source basis mandatory) | 0.1 % (source basis mandatory) | 0.15 % (source basis mandatory) | 0.1 % (source basis mandatory) |
| בסיס הגדרת לינאריות | Official indexed accuracy class: 0.1%. | Official indexed accuracy class: 0.13%. | Official indexed accuracy class: 0.2%. | Official indexed accuracy class: 0.1%. | Official indexed accuracy class: 0.1%. | Official indexed accuracy class: 0.15%. | Official indexed accuracy class: 0.1%. | Official indexed accuracy class: 0.1%. | Official indexed accuracy class: 0.1%. | Official indexed accuracy class: 0.15%. | Official indexed accuracy class: 0.1%. |
| מגבלת קצב בגלל קריאת המערכת | True | True | True | True | True | True | True | True | True | True | True |
| יציאת חיישן לחץ | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge | Passive strain gauge |
| בסיס קצב הדגימה | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. | The selected bridge amplifier and DAQ define the digital sample rate. |
| פרטי ממשק ואות לפי המקור | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown |
| טווח לחץ | 0–1000 bar | 0–100 bar | 0–10 bar | 0–2000 bar | 0–200 bar | 0–20 bar | 0–2500 bar | 0–3000 bar | 0–500 bar | 0–50 bar | 0–750 bar |
| טווח לחץ | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
