VY (Full bridge) עיבור (מעוות)
VY (Full bridge) — חיישנים ומכשירי מדידה של HBK בתחום עיבור (מעוות).
לאתר של HBK (נפתח בלשונית חדשה)
מפרט טכני משותף לסדרה
תכונות שיש לכל דגם בסדרה. מה שמשתנה בין הדגמים מופיע בטבלת הדגמים שלמטה.
טווח על פני הדגמים
הטווח שמכסים דגמי הסדרה יחד – לא הטווח של כל דגם.
| התנגדות נומינלית של מדיד | 120–350 Ω |
|---|---|
| מתח עירור מרבי | 3.5–13 V |
| מידה לפי סימון בשרטוט | 1.3–23 mm |
| רוחב רשת מדיד | 1.3–15 mm |
| אורך רשת מדיד | 3–15 mm |
| אורך נשא המדיד | 7.3–23 mm |
| רוחב נשא המדיד | 7.3–23 mm |
הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.
| פרמטר | 1-MY21-15/350 eli-m-f1a9b234e5dad74581b89090 | 1-MY21-6/120 eli-m-d9547d7bbd1e7be4d9a7f86f | 1-MY23-15/350 eli-m-dc893bbdaac243fdda915dbe | 1-MY23-6/120 eli-m-15d8831be60e2d0d92bf8b7d | 1-MY25-15/350 eli-m-7ebb66c89f2e6435bd305d12 | 1-MY25-6/120 eli-m-efb75d0e158ffe97e878872d | 1-MY26-15/350 eli-m-17562d7ca75da236f0758b37 | 1-MY26-6/120 eli-m-096866c32b87880fc5d1b225 | 1-MY27-15/350 eli-m-e7ab0b833d203f80f7365e28 | 1-MY27-6/120 eli-m-2495ab3525da0e576ee5d999 | 1-MY28-15/350 eli-m-f77c30692f5797c3142bae25 | 1-MY28-6/120 eli-m-2b5af1fdf3ef6506c410213f | 1-VY11-3/120 eli-m-0c6d85689685cd73a18c0514 | 1-VY11-6/120 eli-m-43e525fac9c6d83c47074b19 | 1-VY13-3/120 eli-m-417d43ee5ae9583d3a6dd511 | 1-VY13-6/120 eli-m-4ac4f0a78ee0284bf44ec74a | 1-VY15-3/120 eli-m-befd6049251fa2159b75eeba | 1-VY15-6/120 eli-m-bc1beafc143670fb8225948f | 1-VY16-3/120 eli-m-f82b85c544c6f9c00fbb0ed2 | 1-VY16-6/120 eli-m-46789241f80df39ea0eaa744 | 1-VY17-3/120 eli-m-c48954560b317817cbc2e8d1 | 1-VY17-6/120 eli-m-fc26cc18e6fcfd0af4806f7d | 1-VY18-3/120 eli-m-44fa944afdce61840672107f | 1-VY18-6/120 eli-m-1d2b5ab1ceded2c74cf7a1f7 | 1-VY41-3/120 eli-m-8d5af8834c36b59737daf57f | 1-VY41-3/350 eli-m-21e7f8c5cdcce25f8c530ef8 | 1-VY41-6/120 eli-m-23df7f3fff4374a26f3610eb | 1-VY41-6/350 eli-m-ec7677788dbcd7a43a7030f2 | 1-VY43-3/120 eli-m-3b862a0944bd5a07a75e8c4e | 1-VY43-3/350 eli-m-dee58de19a4741996db8681b | 1-VY43-6/120 eli-m-2f27b164c5852388d0eb2d54 | 1-VY43-6/350 eli-m-b65cca38fa05631921108781 | 1-VY45-3/120 eli-m-e60cfb8963056859ed2c4146 | 1-VY45-3/350 eli-m-a48bd19a92ee288a0261dad5 | 1-VY45-6/120 eli-m-21c3c1d65c33630f092f6a4d | 1-VY45-6/350 eli-m-c29bf126a4939c9c3b17f3b0 | 1-VY46-3/120 eli-m-fb88738f4afe222a5bdd05c0 | 1-VY46-3/350 eli-m-b2205663c404e68fadba9665 | 1-VY46-6/120 eli-m-e773dbef5e5c51ee337cf422 | 1-VY46-6/350 eli-m-bd4e2c33bb6a8ae68097506a | 1-VY47-3/120 eli-m-7e89b80c0dad65ce0024073e | 1-VY47-3/350 eli-m-f0dc108b13381e65756655b3 | 1-VY47-6/120 eli-m-bf56e0d0e3b4168f4d8f9276 | 1-VY47-6/350 eli-m-65f0850932064035631ed300 | 1-VY48-3/120 eli-m-6c5bd53ab1c718672be7e26c | 1-VY48-3/350 eli-m-c1f7f93db68573e251991da0 | 1-VY48-6/120 eli-m-7b3498d2a64a6a6b9b472051 | 1-VY48-6/350 eli-m-f57ecada6409feb0cf564fea |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| התנגדות נומינלית של מדיד | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω | 120 Ω | 350 Ω |
| פרטי ממשק ואות לפי המקור | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown |
| חיבור באמצעות לשוניות הלחמה או כבל | Leads | Leads | Leads | Leads | Leads | Leads | Leads | LS 7 | Leads | LS 7 | LS 5 | Leads | LS 5/7 | Leads | Leads | Leads | Leads | LS 5/7 | LS 5/7 | Leads | Leads | Leads | Leads | LS 5/7 | Integrated solder tabs | LS7 | Integrated solder tabs | Integrated solder tabs | Integrated solder tabs | LS7 | Integrated solder tabs | Integrated solder tabs | LS7 | Integrated solder tabs | Integrated solder tabs | LS4 | Integrated solder tabs | LS7 | LS4 | Integrated solder tabs | LS7 | LS7 | LS4 | Integrated solder tabs | LS7 | LS7 | LS4 | Integrated solder tabs |
| מתח עירור מרבי | 13 V | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | 6 V | 12 V | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | 3.5 V | 6 V | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| בסיס הגדרת חזרתיות | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. |

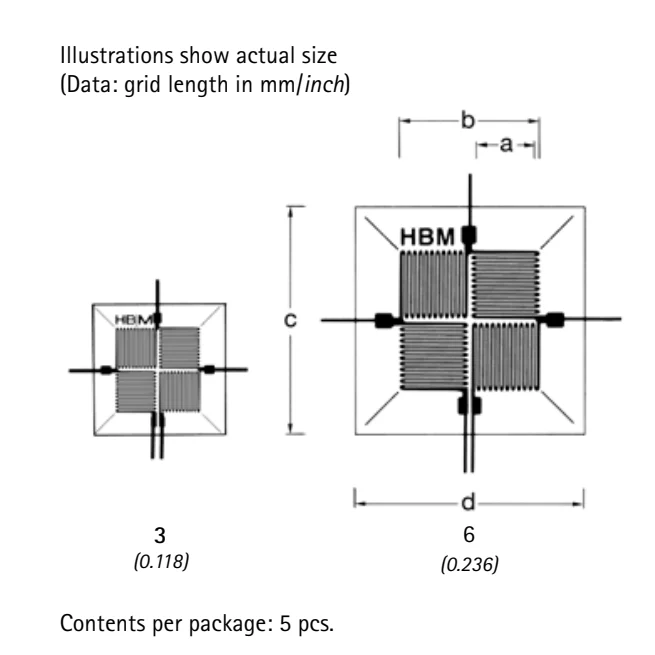

| גאומטריה | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | Diaphragm rosette | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | 0°/90° T full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge | Shear/torsion full bridge |
| מידה לפי סימון בשרטוט | 17 mm | לא צוין | לא צוין | לא צוין | 17 mm | 6 mm | 15 mm | 6 mm | 17 mm | 6 mm | 15 mm | 7.3 mm | 13.5 mm | 23 mm | לא צוין | לא צוין | 7 mm | 6 mm | 3 mm | 23 mm | 3 mm | 6 mm | 7 mm | 23 mm | 3 mm | 3 mm | לא צוין | לא צוין | לא צוין | 9.800000000000001 mm | לא צוין | לא צוין | 10 mm | 10 mm | 18 mm | 17 mm | 1.3 mm | 1.3 mm | 6 mm | 2.7 mm | 1.3 mm | 9.800000000000001 mm | 17 mm | 2.7 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 6 mm |
| רוחב רשת מדיד | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 7 mm | 14 mm | 7 mm | 14 mm | 7 mm | 14 mm | 7 mm | 14 mm | 7 mm | 14 mm | 7 mm | 14 mm | 1.3 mm | 1.3 mm | 2.7 mm | 2.7 mm | 1.3 mm | 1.3 mm | 2.7 mm | 2.7 mm | 1.3 mm | 1.3 mm | 2.7 mm | 2.7 mm | 1.3 mm | 1.3 mm | 2.7 mm | 2.7 mm | 1.3 mm | 1.3 mm | 2.7 mm | 2.7 mm | 1.3 mm | 1.3 mm | 2.7 mm | 2.7 mm |
| אורך רשת מדיד | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 15 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 3 mm | 6 mm | 6 mm | 3 mm | 3 mm | 6 mm | 6 mm | 3 mm | 3 mm | 6 mm | 6 mm | 3 mm | 3 mm | 6 mm | 6 mm | 3 mm | 3 mm | 6 mm | 6 mm | 3 mm | 3 mm | 6 mm | 6 mm |
| מספר יחידות באריזה | 5 | לא צוין | לא צוין | לא צוין | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | לא צוין | לא צוין | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | לא צוין | לא צוין | לא צוין | 5 | לא צוין | לא צוין | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| בסיס הגדרת לינאריות | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. |
| נתון טכני לפי גודל ובסיס במקור | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Leads; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Full bridge circuit; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Integrated solder tabs; Bondable |
| אורך נשא המדיד | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 18 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 18 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 18 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 18 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 18 mm | 9.800000000000001 mm | 9.800000000000001 mm | 18 mm | 18 mm |
| רוחב נשא המדיד | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 17 mm | 7.3 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 13.5 mm | 23 mm | 10 mm | 10 mm | 17 mm | 17 mm | 10 mm | 10 mm | 17 mm | 17 mm | 10 mm | 10 mm | 17 mm | 17 mm | 10 mm | 10 mm | 17 mm | 17 mm | 10 mm | 10 mm | 17 mm | 17 mm | 10 mm | 10 mm | 17 mm | 17 mm |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
