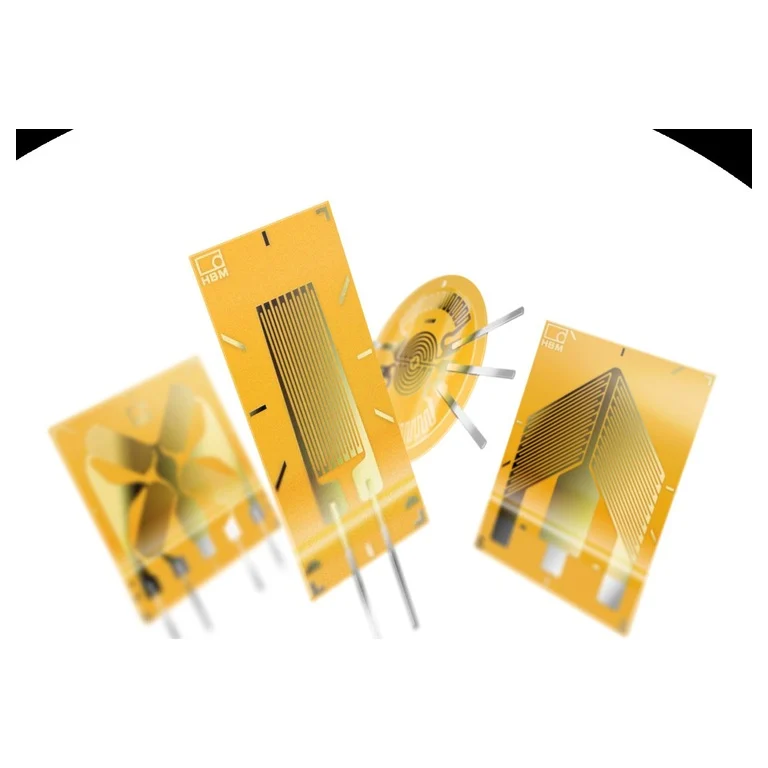

DY (Double linear) עיבור (מעוות)
DY (Double linear) — חיישנים ומכשירי מדידה של HBK בתחום עיבור (מעוות).
לאתר של HBK (נפתח בלשונית חדשה)
מפרט טכני משותף לסדרה
תכונות שיש לכל דגם בסדרה. מה שמשתנה בין הדגמים מופיע בטבלת הדגמים שלמטה.
טווח על פני הדגמים
הטווח שמכסים דגמי הסדרה יחד – לא הטווח של כל דגם.
| רוחב נשא המדיד | 6–9.4 mm |
|---|---|
| רוחב רשת מדיד | 1.8–6 mm |

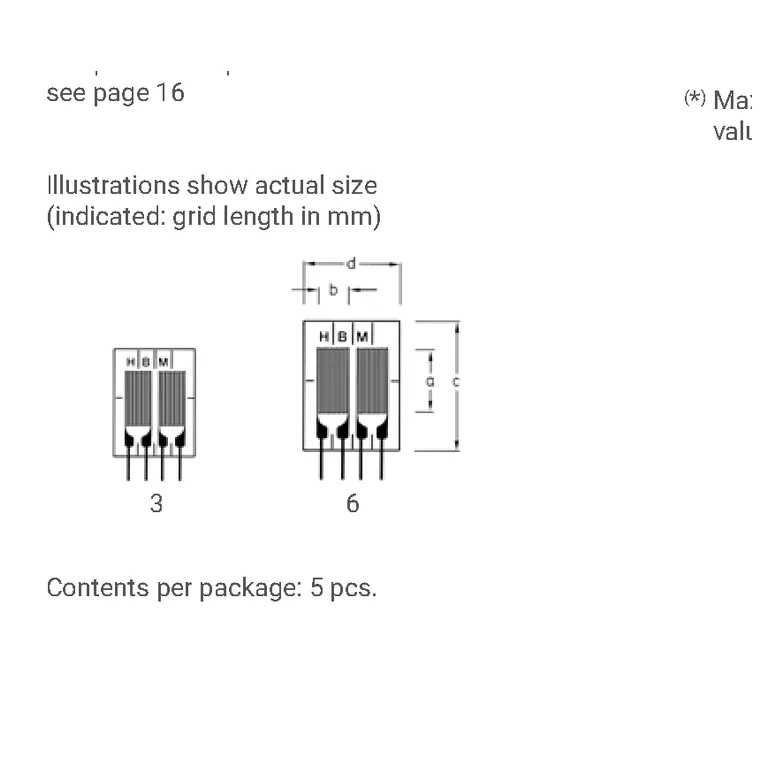

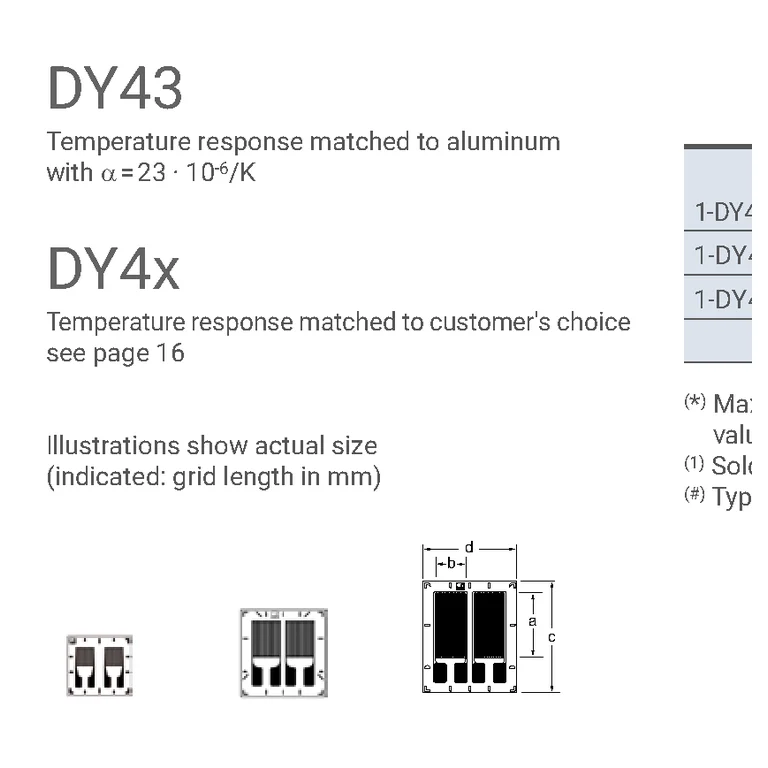

| מידה לפי סימון בשרטוט | 2.7–12.5 mm |
| אורך נשא המדיד | 5.5–12.5 mm |
| מתח עירור מרבי | 5–14 V |
| אורך רשת מדיד | 1.5–6 mm |
הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.
| פרמטר | 1-DY11-3/350 eli-m-101efeced6ade06b4a385243 | 1-DY11-6/350 eli-m-74d1a2075a372143d2fe1a45 | 1-DY11-6/350ZE eli-m-d624f115cf32c247a06574a1 | 1-DY13-3/350 eli-m-60e250e0dfbe997944dd70e5 | 1-DY13-6/350 eli-m-df4b7db2485573ed38d58dc9 | 1-DY15-3/350 eli-m-ef1731de1a246bca084a9aae | 1-DY15-6/350 eli-m-d143e288866665f39bb4a3a8 | 1-DY16-3/350 eli-m-f9a56aa8087cdbb34de0a0f8 | 1-DY16-6/350 eli-m-eea94cf5bb9455e9fd43dc53 | 1-DY17-3/350 eli-m-217918875769472c67c92975 | 1-DY17-6/350 eli-m-4393249b360b84975fb21ead | 1-DY18-3/350 eli-m-73151c5301dc2d396a5b3cf4 | 1-DY18-6/350 eli-m-dd3ffded5dfe5da5c9dbf57d | 1-DY41-1.5/350 eli-m-8181a8c810472a2715e3fade | 1-DY41-3/350 eli-m-e291f8bcaa383f08960a493a | 1-DY41-6/350 eli-m-1edf53dd2be4da779d145692 | 1-DY43-1.5/350 eli-m-4e86f1ca41b11431b9714f38 | 1-DY43-3/350 eli-m-55d1addcacb92ee57d67c5e0 | 1-DY43-6/350 eli-m-5a12cf666e8a6aca97c22f25 | 1-DY45-1.5/350 eli-m-75ef35955bc150357872bb34 | 1-DY45-3/350 eli-m-043992a6b2114a77f5522a70 | 1-DY45-6/350 eli-m-8586488e0d864b9cb0a8ac30 | 1-DY46-3/350 eli-m-1e39a5204814f34210700877 | 1-DY46-6/350 eli-m-f3bc6df250f68dca1847221f | 1-DY47-3/350 eli-m-49c7f10980e8dcfcfbf8c62d | 1-DY47-6/350 eli-m-0fc1894c7b3953f81c0baa55 | 1-DY48-3/350 eli-m-a1b10909a2f49ce288b5e470 | 1-DY48-6/350 eli-m-395795c9984b48c882b36aa8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| התנגדות נומינלית של מדיד | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω |
| חיבור באמצעות לשוניות הלחמה או כבל | LS 7 | LS 7 | Pre-wired (TPE-insulated ribbon cable) | LS 7 | LS 7 | Leads | Leads | Leads | Leads | Leads | Leads | Leads | LS 7 | Integrated solder tabs | Integrated solder tabs | Integrated solder tabs | Integrated solder tabs | LS 7 | Integrated solder tabs | LS 7 | LS 7 | LS 7 | LS 7 | Integrated solder tabs | Integrated solder tabs | LS 7 | Integrated solder tabs | LS 7 |
| רוחב נשא המדיד | 8 mm | 9.4 mm | 9 mm | 8 mm | 9.4 mm | 8 mm | 9.4 mm | 8 mm | 9.4 mm | 8 mm | 9.4 mm | 8 mm | 9.4 mm | 6 mm | 8 mm | 9 mm | 6 mm | 8 mm | 9 mm | 6 mm | 8 mm | 9 mm | 8 mm | 9 mm | 8 mm | 9 mm | 8 mm | 9 mm |
| פרטי ממשק ואות לפי המקור | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown |
| נתון טכני לפי גודל ובסיס במקור | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Leads; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Aluminium (23 ppm/K; 12.8 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Austenitic steel (16 ppm/K; 8.9 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Silica / composite (0,5 ppm/K; 0.3 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Titanium / gray cast iron (9 ppm/K; 5.0 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Integrated solder tabs; Bondable | Strain gauge; Double linear; Constantan (ca 2.0); Standard (up to 200°C); Plastic (65 ppm/K; 36.1 ppm/°F); Integrated solder tabs; Bondable |
| רוחב רשת מדיד | 2.7 mm | 3.2 mm | 3.2 mm | 2.7 mm | 3.2 mm | 2.7 mm | 3.2 mm | 2.7 mm | 3.2 mm | 2.7 mm | 3.2 mm | 2.7 mm | 3.2 mm | 1.8 mm | 6 mm | 3.2 mm | 1.8 mm | 6 mm | 3.2 mm | 1.8 mm | 6 mm | 3.2 mm | 6 mm | 3.2 mm | 6 mm | 3.2 mm | 6 mm | 3.2 mm |
| בסיס הגדרת לינאריות | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. |
| מידה לפי סימון בשרטוט | 8 mm | 12.5 mm | לא צוין | 8 mm | 3.2 mm | 8 mm | 3.2 mm | 2.7 mm | 12.5 mm | 3 mm | 6 mm | 8 mm | 9.4 mm | 5.5 mm | 2.7 mm | 6 mm | לא צוין | 8.199999999999999 mm | לא צוין | 6 mm | 8.199999999999999 mm | 6 mm | 3 mm | 10.7 mm | 8.199999999999999 mm | 10.7 mm | 8.199999999999999 mm | 6 mm |
| גאומטריה | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear | Double linear |
| אורך נשא המדיד | 9 mm | 12.5 mm | 10.7 mm | 9 mm | 12.5 mm | 9 mm | 12.5 mm | 9 mm | 12.5 mm | 9 mm | 12.5 mm | 9 mm | 12.5 mm | 5.5 mm | 8.199999999999999 mm | 10.7 mm | 5.5 mm | 8.199999999999999 mm | 10.7 mm | 5.5 mm | 8.199999999999999 mm | 10.7 mm | 8.199999999999999 mm | 10.7 mm | 8.199999999999999 mm | 10.7 mm | 8.199999999999999 mm | 10.7 mm |
| בסיס הגדרת חזרתיות | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. |
| מתח עירור מרבי | 9 V | 14 V | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | 5 V | 8.5 V | 13 V | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| מספר יחידות באריזה | 5 | 5 | לא צוין | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | לא צוין | 5 | לא צוין | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| אורך רשת מדיד | 3 mm | 6 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 1.5 mm | 3 mm | 6 mm | 1.5 mm | 3 mm | 6 mm | 1.5 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm | 3 mm | 6 mm |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
