PACEline CLP כוח
PACEline CLP — חיישנים ומכשירי מדידה של HBK בתחום כוח.
הסדרה באתר HBK (נפתח בלשונית חדשה)
הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.
| פרמטר | 1-CLP/14KN eli-m-f77967334cbe21696a552100 | 1-CLP/14KN-0.5M eli-m-d3fe9836aeb62b2a31013e59 | 1-CLP/26KN eli-m-e71514f976d3b6aa04956b77 | 1-CLP/26KN-0.5M eli-m-c648919a3244d9491ba3286a | 1-CLP/36KN eli-m-f17281fe099f8a5bc681a384 | 1-CLP/36KN-0.5M eli-m-268822c258fb3453e26e2266 | 1-CLP/3KN eli-m-7c9a549a120a1ab392199e6c | 1-CLP/3KN-0.5M eli-m-c4cdb7fc404cd28149ab810a | 1-CLP/62KN eli-m-412630df07b2dc42a6309b34 | 1-CLP/62KN-0.5M eli-m-df2cd1dbe94f97fe9fe874ad | 1-CLP/7KN eli-m-38d864aad1a03cb9bac68cca | 1-CLP/7KN-0.5M eli-m-eebcfbed50ceefcb2e43e991 | 1-CLP/80KN eli-m-28017a31f4d558e83cdcc64f | 1-CLP/80KN-0.5M eli-m-3752ec518ce3c143b043e2cb | PACEline CLP-14kN eli-m-adc4c4dd0b78962ef7b2cdc5 | PACEline CLP-26kN eli-m-fa754b1113768a9702cfe050 | PACEline CLP-36kN eli-m-a5abf2316912e7f1c573f86e | PACEline CLP-3kN eli-m-a4c115a3afa3de2ae451616c | PACEline CLP-62kN eli-m-45de6c3397f002a48263bf0a | PACEline CLP-7kN eli-m-6778a928343790c823044335 | PACEline CLP-80kN eli-m-7951de3168fed25c898e7e1e |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| טווח כוח | 0–14000 N | 0–14000 N | 0–26000 N | 0–26000 N | 0–36000 N | 0–36000 N | 0–3000 N | 0–3000 N | 0–62000 N | 0–62000 N | 0–7000 N | 0–7000 N | 0–80000 N | 0–80000 N | 0–14000 N | 0–26000 N | 0–36000 N | 0–3000 N | 0–62000 N | 0–7000 N | 0–80000 N |
| נתון טכני לפי גודל ובסיס במקור | Maximum capacity (nominal load): 3.15 klbf; Height (without accessories): 0.138 in; Diameter (without cable or plug): 0.307086 in | Maximum capacity (nominal load): 3.15 klbf; Height (without accessories): 0.138 in; Diameter (without cable or plug): 0.307086 in | Maximum capacity (nominal load): 5.85 klbf; Height (without accessories): 0.138 in; Diameter (without cable or plug): 0.385826 in | Maximum capacity (nominal load): 5.85 klbf; Height (without accessories): 0.138 in; Diameter (without cable or plug): 0.385826 in | Maximum capacity (nominal load): 89 klbf; Height (without accessories): 0.138 in; Diameter (without cable or plug): 0.464566 in | Maximum capacity (nominal load): 89 klbf; Height (without accessories): 0.138 in; Diameter (without cable or plug): 0.464566 in | Maximum capacity (nominal load): 674 lbf; Height (without accessories): 0.118 in; Diameter (without cable or plug): 0.1594485 in | Maximum capacity (nominal load): 674 lbf; Height (without accessories): 0.118 in; Diameter (without cable or plug): 0.1594485 in | Maximum capacity (nominal load): 13.9 klbf; Height (without accessories): 0.157 in; Diameter (without cable or plug): 0.543306 in | Maximum capacity (nominal load): 13.9 klbf; Height (without accessories): 0.157 in; Diameter (without cable or plug): 0.543306 in | Maximum capacity (nominal load): 15.7 klbf; Height (without accessories): 0.118 in; Diameter (without cable or plug): 0.216535 in | Maximum capacity (nominal load): 1.57 klbf; Height (without accessories): 0.118 in; Diameter (without cable or plug): 0.216535 in | Maximum capacity (nominal load): 18 klbf; Height (without accessories): 0.197 in; Diameter (without cable or plug): 0.622046 in | Maximum capacity (nominal load): 18 klbf; Height (without accessories): 0.197 in; Diameter (without cable or plug): 0.622046 in | 14 kN rated capacity = 14 kN (1.4276 t mass equivalent at standard gravity); compression | 26 kN rated capacity = 26 kN (2.6513 t mass equivalent at standard gravity); compression | 36 kN rated capacity = 36 kN (3.671 t mass equivalent at standard gravity); compression | 3 kN rated capacity = 3 kN (305.9149 kg mass equivalent at standard gravity); compression | 62 kN rated capacity = 62 kN (6.3222 t mass equivalent at standard gravity); compression | 7 kN rated capacity = 7 kN (713.8013 kg mass equivalent at standard gravity); compression | 80 kN rated capacity = 80 kN (8.1577 t mass equivalent at standard gravity); compression |
| בסיס קצב הדגימה | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | The selected HBK conditioner, filter and DAQ determine the digital sample rate. | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted | Charge-amplifier filter and output configuration determine the usable bandwidth; no unsupported digital rate is asserted |
| בסיס הגדרת חזרתיות | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| בסיס הגדרת לינאריות | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | HBK accuracy class: 1; retained as a class, not converted to overall installed-chain accuracy. | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| פרטי ממשק ואות לפי המקור | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Analog 0-10V | Analog 0-10V | Analog 0-10V | Digital I/O | Analog 0-10V | Analog 0-10V | Digital I/O |
| מגבלת קצב בגלל קריאת המערכת | True | True | True | True | True | True | True | True | True | True | True | True | True | True | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| טווח כוח | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| ממשקים מובנים | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | ethernet | ethernet | profinet | ethernet | ethercat | profinet | profinet |
| דיוק (% FSO) | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | 1 % | 1 % | 1 % | 1 % | 1 % | 1 % | 1 % |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
שאלות נפוצות
תשובות לשאלות הנפוצות ביותר על המוצרים והשירותים שלנו

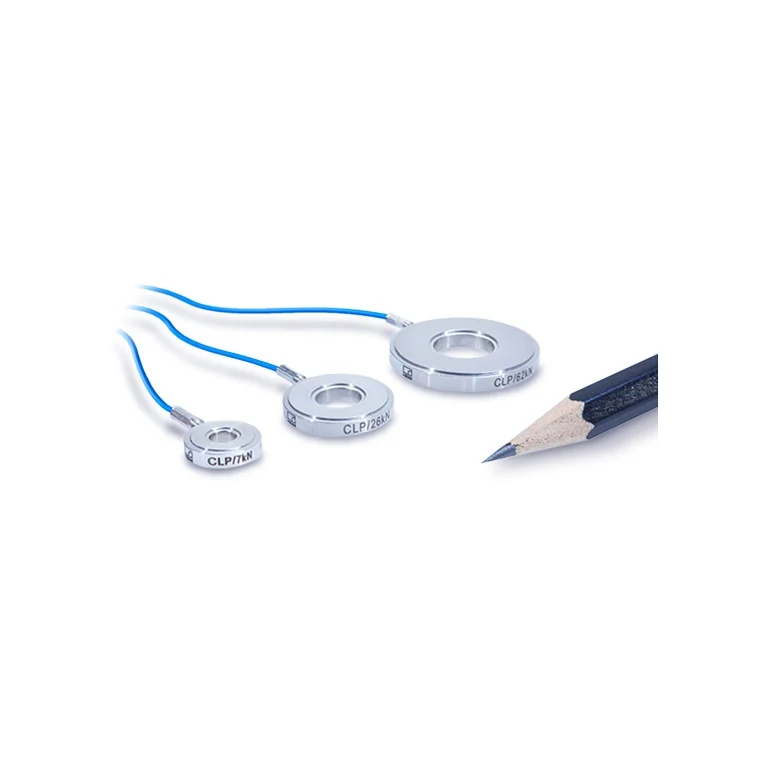

CLP היא טבעת כוח פיאזואלקטרית שטוחה לשילוב במבנה מכני. היא מודדת באמצעות אות מטען, ולכן נדרשת שרשרת קריאה מתאימה.

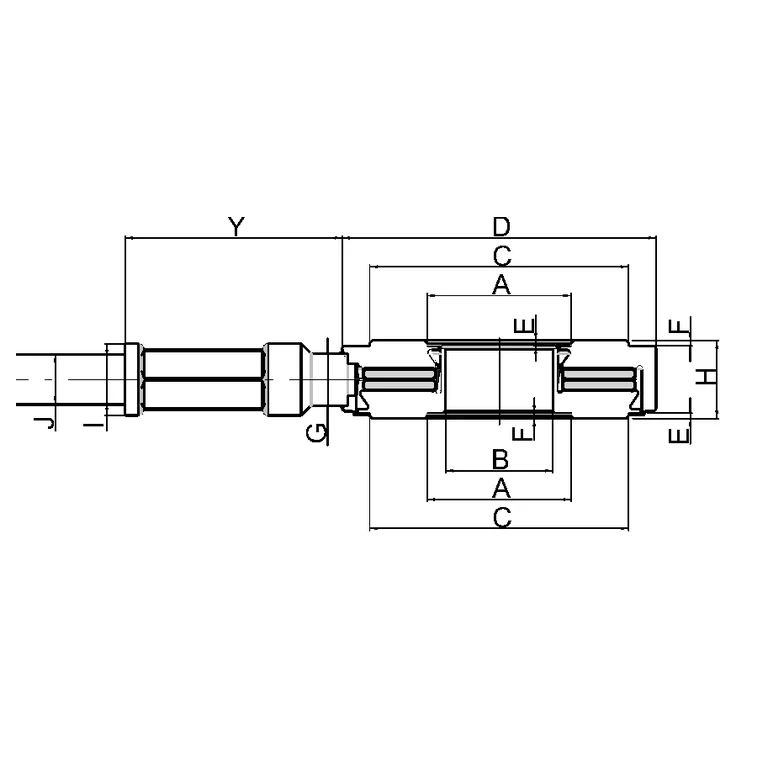

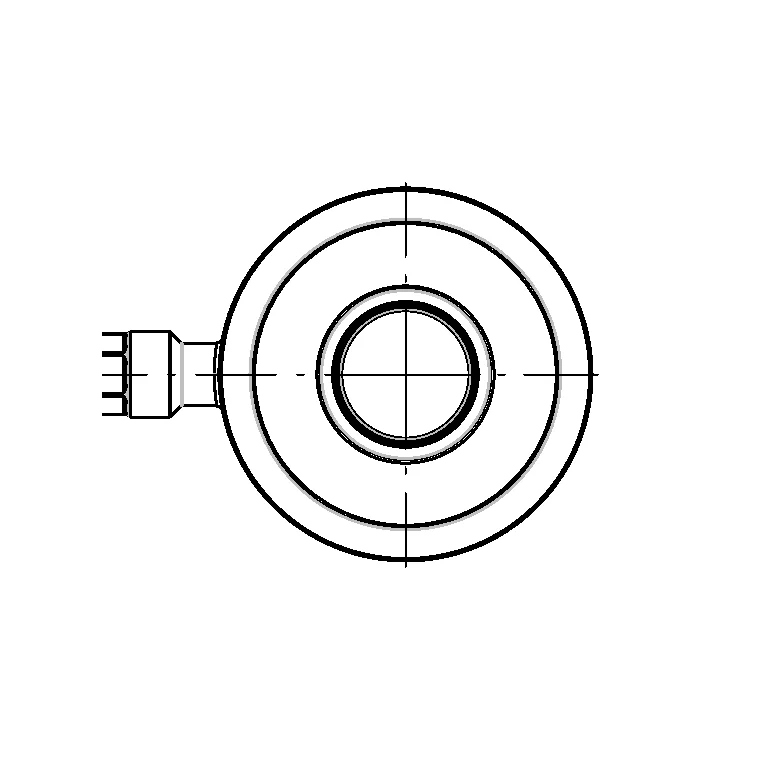

לא. גרסאות 3–80 kN מופיעות בעמודות ובשרטוטים נפרדים. גם הגובה וקוטרי הטבעת תלויים בכוח הנומינלי.
הערת היצרן דורשת כיול בתנאי ההתקנה. הרגישות הטיפוסית בטבלה אינה מחליפה את השפעת חלוקת הכוח במבנה המורכב.
הערת הטבלה מתנה את הנתון בדריכה מוקדמת של לפחות 20% מהכוח הנומינלי. יש לשמור את תנאי הדריכה יחד עם נתון הלינאריות.
הטבלה מציינת IP65 וכבל מטען משולב עם מחבר 10-32 UNF. יש להתאים גם את החיבור בצד מגבר המטען ואת תנאי ההתקנה.
