Prewired עיבור (מעוות)
Prewired — חיישנים ומכשירי מדידה של HBK בתחום עיבור (מעוות).
לאתר של HBK (נפתח בלשונית חדשה)
מפרט טכני משותף לסדרה
תכונות שיש לכל דגם בסדרה. מה שמשתנה בין הדגמים מופיע בטבלת הדגמים שלמטה.
טווח על פני הדגמים
הטווח שמכסים דגמי הסדרה יחד – לא הטווח של כל דגם.
| התנגדות נומינלית של מדיד | 350 Ω |
|---|---|
| רוחב נשא המדיד | 4.7–22.9 mm |
| אורך נשא המדיד | 6.6–18 mm |
| אורך רשת מדיד | 1.5–10 mm |
| רוחב רשת מדיד | 1.2–6.5 mm |

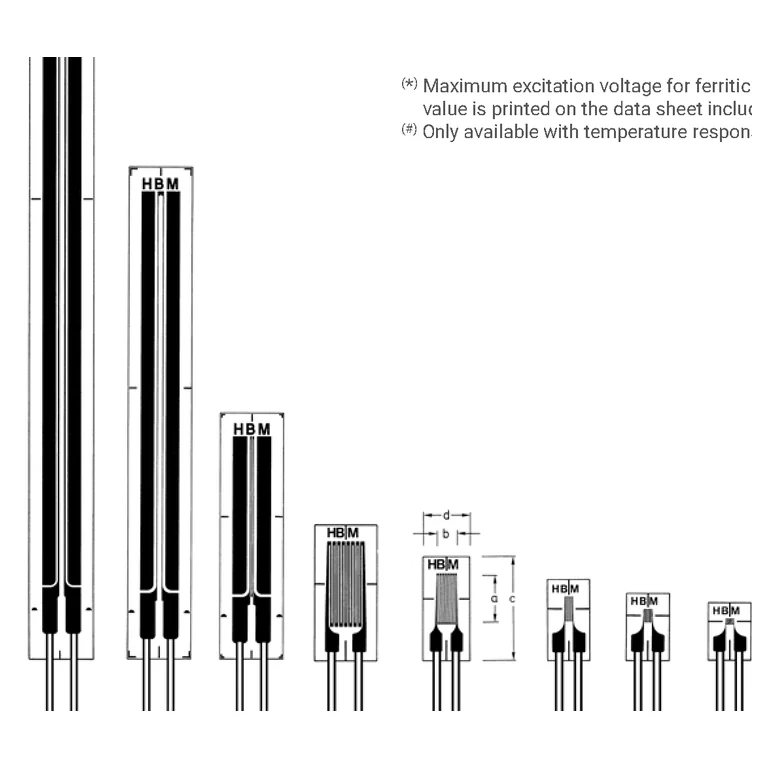

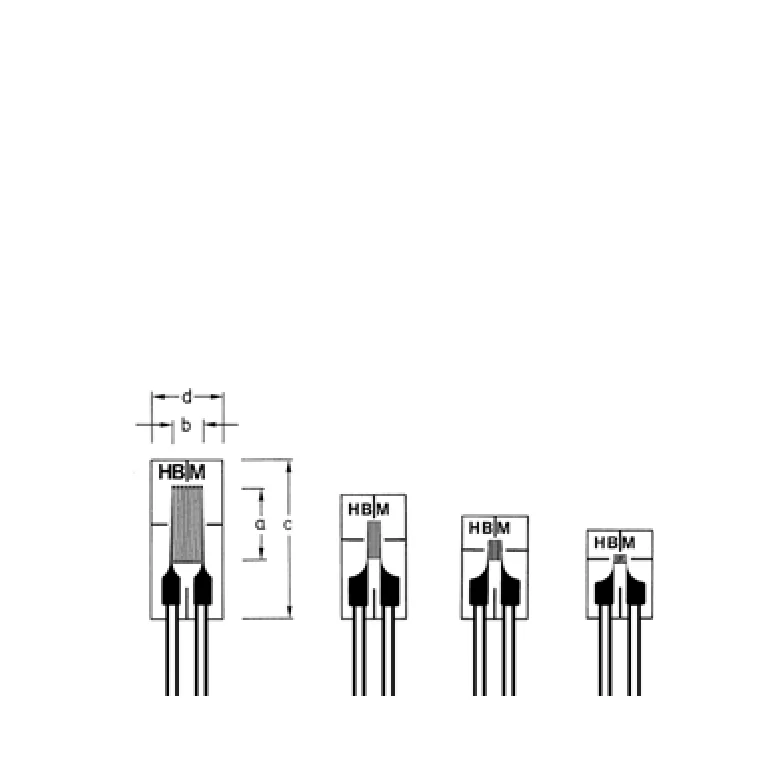

הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.
| פרמטר | 1-LY41-1.5/120V1 eli-m-f4018abccaeac654b2433138 | 1-LY41-10/350V1 eli-m-1faa7c6ed10157640a40d18c | 1-LY41-3/350V3 eli-m-c9ab9258cfceee9846e53b58 | 1-LY41-6/120V1 eli-m-27cff264b2ebaae58511a6c0 | 1-LY41-6/350V1 eli-m-7d7b3c162c2210b28e321072 | 1-LY41-6/350V3 eli-m-7aa92bdb6dfbadbe2aff8141 | 1-LY91-1.5/350V3 eli-m-650a906ac28ab63ff0166e2e | 1-RY81-3/350V1 eli-m-3d47446abc8221f7530fb077 | 1-RY81-6/350V1 eli-m-f5ea2b90d047dea1a2823972 | 1-TY11-6/350V1 eli-m-ba8cdbf0f7fed642a9f79703 | 1-XY41-6/350H3 eli-m-f837dd77dfb2b013ddd3d88f |
|---|---|---|---|---|---|---|---|---|---|---|---|
| התנגדות נומינלית של מדיד | 120 Ω | 350 Ω | 350 Ω | 120 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω | 350 Ω |
| חיבור באמצעות לשוניות הלחמה או כבל | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) | Pre-wired (TPE-insulated ribbon cable) |
| רוחב נשא המדיד | 5 mm | 8 mm | 5.9 mm | 5.9 mm | 5.9 mm | 5.9 mm | 4.7 mm | 14.6 mm | 22.9 mm | 18 mm | 12.2 mm |
| בסיס הגדרת לינאריות | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. |
| נתון טכני לפי גודל ובסיס במקור | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; 3-grid rosette; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; 3-grid rosette; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; T rosette; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable | Strain gauge; Shear/torsion; Constantan (ca 2.0); Standard (up to 200°C); Ferritic steel (10.8 ppm/K; 6.0 ppm/°F); Pre-wired (TPE-insulated ribbon cable); Bondable |
| תחום טמפרטורה לפי המקור | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) | Standard (up to 200°C) |
| בסיס הגדרת חזרתיות | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. |
| גאומטריה | Linear | Linear | Linear | Linear | Linear | Linear | Linear | 3-grid rosette | 3-grid rosette | T rosette | Shear/torsion |
| אורך נשא המדיד | 7 mm | 18 mm | 10.9 mm | 13.9 mm | 13.9 mm | 13.9 mm | 6.6 mm | 9.699999999999999 mm | 13.1 mm | 12 mm | 16 mm |
| אורך רשת מדיד | 1.5 mm | 10 mm | 3 mm | 6 mm | 6 mm | 6 mm | 1.5 mm | 3 mm | 6 mm | 6 mm | 6 mm |
| פרטי ממשק ואות לפי המקור | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown |
| רוחב רשת מדיד | 1.2 mm | 5 mm | 2.5 mm | 2.7 mm | 2.8 mm | 2.8 mm | 2 mm | 1.2 mm | 2.8 mm | 6.5 mm | 6 mm |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
