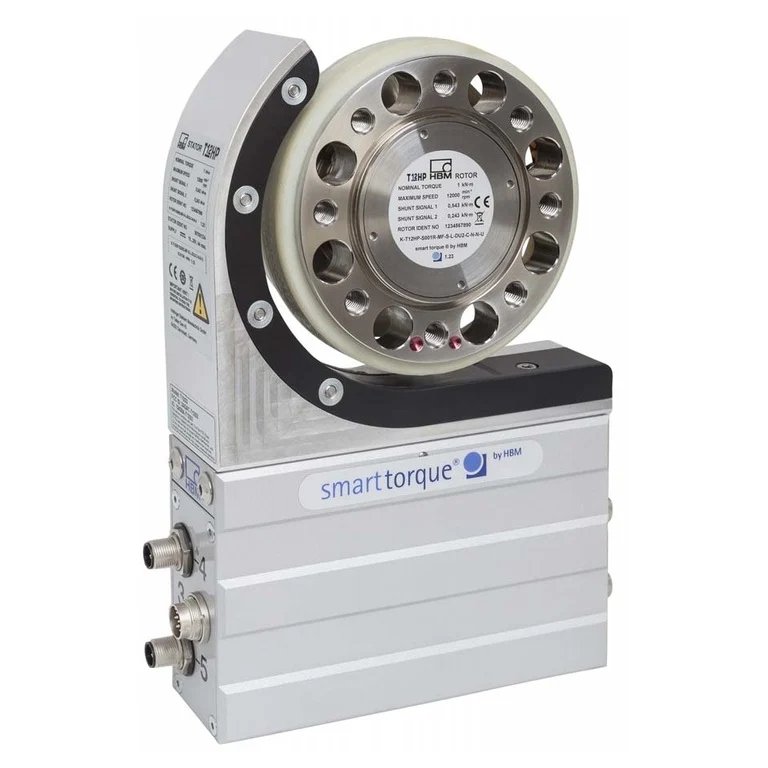

מפרט טכני משותף לסדרה
תכונות שיש לכל דגם בסדרה. מה שמשתנה בין הדגמים מופיע בטבלת הדגמים שלמטה.
טווח על פני הדגמים
הטווח שמכסים דגמי הסדרה יחד – לא הטווח של כל דגם.
| דיוק (% FSO) | 0.007–0.02 % |
|---|---|
| טווח מומנט | -10000–10000 Nm |
| קצב דגימת ADC | 1000–20000 samples/s |
| מהירות סיבוב מרבית | 12000–22000 rpm |

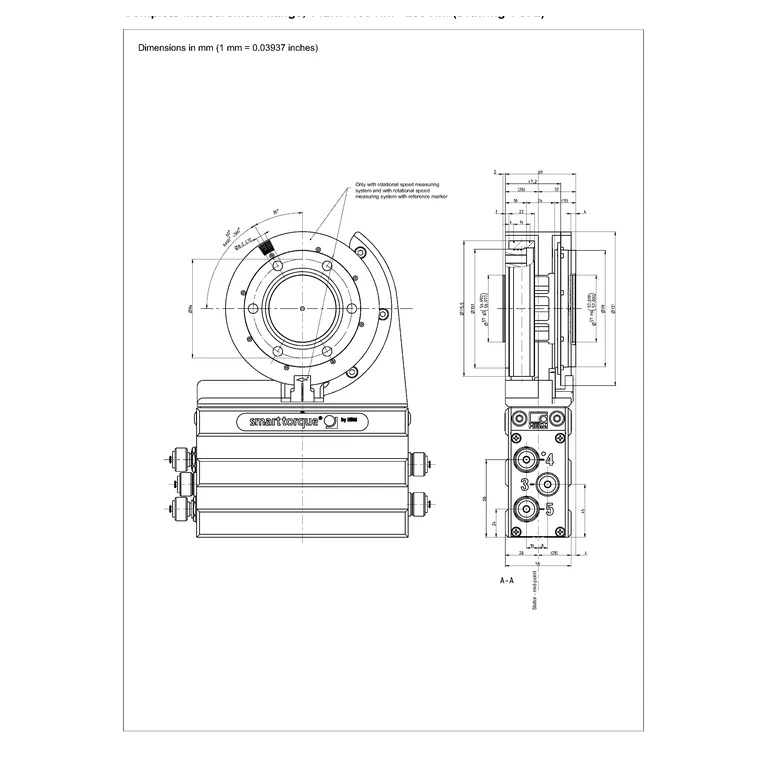

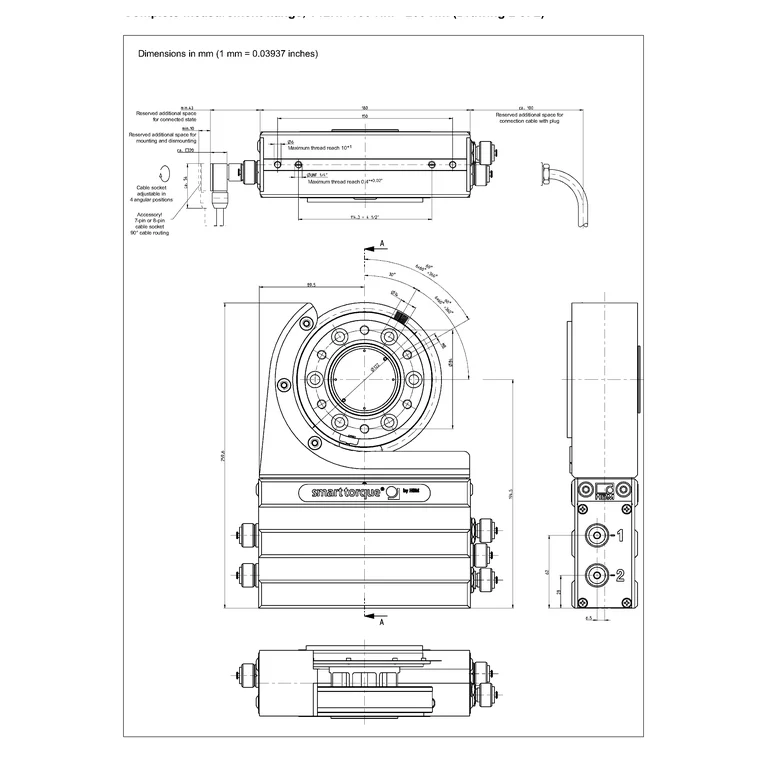

הדגמים בסדרה
עמודה לכל דגם: מה שונה בין דגמי הסדרה.
| פרמטר | T12HP eli-m-a8f869d8890bf426af3b339e | T12HP-100Nm eli-m-a514ae3358bc6543035471ef | T12HP-10kNm eli-m-44e05fc6c411dcf5b84becdb | T12HP-1kNm eli-m-b82613aebd36f82f2a41b97a | T12HP-200Nm eli-m-2fc7e2008cd9d938e12f39c0 | T12HP-2kNm eli-m-32b1b195fe24dd502bee71b6 | T12HP-3kNm eli-m-5dd74083ee3baf47ee6621c8 | T12HP-500Nm eli-m-2fd6f1fb68eea44e428b21c0 | T12HP-5kNm eli-m-f01a8c0c5cfd37d8c233ef60 |
|---|---|---|---|---|---|---|---|---|---|
| פרטי ממשק ואות לפי המקור | Unknown | Digital I/O | Digital I/O | Digital I/O | Digital I/O | Digital I/O | Digital I/O | Digital I/O | Digital I/O |
| בסיס קצב הדגימה | Use the exact configured transducer and HBK interface datasheets. | TIM40 bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM-EC bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM40 bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM40 bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM40 bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM40 bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM-EC bus cycle; transducer bandwidth and selected filters remain limiting factors | TIM-EC bus cycle; transducer bandwidth and selected filters remain limiting factors |
| בסיס הגדרת לינאריות | Family-level fallback: no unsupported scalar accuracy is added. | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." | "Non-linearity including hysteresis, with output mode and maximum-torque band preserved in precisionData." |
| דיוק (% FSO) | 0.007 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % |
| מגבלת קצב בגלל קריאת המערכת | False | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין | לא צוין |
| יכולת מדידת מהירות סיבוב | True | True | True | True | True | True | True | True | True |
| בסיס הגדרת חזרתיות | Family-level fallback: verify the ordered model and calibration certificate. | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." | "Relative standard deviation of repeatability/reproducibility per DIN 1319, relative to output-signal variation; mode-specific values retained in precisionData." |
| נתון טכני לפי גודל ובסיס במקור | Configurable family; exact public ordering-code table not exposed on the current HBK page. | ±100 Nm rated torque; rotating installation; maximum 22,000 rpm | ±10 kNm rated torque; rotating installation; maximum 12,000 rpm | ±1 kNm rated torque; rotating installation; maximum 20,000 rpm | ±200 Nm rated torque; rotating installation; maximum 22,000 rpm | ±2 kNm rated torque; rotating installation; maximum 18,000 rpm | ±3 kNm rated torque; rotating installation; maximum 18,000 rpm | ±500 Nm rated torque; rotating installation; maximum 20,000 rpm | ±5 kNm rated torque; rotating installation; maximum 12,000 rpm |
| דרגת אטימות IP | לא צוין | ip54 | ip54 | ip54 | ip54 | ip54 | ip54 | ip54 | ip54 |
| טווח מומנט | לא צוין | -100–100 Nm | -10000–10000 Nm | -1000–1000 Nm | -200–200 Nm | -2000–2000 Nm | -3000–3000 Nm | -500–500 Nm | -5000–5000 Nm |
| קצב דגימת ADC | לא צוין | 20000 samples/s | 1000 samples/s | 4000 samples/s | 20000 samples/s | 4000 samples/s | 20000 samples/s | 20000 samples/s | 20000 samples/s |
| מהירות סיבוב מרבית | לא צוין | 22000 rpm | 12000 rpm | 20000 rpm | 22000 rpm | 18000 rpm | 18000 rpm | 20000 rpm | 12000 rpm |
| טמפרטורת עבודה | לא צוין | -10–70 °C | -10–70 °C | -10–70 °C | -10–70 °C | -10–70 °C | -10–70 °C | -10–70 °C | -10–70 °C |
| ממשקים מובנים | לא צוין | profinet | ethernet | ethercat | ethercat | ethernet | ethercat | profinet | ethercat |
| סטטוס | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל | פעיל |
