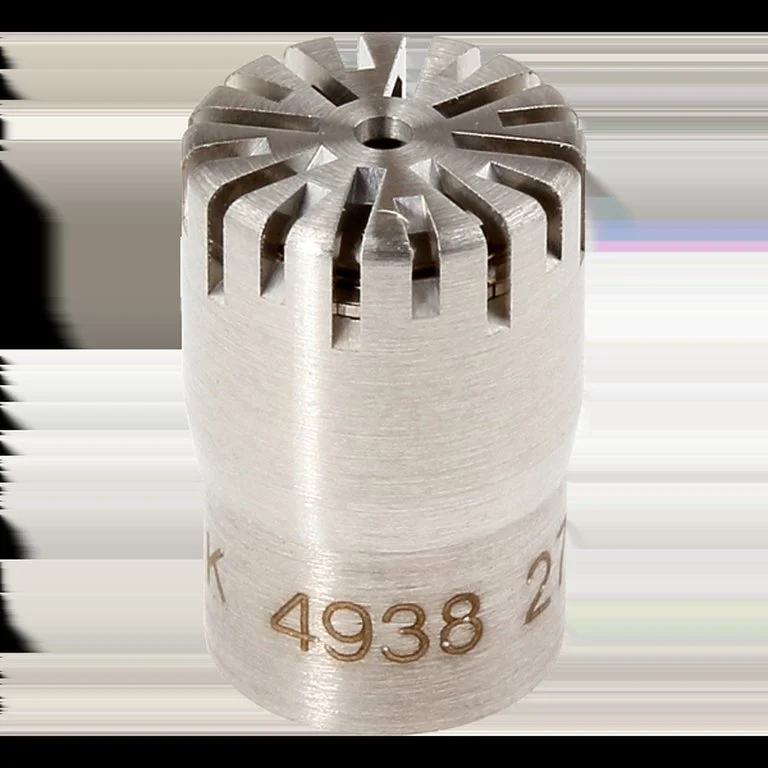

4938-L-002
From the B&K measurement microphone sets + LAN-XI series
B&K measurement microphone sets + LAN-XI: sensors and measurement devices by HBK for microphones.
- Frequency response
- 4–70000 Hz
- Number of measurement channels
- 4
- Microphone sensitivity
- 1.4 mV/Pa
- Maximum SPL
- 172 dB SPL
Technical specification
Every engineering figure, laid out to scan quickly
| Microphone diameter | 0.25 inch |
|---|---|
| Sound field | v_f6023b0503dfda71 |
| Microphone polarization | v_5550f80de667506a |
| Microphone sensitivity | 1.4 mV/Pa |
| Maximum SPL | 172 dB SPL |
| Frequency response | 4–70000 Hz |
| source_acoustic_standard | IEC 61094 measurement microphone; system class depends on selected set and analyzer configuration |
| Interfaces | ethernet |
| Number of measurement channels | 4 |
| Operating temperature | -20–80 °C |
| ADC sampling rate | 131072 samples/s |
| Microphone polarization | v_21835f14f2c3d730 |
| Number of measurement channels | 3 |
| Number of measurement channels | 6 |
| ADC sampling rate | 524288 samples/s |
| Number of measurement channels | 2 |
| ADC sampling rate | 262144 samples/s |
| Number of measurement channels | 1 |
