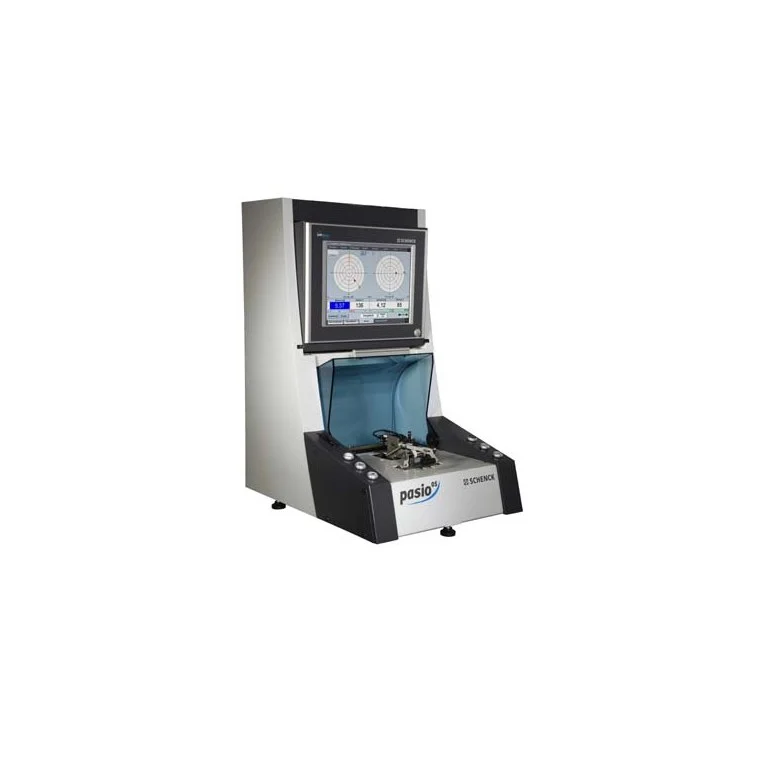

Pasio 05
From the Pasio series
Pasio: system by Schenck RoTec for balancing systems.
Download the datasheet (opens in a new tab) Visit the Schenck RoTec site (opens in a new tab)
Technical specification
Every engineering figure, laid out to scan quickly
| Interfaces | ethernet |
|---|---|
| Maximum rotor diameter | 60 mm |
| source_linearity_basis | Use the residual-unbalance and uncertainty specification of the quoted rotor / tooling configuration. |
| source_balancing_system_class | Universal horizontal |
| source_repeatability_basis | Verify repeatability with the production rotor, fixture, correction process and operating-speed sequence. |
| interface_specification | Digital I/O |
| Minimum residual unbalance | 0.02 g·mm |
| quantity_specification | 0.5 kg maximum rotor; 60 mm maximum rotor diameter; 0.02 gmm minimum achievable residual unbalance per plane. |
| source_sampling_rate_basis | Balancing measurement speed and cycle are configured for the rotor and machine; no unsupported universal sample rate is inferred. |
| Maximum rotor mass | 0.5 kg |
