capaNCDT CSH Capacitive
capaNCDT CSH: sensors and measurement devices by Micro-Epsilon for capacitive.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| active_area_published_size | 2.6–8.1 mm |
|---|---|
| Resolution | 0.00006–0.024 µm |
| Linearity | 0.08–1.2 µm |
| Minimum target diameter | 7–11 mm |
| Measuring window | 0–1 mm |
| Measuring range | 0.1–2 mm |
| Number of measurement channels | 4–8 |
| Weight | 0.03–0.038 kg |
| Recommended target diameter | 7–17 mm |
| Accuracy | 0.08–1.2 µm |
| ADC sampling rate | 2000–20000 samples/s |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | CSH02-CAm1,4 eli-m-eafe1c070b031cf2b92b7d79 | CSH05-CAm1,4 eli-m-afdfb7be94436d477c9ed314 | CSH1-CAm1,4 eli-m-29aef958f40d7ffacea4baac | CSH1,2-CAm1,4 eli-m-7bea07f52c070d3390a4b0ec | CSH2-CAm1,4 eli-m-7a5f07930ef3c1801855ca65 |
|---|---|---|---|---|---|
| quantity_specification | 0-0.2 mm model-level measuring interval | 0-0.5 mm model-level measuring interval | 0-1 mm model-level measuring interval | 0-1.2 mm model-level measuring interval | 0-2 mm model-level measuring interval |
| active_area_published_size | 2.6 mm | 4.1 mm | 5.7 mm | 6.3 mm | 8.1 mm |
| Resolution | 6.000000000000001e-05 µm | 0.00015 µm | 0.02 µm | 0.024 µm | 0.0005999999999999999 µm |
| Linearity | 0.08 µm | 0.35 µm | 0.6 µm | 1.2 µm | 0.6 µm |
| Start of measuring range | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm |
| Minimum target diameter | 7 mm | Not specified | 11 mm | 11 mm | Not specified |
| Measuring window | 0–0.2 mm | 0–1 mm | 0–0.5 mm | 0–0.6 mm | 0–1 mm |
| Measuring range | 0.1 mm | 1 mm | 2 mm | 1.2 mm | 2 mm |
| Interfaces | ethernet | ethernet | ethernet | ethercat | ethernet |
| source_temperature_stability_um_per_k | -0.01 µm/K | 0.01 µm/K | 0.056 µm/K | 0.052 µm/K | 0.152 µm/K |
| interface_specification | 4-20mA | Analog 0-10V | Analog 0-10V | Analog 0-10V | Analog 0-10V |
| Number of measurement channels | 4 | 4 | 4 | 8 | 8 |
| Operating temperature | -50–200 °C | -50–200 °C | -50–200 °C | -50–200 °C | -50–200 °C |
| source_linearity_basis | Official sensor linearity from the current capaNCDT catalog; total measuring-channel linearity also includes the DT6530 (2-channel base) + DL6530 controller contribution. | Official sensor linearity from the current capaNCDT catalog; total measuring-channel linearity also includes the DT6530 (8-channel base) + DL6510 + CPM6011 controller contribution. | Official sensor linearity from the current capaNCDT catalog; total measuring-channel linearity also includes the DT6110 controller contribution. | Official sensor linearity from the current capaNCDT catalog; total measuring-channel linearity also includes the DT6120 controller contribution. | Official sensor linearity from the current capaNCDT catalog; total measuring-channel linearity also includes the DT6238 + DL6228 controller contribution. |
| source_sampling_rate_basis | DL6530: 8.5 kHz bandwidth in the official maximum-two-channel DT6530 base system | DT6110/IP: IP68 single-channel controller with 1 kHz bandwidth | DL6220: 5 kHz bandwidth; DT6220 digital rate 3.906 kSamples/s | DL6530: 8.5 kHz bandwidth in the official maximum-two-channel DT6530 base system | DL6222: 20 kHz bandwidth; DT6222 digital rate 3.906 kSamples/s |
| Storage temperature | -50–200 °C | -50–200 °C | -50–200 °C | -50–200 °C | -50–200 °C |
| Protection class (DIN EN 60529) | ip40 | ip40 | ip40 | ip40 | ip40 |
| Weight | 0.03 kg | 0.03 kg | 0.033 kg | 0.033 kg | 0.038 kg |
| Recommended target diameter | 7 mm | 7 mm | 11 mm | 11 mm | 17 mm |
| source_recommended_mounting_position_mm | 3 mm from sensor face, opposite measuring direction | 3 mm from sensor face, opposite measuring direction | 3 mm from sensor face, opposite measuring direction | 3 mm from sensor face, opposite measuring direction | 3 mm from sensor face, opposite measuring direction |
| Contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact |
| Accuracy | 0.08 µm | 0.35 µm | 0.6 µm | 1.2 µm | 0.6 µm |
| ADC sampling rate | 5000 samples/s | 20000 samples/s | 5000 samples/s | 2000 samples/s | 2000 samples/s |
| Status | Active | Active | Active | Active | Active |
| Datasheet | PDF — CSH02-CAm1,4 (opens in a new tab) | PDF — CSH05-CAm1,4 (opens in a new tab) | PDF — CSH1-CAm1,4 (opens in a new tab) | PDF — CSH1,2-CAm1,4 (opens in a new tab) | PDF — CSH2-CAm1,4 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services

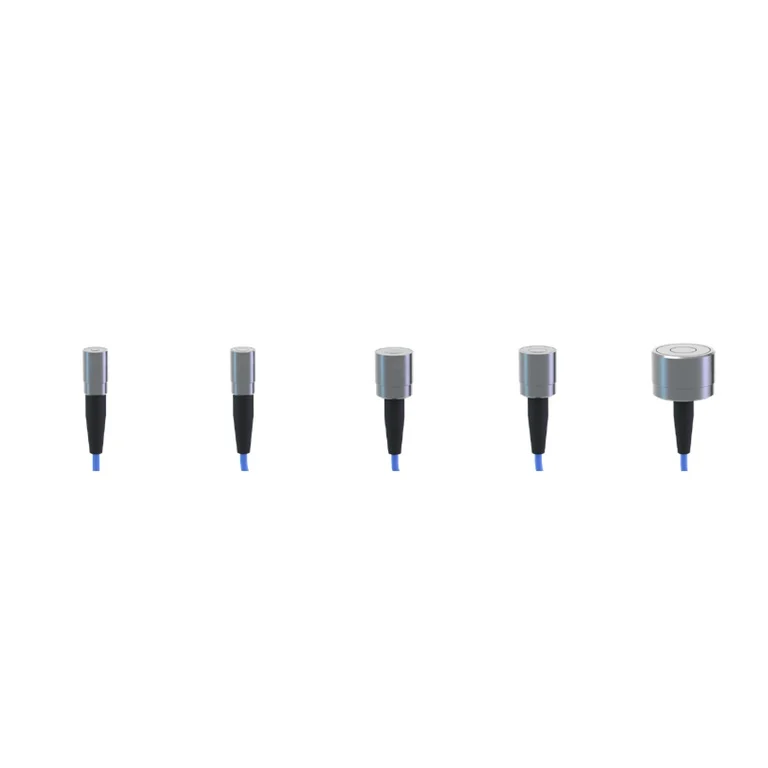

CSH is a high-precision cylindrical capacitive head with an integral cable. Separate models specify nominal spans of 0.2, 0.5, 1, 1.2 and 2 mm.

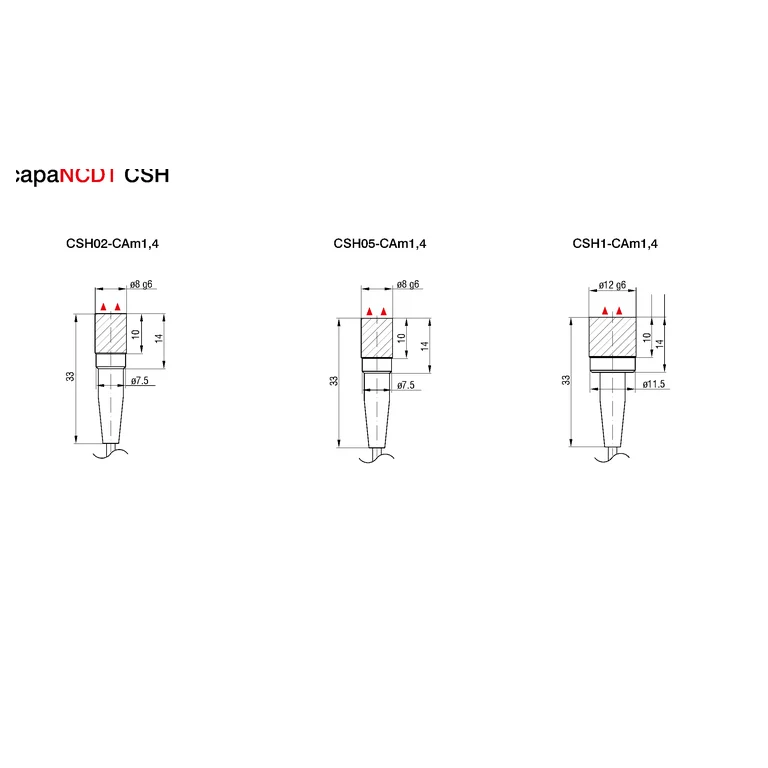

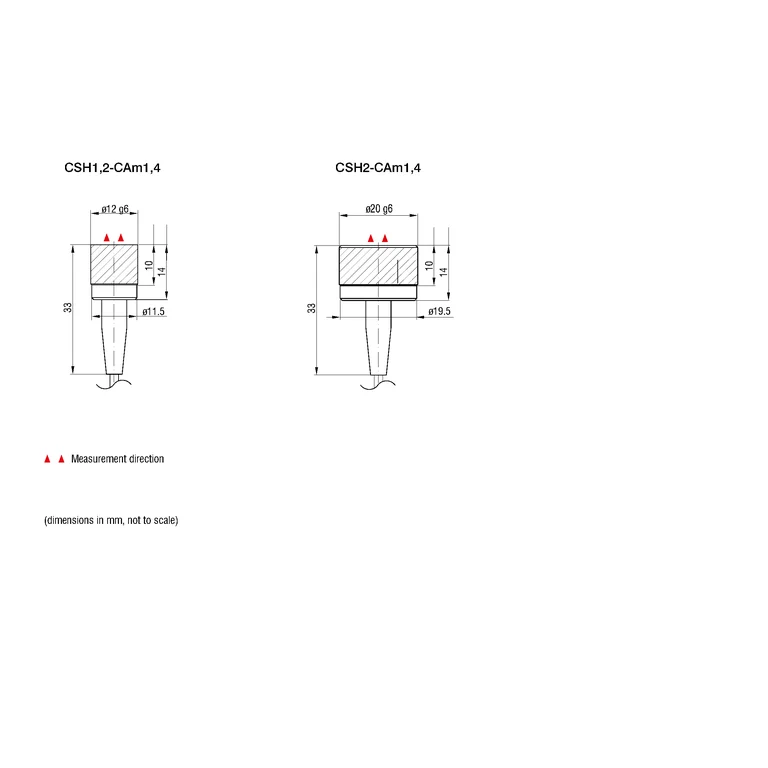

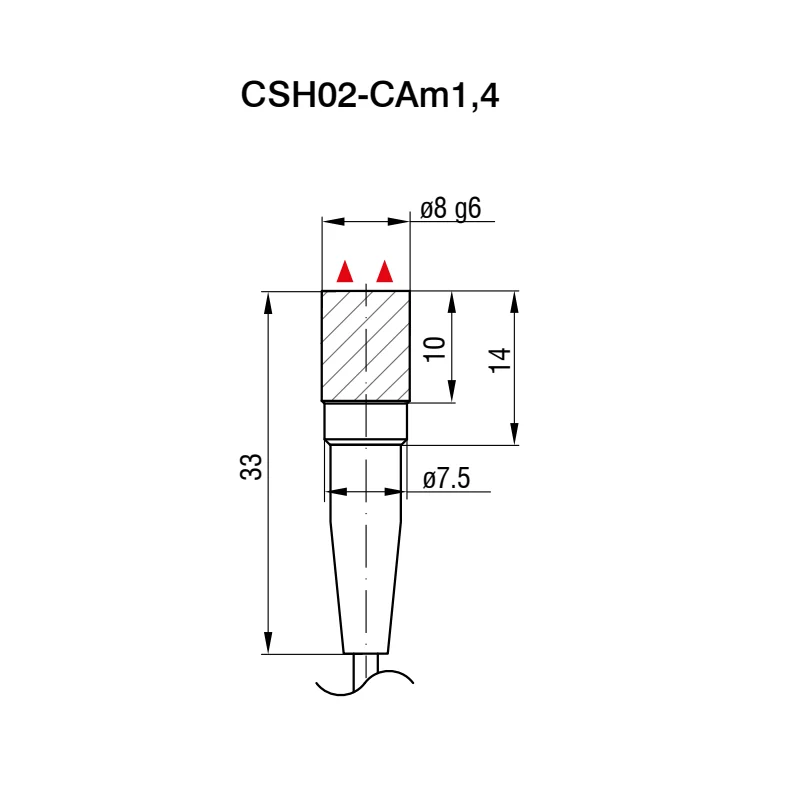

Specifications reference the recommended circumferential clamping position, tabulated 3 mm behind the measuring face. Follow the model installation instructions.
The series table specifies an integral standard 1.4 m cable with a type B connector. Extensions or length changes must suit the measurement configuration.
Add head and controller linearity contributions as instructed. Check resolution and target size separately under their specified test conditions.
Housing diameter does not establish suitability. Each span has a recommended flat-target size separate from active measuring area.
