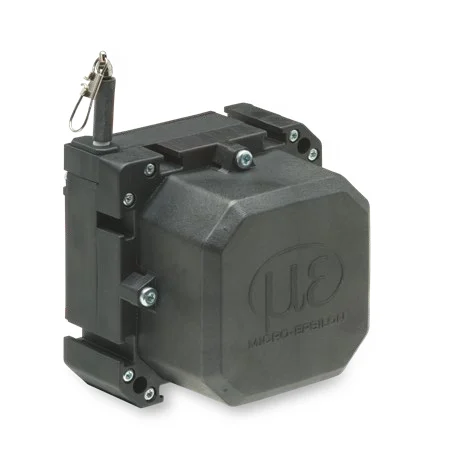

wireSENSOR K100
wireSENSOR K100 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 1500–8000 mm |
|---|---|
| Linearity (% FSO) | 0.15–0.35 % |
| Linearity | 2250–28000 µm |
| output_resolution_length | 370–1950 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WPS-1500-K100-CR-I eli-m-a32add5da564146fd76e512b | WPS-1500-K100-CR-P eli-m-fa5ad420d25197ddd20932f7 | WPS-1500-K100-CR-U eli-m-fc79f3efae4dbb17080deef1 | WPS-1500-K100-SR12-CO eli-m-65b54c0697ae3e1a587307e4 | WPS-2500-K100-CR-I eli-m-bf56b1d170ade4519d322176 | WPS-2500-K100-CR-P eli-m-eadcd96b01b1b06be9cbbc07 | WPS-2500-K100-CR-U eli-m-59bed01bdb7d32f76ac8fa1b | WPS-2500-K100-SR12-CO eli-m-7dfbf5fd76354891b6ba659d | WPS-3500-K100-CR-I eli-m-15f89571df20b6ae6f77205d | WPS-3500-K100-CR-P eli-m-853684954cf0645a2ed1126e | WPS-3500-K100-CR-U eli-m-05c86ff2295f440272a156f4 | WPS-3500-K100-SR12-CO eli-m-4cb693f9a9723c6af950ecd4 | WPS-5000-K100-CR-I eli-m-e4e77afcf3016caa18d7b354 | WPS-5000-K100-CR-P eli-m-15118f05ec53609173315ce1 | WPS-5000-K100-CR-U eli-m-d150e93410162f21eb812f1f | WPS-5000-K100-SR12-CO eli-m-ad38e3e86557aafff6a261a8 | WPS-8000-K100-CR-I eli-m-a3f0bdbd285e8109bef36656 | WPS-8000-K100-CR-P eli-m-a6b659edd2feb650f3b99378 | WPS-8000-K100-CR-U eli-m-b744ecc7413ab1ff495fbbdd | WPS-8000-K100-SR12-CO eli-m-180eb2a12b4b5edad07909ad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range | 1500 mm | 1500 mm | 1500 mm | 1500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 3500 mm | 3500 mm | 3500 mm | 3500 mm | 5000 mm | 5000 mm | 5000 mm | 5000 mm | 8000 mm | 8000 mm | 8000 mm | 8000 mm |
| Selected electrical output | current | potentiometer | voltage | canopen | current | potentiometer | voltage | canopen | current | potentiometer | voltage | canopen | current | potentiometer | voltage | canopen | current | potentiometer | voltage | canopen |
| Selected configuration options | range=1500 mm; suffix=CR-I; output=Analog current | range=1500 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=1500 mm; suffix=CR-U; output=Analog voltage | range=1500 mm; suffix=SR12-CO; output=CANopen | range=2500 mm; suffix=CR-I; output=Analog current | range=2500 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=2500 mm; suffix=CR-U; output=Analog voltage | range=2500 mm; suffix=SR12-CO; output=CANopen | range=3500 mm; suffix=CR-I; output=Analog current | range=3500 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=3500 mm; suffix=CR-U; output=Analog voltage | range=3500 mm; suffix=SR12-CO; output=CANopen | range=5000 mm; suffix=CR-I; output=Analog current | range=5000 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=5000 mm; suffix=CR-U; output=Analog voltage | range=5000 mm; suffix=SR12-CO; output=CANopen | range=8000 mm; suffix=CR-I; output=Analog current | range=8000 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=8000 mm; suffix=CR-U; output=Analog voltage | range=8000 mm; suffix=SR12-CO; output=CANopen |
| Selected connection | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial |
| Protection class (DIN EN 60529) | IP67 | IP67 | IP67 | IP67; For plug versions only when connected | IP67 | IP67 | IP67 | IP67; For plug versions only when connected | IP67 | IP67 | IP67 | IP67; For plug versions only when connected | IP67 | IP67 | IP67 | IP67; For plug versions only when connected | IP67 | IP67 | IP67 | IP67; For plug versions only when connected |
| Linearity (% FSO) | 0.15 % | 0.15 % | 0.15 % | 0.15 % | 0.2 % | 0.2 % | 0.2 % | 0.2 % | 0.25 % | 0.25 % | 0.25 % | 0.25 % | 0.25 % | 0.25 % | 0.25 % | 0.25 % | 0.35 % | 0.35 % | 0.35 % | 0.35 % |
| Linearity | 2250 µm | 2250 µm | 2250 µm | 2250 µm | 5000 µm | 5000 µm | 5000 µm | 5000 µm | 8750 µm | 8750 µm | 8750 µm | 8750 µm | 12500 µm | 12500 µm | 12500 µm | 12500 µm | 28000 µm | 28000 µm | 28000 µm | 28000 µm |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 10 N; Wire retraction force (min.): approx. 2 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.61 mm); Wire mounting: Wire clip; Installation: Through-bores Ø 6.4 mm and mounting nuts (for M6) on the sensor housing (optional: for series applications with additional M12 socket); Temperature range / Storage: -40 … +85 °C; Temperature range / Operation: -40 … +85 °C; Shock (DIN EN 60068-2-27): 50 g / 8 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 5 g / 10 … 150 Hz in 3 axes and 20 cycles each; Weight: approx. 500 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 10 N; Wire retraction force (min.): approx. 2 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.61 mm); Wire mounting: Wire clip; Installation: Through-bores Ø 6.4 mm and mounting nuts (for M6) on the sensor housing (optional: for series applications with additional M12 socket); Temperature range / Storage: -40 … +85 °C; Temperature range / Operation: -40 … +85 °C; Shock (DIN EN 60068-2-27): 50 g / 8 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 5 g / 10 … 150 Hz in 3 axes and 20 cycles each; Weight: approx. 500 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 10 N; Wire retraction force (min.): approx. 2 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.61 mm); Wire mounting: Wire clip; Installation: Through-bores Ø 6.4 mm and mounting nuts (for M6) on the sensor housing (optional: for series applications with additional M12 socket); Temperature range / Storage: -40 … +85 °C; Temperature range / Operation: -40 … +85 °C; Shock (DIN EN 60068-2-27): 50 g / 8 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 5 g / 10 … 150 Hz in 3 axes and 20 cycles each; Weight: approx. 500 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 10 N; Wire retraction force (min.): approx. 2 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Through-bores Ø 6.4 mm and mounting nuts (for M6) on the sensor housing (optional: for series applications with additional M12 socket); Temperature range / Storage: -40 … +85 °C; Temperature range / Operation: -40 … +85 °C; Shock (DIN EN 60068-2-27): 50 g / 8 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 5 g / 10 … 150 Hz in 3 axes and 20 cycles each; Weight: approx. 500 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 10 N; Wire retraction force (min.): approx. 1.5 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Through-bores Ø 6.4 mm and mounting nuts (for M6) on the sensor housing (optional: for series applications with additional M12 socket); Temperature range / Storage: -40 … +85 °C; Temperature range / Operation: -40 … +85 °C; Shock (DIN EN 60068-2-27): 50 g / 8 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 5 g / 10 … 150 Hz in 3 axes and 20 cycles each; Weight: approx. 500 g |
| Ordering options and constraints | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published | SAE J1939 and loop-through connector on request, page 31; no complete ordering suffix published |
| Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact |
| Interfaces | Not specified | Not specified | Not specified | canopen | Not specified | Not specified | Not specified | canopen | Not specified | Not specified | Not specified | canopen | Not specified | Not specified | Not specified | canopen | Not specified | Not specified | Not specified | canopen |
| output_resolution_length | Not specified | Not specified | Not specified | 370 µm | Not specified | Not specified | Not specified | 610 µm | Not specified | Not specified | Not specified | 850 µm | Not specified | Not specified | Not specified | 1220 µm | Not specified | Not specified | Not specified | 1950 µm |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — WPS-1500-K100-CR-I (opens in a new tab) | PDF — WPS-1500-K100-CR-P (opens in a new tab) | PDF — WPS-1500-K100-CR-U (opens in a new tab) | PDF — WPS-1500-K100-SR12-CO (opens in a new tab) | PDF — WPS-2500-K100-CR-I (opens in a new tab) | PDF — WPS-2500-K100-CR-P (opens in a new tab) | PDF — WPS-2500-K100-CR-U (opens in a new tab) | PDF — WPS-2500-K100-SR12-CO (opens in a new tab) | PDF — WPS-3500-K100-CR-I (opens in a new tab) | PDF — WPS-3500-K100-CR-P (opens in a new tab) | PDF — WPS-3500-K100-CR-U (opens in a new tab) | PDF — WPS-3500-K100-SR12-CO (opens in a new tab) | PDF — WPS-5000-K100-CR-I (opens in a new tab) | PDF — WPS-5000-K100-CR-P (opens in a new tab) | PDF — WPS-5000-K100-CR-U (opens in a new tab) | PDF — WPS-5000-K100-SR12-CO (opens in a new tab) | PDF — WPS-8000-K100-CR-I (opens in a new tab) | PDF — WPS-8000-K100-CR-P (opens in a new tab) | PDF — WPS-8000-K100-CR-U (opens in a new tab) | PDF — WPS-8000-K100-SR12-CO (opens in a new tab) |
