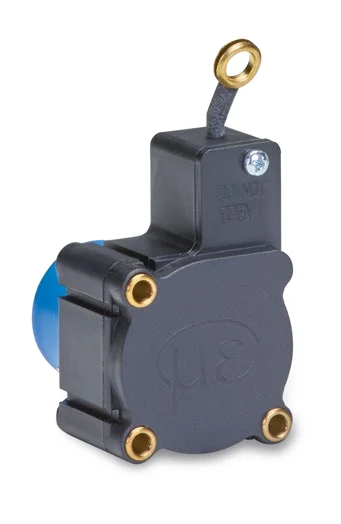

wireSENSOR MK30
wireSENSOR MK30 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 50–750 mm |
|---|---|
| Linearity (% FSO) | 0.05–0.5 % |
| Linearity | 250–1875 µm |
| output_resolution_length | 100–200 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WPS-150-MK30-P25 eli-m-46cf216f0414d3ad84aee699 | WPS-250-MK30-P10 eli-m-f0e234edda56ce63f6aaa7d0 | WPS-250-MK30-P25 eli-m-e6c3b38ba0f5205b061409a7 | WPS-50-MK30-P50 eli-m-0364e4ba089517ec6511f645 | WPS-500-MK30-E eli-m-6aa78b2d04c4fb57d9e96d49 | WPS-500-MK30-E830 eli-m-c2943e15510027fded2d0652 | WPS-500-MK30-P10 eli-m-619f9acd0269af2fb8885257 | WPS-500-MK30-P25 eli-m-b4f6593d17fc7a1768b557a8 | WPS-750-MK30-E eli-m-dd44b753787d630596c0e40e | WPS-750-MK30-E830 eli-m-26ca24b15c4285670641969e | WPS-750-MK30-P10 eli-m-21d4facb6e95be9cc00b2ebe | WPS-750-MK30-P25 eli-m-53d9b69e9e0ac3a5ec854ffe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range | 150 mm | 250 mm | 250 mm | 50 mm | 500 mm | 500 mm | 500 mm | 500 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Selected electrical output | potentiometer | potentiometer | potentiometer | potentiometer | encoder_e | encoder_e830 | potentiometer | potentiometer | encoder_e | encoder_e830 | potentiometer | potentiometer |
| Selected configuration options | range=150 mm; suffix=P25; output=Potentiometer / resistance divider | range=250 mm; suffix=P10; output=Potentiometer / resistance divider | range=250 mm; suffix=P25; output=Potentiometer / resistance divider | range=50 mm; suffix=P50; output=Potentiometer / resistance divider | range=500 mm; suffix=E; output=Incremental encoder E, 5–24 VDC | range=500 mm; suffix=E830; output=Incremental encoder E830, 8–30 VDC | range=500 mm; suffix=P10; output=Potentiometer / resistance divider | range=500 mm; suffix=P25; output=Potentiometer / resistance divider | range=750 mm; suffix=E; output=Incremental encoder E, 5–24 VDC | range=750 mm; suffix=E830; output=Incremental encoder E830, 8–30 VDC | range=750 mm; suffix=P10; output=Potentiometer / resistance divider | range=750 mm; suffix=P25; output=Potentiometer / resistance divider |
| Selected connection | Soldering tags | Soldering tags | Soldering tags | Soldering tags | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Soldering tags | Soldering tags | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Soldering tags | Soldering tags |
| Protection class (DIN EN 60529) | IP20 | IP20 | IP20 | IP20 | IP54 | IP54 | IP20 | IP20 | IP54 | IP54 | IP20 | IP20 |
| Linearity (% FSO) | 0.25 % | 0.1 % | 0.25 % | 0.5 % | 0.05 % | 0.05 % | 0.1 % | 0.25 % | 0.05 % | 0.05 % | 0.1 % | 0.25 % |
| Linearity | 375 µm | 250 µm | 625 µm | 250 µm | 250 µm | 250 µm | 500 µm | 1250 µm | 375 µm | 375 µm | 750 µm | 1875 µm |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 2.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g (incl. cable) | Wire extension force (max.): approx. 2.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g (incl. cable) | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 2.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 45 g | Wire extension force (max.): approx. 2.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g (incl. cable) | Wire extension force (max.): approx. 2.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g (incl. cable) | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 2.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 45 g |
| Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact |
| output_resolution_length | Not specified | Not specified | Not specified | Not specified | 100 µm | 100 µm | Not specified | 150 µm | 150 µm | 150 µm | Not specified | 200 µm |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — WPS-150-MK30-P25 (opens in a new tab) | PDF — WPS-250-MK30-P10 (opens in a new tab) | PDF — WPS-250-MK30-P25 (opens in a new tab) | PDF — WPS-50-MK30-P50 (opens in a new tab) | PDF — WPS-500-MK30-E (opens in a new tab) | PDF — WPS-500-MK30-E830 (opens in a new tab) | PDF — WPS-500-MK30-P10 (opens in a new tab) | PDF — WPS-500-MK30-P25 (opens in a new tab) | PDF — WPS-750-MK30-E (opens in a new tab) | PDF — WPS-750-MK30-E830 (opens in a new tab) | PDF — WPS-750-MK30-P10 (opens in a new tab) | PDF — WPS-750-MK30-P25 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
P50, P25 and P10 identify potentiometer versions with different linearity specifications and model-specific range availability. E and E830 are incremental-encoder versions, not analog voltage or current outputs.
No. MK30-E specifies a 5–24 VDC supply, while MK30-E830 specifies 8–30 VDC. Match the suffix and encoder input to the system requirements.
No. Potentiometer versions specify IP20, while encoder versions specify IP54. Select ingress protection by the complete model and output.
The catalogue specifies approximately 5g maximum wire acceleration, 2.5 N maximum extension force and 1 N minimum retraction force. These are separate from measurement range.
The plastic housing provides mounting holes and grooves. Attach the wire using the specified eyelet and check the installation envelope for the selected range.
