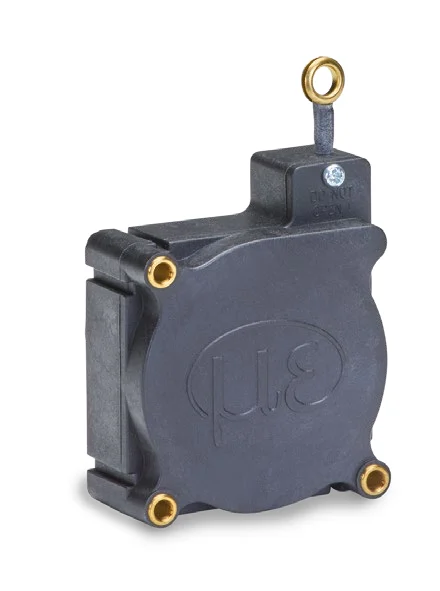

wireSENSOR MK46
wireSENSOR MK46 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 1000–1250 mm |
|---|---|
| Linearity (% FSO) | 0.05–0.25 % |
| Linearity | 625–3125 µm |
| output_resolution_length | 250–400 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WPS-1000-MK46-CR-P10 eli-m-8fcc4431c60c09b490ad63c7 | WPS-1000-MK46-CR-P25 eli-m-52ffff92d6db429e5addbc84 | WPS-1000-MK46-P10 eli-m-5b1d261a4ace7fe99e45c5fc | WPS-1000-MK46-P25 eli-m-0a844a13f5940b9c7bd66fc5 | WPS-1250-MK46-CR-I10 eli-m-e8cfdbfad4dbf0aae32fef48 | WPS-1250-MK46-CR-P10 eli-m-d65f93918ae7ec7dab7d5375 | WPS-1250-MK46-CR-P25 eli-m-5b059be789cfd7ea5e2d50e3 | WPS-1250-MK46-CR-U10 eli-m-a83c6bc85d1eadac02d19124 | WPS-1250-MK46-E eli-m-e92ae21097d466d0da47ed0f | WPS-1250-MK46-E830 eli-m-d0814a9993f26cc35fa7226d | WPS-1250-MK46-P10 eli-m-bdaa027be1cae12aa7558c5a | WPS-1250-MK46-P25 eli-m-acda8a3b6d782ed1bb5b70f4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1250 mm | 1250 mm | 1250 mm | 1250 mm | 1250 mm | 1250 mm | 1250 mm | 1250 mm |
| Selected electrical output | potentiometer | potentiometer | potentiometer | potentiometer | current | potentiometer | potentiometer | voltage | encoder_e | encoder_e830 | potentiometer | potentiometer |
| Selected configuration options | range=1000 mm; suffix=CR-P10; output=Potentiometer / resistance divider | range=1000 mm; suffix=CR-P25; output=Potentiometer / resistance divider | range=1000 mm; suffix=P10; output=Potentiometer / resistance divider | range=1000 mm; suffix=P25; output=Potentiometer / resistance divider | range=1250 mm; suffix=CR-I10; output=Analog current | range=1250 mm; suffix=CR-P10; output=Potentiometer / resistance divider | range=1250 mm; suffix=CR-P25; output=Potentiometer / resistance divider | range=1250 mm; suffix=CR-U10; output=Analog voltage | range=1250 mm; suffix=E; output=Incremental encoder E, 5–24 VDC | range=1250 mm; suffix=E830; output=Incremental encoder E830, 8–30 VDC | range=1250 mm; suffix=P10; output=Potentiometer / resistance divider | range=1250 mm; suffix=P25; output=Potentiometer / resistance divider |
| Selected connection | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Soldering tags | Soldering tags | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Soldering tags | Soldering tags |
| Protection class (DIN EN 60529) | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP54 | IP54 | IP20 | IP20 |
| Linearity (% FSO) | 0.1 % | 0.25 % | 0.1 % | 0.25 % | 0.1 % | 0.1 % | 0.25 % | 0.1 % | 0.05 % | 0.05 % | 0.1 % | 0.25 % |
| Linearity | 1000 µm | 2500 µm | 1000 µm | 2500 µm | 1250 µm | 1250 µm | 3125 µm | 1250 µm | 625 µm | 625 µm | 1250 µm | 3125 µm |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 1.6 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 1.6 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 1.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 1.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 120 g (incl. cable) | Wire extension force (max.): approx. 1.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 120 g (incl. cable) | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 1.5 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.36 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 80 g |
| Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact |
| output_resolution_length | Not specified | 300 µm | Not specified | 300 µm | Not specified | Not specified | 400 µm | Not specified | 250 µm | 250 µm | Not specified | 400 µm |
| Ordering options and constraints | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed | Not specified | Not specified | Not specified | Not specified |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — WPS-1000-MK46-CR-P10 (opens in a new tab) | PDF — WPS-1000-MK46-CR-P25 (opens in a new tab) | PDF — WPS-1000-MK46-P10 (opens in a new tab) | PDF — WPS-1000-MK46-P25 (opens in a new tab) | PDF — WPS-1250-MK46-CR-I10 (opens in a new tab) | PDF — WPS-1250-MK46-CR-P10 (opens in a new tab) | PDF — WPS-1250-MK46-CR-P25 (opens in a new tab) | PDF — WPS-1250-MK46-CR-U10 (opens in a new tab) | PDF — WPS-1250-MK46-E (opens in a new tab) | PDF — WPS-1250-MK46-E830 (opens in a new tab) | PDF — WPS-1250-MK46-P10 (opens in a new tab) | PDF — WPS-1250-MK46-P25 (opens in a new tab) |
