wireSENSOR MK60

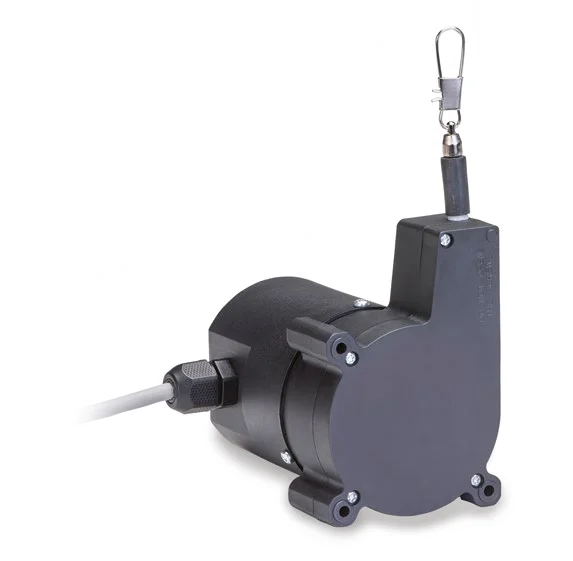

wireSENSOR MK60 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 1500–2400 mm |
|---|---|
| Linearity (% FSO) | 0.05–0.15 % |
| Linearity | 1200–2250 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WPS-1500-MK60-CR-I eli-m-7b511615517566920b0a4cc7 | WPS-1500-MK60-CR-P eli-m-faebabb70c15dba42efbdcd6 | WPS-1500-MK60-CR-U eli-m-0361570fca300537b0affbf5 | WPS-2400-MK60-CR-TTL01 eli-m-50f44678871fe9cc2c0c5e6b | WPS-2400-MK60-CR-TTL02 eli-m-21180cd0e2e2dff7f743828d |
|---|---|---|---|---|---|
| Measuring range | 1500 mm | 1500 mm | 1500 mm | 2400 mm | 2400 mm |
| Selected electrical output | current | potentiometer | voltage | ttl01 | ttl02 |
| Selected configuration options | range=1500 mm; suffix=CR-I; output=Analog current | range=1500 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=1500 mm; suffix=CR-U; output=Analog voltage | range=2400 mm; suffix=CR-TTL01; output=TTL01: A, B, reference | range=2400 mm; suffix=CR-TTL02; output=TTL02: differential A/B, reference |
| Selected connection | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m |
| Protection class (DIN EN 60529) | IP65 | IP65 | IP65 | IP65 | IP65 |
| Linearity (% FSO) | 0.15 % | 0.15 % | 0.15 % | 0.05 % | 0.05 % |
| Linearity | 2250 µm | 2250 µm | 2250 µm | 1200 µm | 1200 µm |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 8 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic (PBT GF20); Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting holes; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 290 g (incl. cable) | Wire extension force (max.): approx. 8 N; Wire retraction force (min.): approx. 1 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Glass-fiber reinforced plastic (PBT GF20); Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting holes; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 290 g (incl. cable) |
| Contact | Contact | Contact | Contact | Contact | Contact |
| Ordering options and constraints | Not specified | Not specified | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed | Not specified | Not specified |
| output_resolution_length | Not specified | Not specified | Not specified | 146 µm | 146 µm |
| Status | Active | Active | Active | Active | Active |
| Datasheet | PDF — WPS-1500-MK60-CR-I (opens in a new tab) | PDF — WPS-1500-MK60-CR-P (opens in a new tab) | PDF — WPS-1500-MK60-CR-U (opens in a new tab) | PDF — WPS-2400-MK60-CR-TTL01 (opens in a new tab) | PDF — WPS-2400-MK60-CR-TTL02 (opens in a new tab) |
