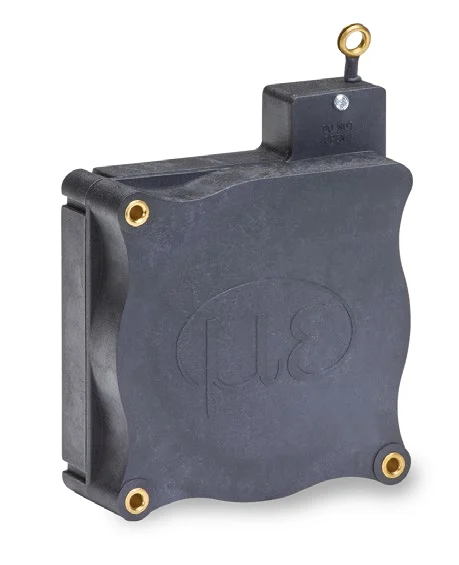

wireSENSOR MK77
wireSENSOR MK77 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Linearity (% FSO) | 0.05–0.25 % |
|---|---|
| Linearity | 1050–5250 µm |
| output_resolution_length | 430–550 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WPS-2100-MK77-CR-P25 eli-m-954c4267baa7e3e7364173ba | WPS-2100-MK77-E eli-m-6efae025c5a4e4956c13adff | WPS-2100-MK77-E830 eli-m-6cbe86caf61cf46444ad7a7c | WPS-2100-MK77-P25 eli-m-a72a108cd97a70d33ed80dd0 |
|---|---|---|---|---|
| Measuring range | 2100 mm | 2100 mm | 2100 mm | 2100 mm |
| Selected electrical output | potentiometer | encoder_e | encoder_e830 | potentiometer |
| Selected configuration options | range=2100 mm; suffix=CR-P25; output=Potentiometer / resistance divider | range=2100 mm; suffix=E; output=Incremental encoder E, 5–24 VDC | range=2100 mm; suffix=E830; output=Incremental encoder E830, 8–30 VDC | range=2100 mm; suffix=P25; output=Potentiometer / resistance divider |
| Selected connection | Integrated cable, radial, 1 m | Integrated cable, radial, 2 m | Integrated cable, radial, 2 m | Soldering tags |
| Protection class (DIN EN 60529) | IP20 | IP54 | IP54 | IP20 |
| Linearity (% FSO) | 0.25 % | 0.05 % | 0.05 % | 0.25 % |
| Linearity | 5250 µm | 1050 µm | 1050 µm | 5250 µm |
| output_resolution_length | 550 µm | 430 µm | 430 µm | 550 µm |
| Mechanical details from model-specific source cells | Wire extension force (max.): approx. 5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight / P25: approx. 220 g; Weight / CR-P25: approx. 275 g (incl. cable) | Wire extension force (max.): approx. 5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 275 g (incl. cable) | Wire extension force (max.): approx. 5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 275 g (incl. cable) | Wire extension force (max.): approx. 5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 5 g; Material / Housing: Plastics; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Eyelet (ø 4.5 mm); Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 5 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight / P25: approx. 220 g; Weight / CR-P25: approx. 275 g (incl. cable) |
| Contact | Contact | Contact | Contact | Contact |
| Status | Active | Active | Active | Active |
| Datasheet | PDF — WPS-2100-MK77-CR-P25 (opens in a new tab) | PDF — WPS-2100-MK77-E (opens in a new tab) | PDF — WPS-2100-MK77-E830 (opens in a new tab) | PDF — WPS-2100-MK77-P25 (opens in a new tab) |
