wireSENSOR MK88

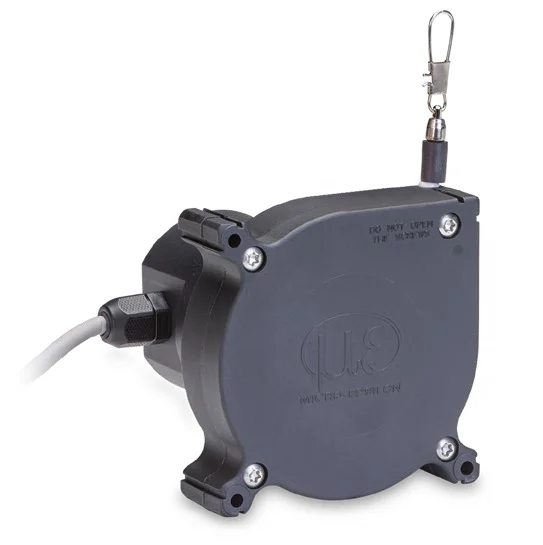

wireSENSOR MK88 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 2300–5000 mm |
|---|---|
| Linearity (% FSO) | 0.15–0.4 % |
| Linearity | 3450–20000 µm |
| output_resolution_length | 560–1220 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WPS-2300-MK88-CR-I eli-m-78afe5e655e41bd8f30916f3 | WPS-2300-MK88-CR-P eli-m-dd8c6b95e9db0abc4a16f933 | WPS-2300-MK88-CR-U eli-m-e470eda93e3adc9d19f06392 | WPS-2300-MK88-SR12-CO eli-m-3486517fb71ccacf474e9536 | WPS-3500-MK88-CR-I eli-m-35147881f98efddf0a37b4d1 | WPS-3500-MK88-CR-P eli-m-89e84f4305930d7d6296bdbe | WPS-3500-MK88-CR-U eli-m-e966dd8703d39b792bc74f13 | WPS-3500-MK88-SR12-CO eli-m-0fef149d6125f835577195ee | WPS-5000-MK88-CR-I eli-m-b0cbebc12c8d2244ccdf5495 | WPS-5000-MK88-CR-P eli-m-51b70a432762d93621d83bd5 | WPS-5000-MK88-CR-U eli-m-c47f2a2cbc7075a314303d71 | WPS-5000-MK88-SR12-CO eli-m-3edb97cd0c0538b727137438 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range | 2300 mm | 2300 mm | 2300 mm | 2300 mm | 3500 mm | 3500 mm | 3500 mm | 3500 mm | 5000 mm | 5000 mm | 5000 mm | 5000 mm |
| Selected electrical output | current | potentiometer | voltage | canopen | current | potentiometer | voltage | canopen | current | potentiometer | voltage | canopen |
| Selected configuration options | range=2300 mm; suffix=CR-I; output=Analog current | range=2300 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=2300 mm; suffix=CR-U; output=Analog voltage | range=2300 mm; suffix=SR12-CO; output=CANopen | range=3500 mm; suffix=CR-I; output=Analog current | range=3500 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=3500 mm; suffix=CR-U; output=Analog voltage | range=3500 mm; suffix=SR12-CO; output=CANopen | range=5000 mm; suffix=CR-I; output=Analog current | range=5000 mm; suffix=CR-P; output=Potentiometer / resistance divider | range=5000 mm; suffix=CR-U; output=Analog voltage | range=5000 mm; suffix=SR12-CO; output=CANopen |
| Selected connection | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 5-pole M12 connector, radial |
| Protection class (DIN EN 60529) | IP65 | IP65 | IP65 | IP65; For plug versions only when connected | IP65 | IP65 | IP65 | IP65; For plug versions only when connected | IP65 | IP65 | IP65 | IP65; For plug versions only when connected |
| Linearity (% FSO) | 0.15 % | 0.15 % | 0.15 % | 0.15 % | 0.3 % | 0.3 % | 0.3 % | 0.3 % | 0.4 % | 0.4 % | 0.4 % | 0.4 % |
| Linearity | 3450 µm | 3450 µm | 3450 µm | 3450 µm | 10500 µm | 10500 µm | 10500 µm | 10500 µm | 20000 µm | 20000 µm | 20000 µm | 20000 µm |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 4 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Glass-fiber reinforced plastic (PA 6 GF30); Material / Protection cap: Glass-fiber reinforced plastic (PBT GF20); Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C (on request -40 … +85 °C); Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 400 - 430 g (incl. cable) | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 4 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Glass-fiber reinforced plastic (PA 6 GF30); Material / Protection cap: Glass-fiber reinforced plastic (PBT GF20); Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C (on request -40 … +85 °C); Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 400 - 430 g (incl. cable) | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 4 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Glass-fiber reinforced plastic (PA 6 GF30); Material / Protection cap: Glass-fiber reinforced plastic (PBT GF20); Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting holes or mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C (on request -40 … +85 °C); Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 2 directions and 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes and 10 cycles each; Weight: approx. 400 - 430 g (incl. cable) |
| Ordering options and constraints | IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed; IP67 / extended temperature on request; no complete ordering suffix published | IP67 / extended temperature on request; no complete ordering suffix published |
| Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact |
| Interfaces | Not specified | Not specified | Not specified | canopen | Not specified | Not specified | Not specified | canopen | Not specified | Not specified | Not specified | canopen |
| output_resolution_length | Not specified | Not specified | Not specified | 560 µm | Not specified | Not specified | Not specified | 850 µm | Not specified | Not specified | Not specified | 1220 µm |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — WPS-2300-MK88-CR-I (opens in a new tab) | PDF — WPS-2300-MK88-CR-P (opens in a new tab) | PDF — WPS-2300-MK88-CR-U (opens in a new tab) | PDF — WPS-2300-MK88-SR12-CO (opens in a new tab) | PDF — WPS-3500-MK88-CR-I (opens in a new tab) | PDF — WPS-3500-MK88-CR-P (opens in a new tab) | PDF — WPS-3500-MK88-CR-U (opens in a new tab) | PDF — WPS-3500-MK88-SR12-CO (opens in a new tab) | PDF — WPS-5000-MK88-CR-I (opens in a new tab) | PDF — WPS-5000-MK88-CR-P (opens in a new tab) | PDF — WPS-5000-MK88-CR-U (opens in a new tab) | PDF — WPS-5000-MK88-SR12-CO (opens in a new tab) |
