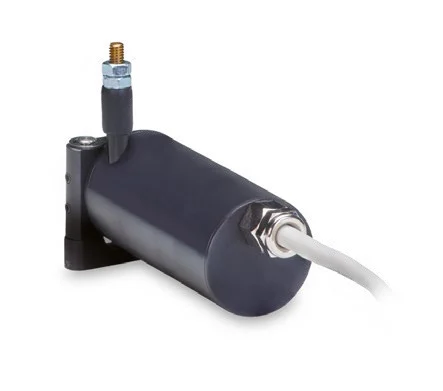

wireSENSOR MPM
wireSENSOR MPM draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 50–250 mm |
|---|---|
| Approximate maximum wire extension force | 3.5–17 N |
| Approximate minimum wire retraction force | 1.5–10 N |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WDS-150-MPM-C-P eli-m-9e2ac571190abcef0d99777c | WDS-150-MPM-C-P-HG eli-m-42f831fca2005f891e322c9e | WDS-250-MPM-C-P eli-m-f431e5b2a9fdeb5caea8d35a | WDS-250-MPM-C-P-HG eli-m-bfb46dbe80dc8d520706aeef | WDS-50-MPM-C-P eli-m-e184f617f6670f8879963a15 | WDS-50-MPM-C-P-HG eli-m-e9170a5218f1528615c476c8 |
|---|---|---|---|---|---|---|
| Measuring range | 150 mm | 150 mm | 250 mm | 250 mm | 50 mm | 50 mm |
| Selected electrical output | potentiometer | potentiometer | potentiometer | potentiometer | potentiometer | potentiometer |
| Selected configuration options | range=150 mm; suffix=C-P; output=Potentiometer / resistance divider | range=150 mm; suffix=C-P-HG; output=Potentiometer / resistance divider | range=250 mm; suffix=C-P; output=Potentiometer / resistance divider | range=250 mm; suffix=C-P-HG; output=Potentiometer / resistance divider | range=50 mm; suffix=C-P; output=Potentiometer / resistance divider | range=50 mm; suffix=C-P-HG; output=Potentiometer / resistance divider |
| Selected connection | Integrated cable, axial, 1 m | Integrated cable, axial, 1 m | Integrated cable, axial, 1 m | Integrated cable, axial, 1 m | Integrated cable, axial, 1 m | Integrated cable, axial, 1 m |
| Protection class (DIN EN 60529) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. |
| Approximate maximum wire extension force | Approximate; standard option | Approximate; selected HG option | Approximate; standard option | Approximate; selected HG option | Approximate; standard option | Approximate; selected HG option |
| Approximate minimum wire retraction force | Approximate; standard option | Approximate; selected HG option | Approximate; standard option | Approximate; selected HG option | Approximate; standard option | Approximate; selected HG option |
| linearity_expression | 0.25% FSO; ±0.3 mm — conflicting source quantities; numeric filtering withheld | 0.25% FSO; ±0.3 mm — conflicting source quantities; numeric filtering withheld | 0.25% FSO; ±0.5 mm — conflicting source quantities; numeric filtering withheld | 0.25% FSO; ±0.5 mm — conflicting source quantities; numeric filtering withheld | 0.2% FSO; ±0.125 mm — conflicting source quantities; numeric filtering withheld | 0.2% FSO; ±0.125 mm — conflicting source quantities; numeric filtering withheld |
| Contact | Contact | Contact | Contact | Contact | Contact | Contact |
| Status | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — WDS-150-MPM-C-P (opens in a new tab) | PDF — WDS-150-MPM-C-P-HG (opens in a new tab) | PDF — WDS-250-MPM-C-P (opens in a new tab) | PDF — WDS-250-MPM-C-P-HG (opens in a new tab) | PDF — WDS-50-MPM-C-P (opens in a new tab) | PDF — WDS-50-MPM-C-P-HG (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
HG increases the maximum wire acceleration from approximately 25g to 100g. It also changes wire forces: maximum extension force rises from approximately 3.5 to 17 N, and minimum retraction force from approximately 1.5 to 10 N.
The table lists 50, 150 and 250 mm ranges with a potentiometer output and a 1 m integral axial cable. HG versions remain separate configurations even where their output type and range match.
The catalogue specifies a mounting flange rotatable through 180° or 360°. The measuring wire attaches through an M4 threaded bolt. Follow the installation drawing.
It specifies IP65 and −20 to +80°C operation. Select the wire acceleration limit separately for the standard or HG version.
The listed models use potentiometers and a 1 m integral axial cable. They require suitable potentiometric acquisition electronics rather than only a digital communication input.
