wireSENSOR P60

wireSENSOR P60: sensors and measurement devices by Micro-Epsilon for distance & displacement sensors.

Request a quote for this product Schedule a demonstration Talk to an expert
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Official Micro-Epsilon product image

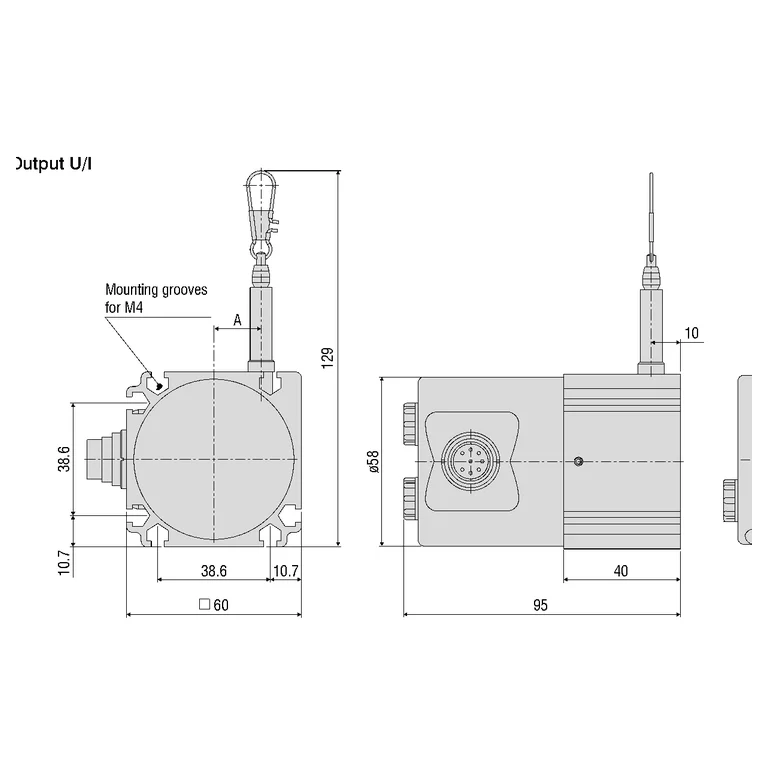

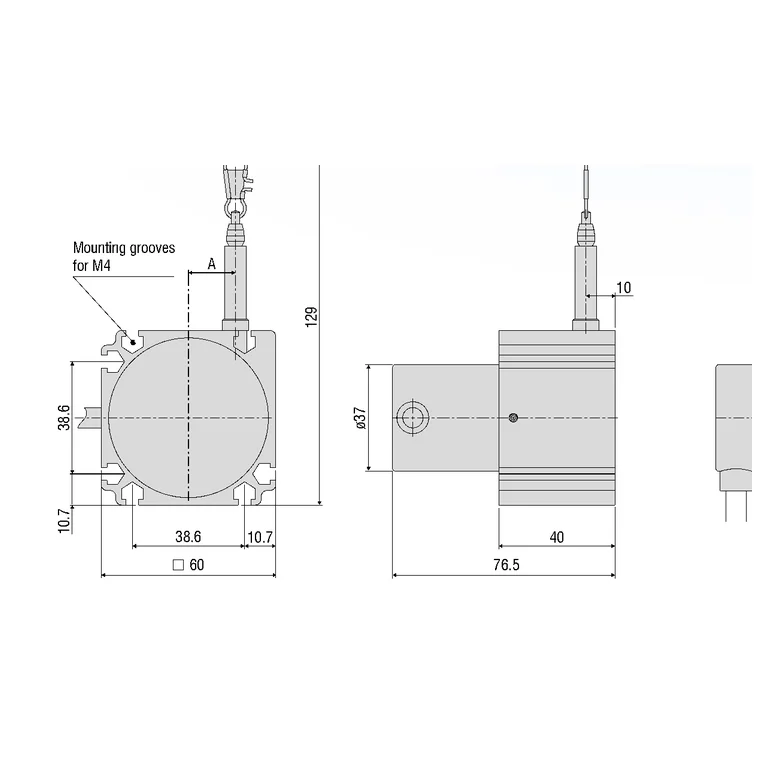

Shared technical specifications for the series

Properties every model in the series has. What differs is in the models table below.

Range across models

The span covered by the models of the series together — not the range of each model.

Range across the models of wireSENSOR P60
Measuring range 100–1500 mm
Linearity (% FSO) 0.02–0.5 %
Linearity 200–1500 µm
output_resolution_length 12–100 µm
Request a quote for this product

Models in the series

One column per model: what differs between the models of the series.

Models of wireSENSOR P60 compared by parameter
Parameter WDS-100-P60-CR-P eli-m-609b7f3473092f37629b1759 WDS-100-P60-SR-I eli-m-e4d634b213974f03a0f26a09 WDS-100-P60-SR-U eli-m-45b44685c2ae0b77806dc799 WDS-1000-P60-BH-CAT eli-m-ac2e532ccbb90ff1d6cbb6ab WDS-1000-P60-BH-CO eli-m-37b3df21a89fa2303dce53df WDS-1000-P60-BH-ENIP eli-m-10fdf71d3b2edc0836e14f8c WDS-1000-P60-BH-PB eli-m-878091f1ef10049ddc80e117 WDS-1000-P60-BH-PN eli-m-b69471583d83d051c3eb8d5d WDS-1000-P60-CR-HTL eli-m-89d5fbbc138a77bced69d516 WDS-1000-P60-CR-P eli-m-0a607b348e7a1f2583a5d188 WDS-1000-P60-CR-TTL eli-m-42e173912af0b86b89580e57 WDS-1000-P60-SR-I eli-m-95541fe6944dc464f90f7c3d WDS-1000-P60-SR-SSI eli-m-41ce238f636f32411a00609f WDS-1000-P60-SR-U eli-m-acbb6cd387934ff50285c3a8 WDS-150-P60-CR-P eli-m-6b5b4dc9ed4aec74c495c8e7 WDS-150-P60-SR-I eli-m-3e20378d96e81e3522d71a4f WDS-150-P60-SR-U eli-m-3c02daed63b505a5caebc347 WDS-1500-P60-BH-CAT eli-m-39aedd79ebb8d921537a0856 WDS-1500-P60-BH-CO eli-m-271a78349643c984f2674c33 WDS-1500-P60-BH-ENIP eli-m-0a00fd5bf4945fae2a8a2eb7 WDS-1500-P60-BH-PB eli-m-13fe8c3fee89ecaa8f36a94c WDS-1500-P60-BH-PN eli-m-c6017c782ff0943db1791b23 WDS-1500-P60-CR-HTL eli-m-738a0835c410030779d61fdd WDS-1500-P60-CR-P eli-m-144bf003f59fc638a8ffdccb WDS-1500-P60-CR-TTL eli-m-133885b0bfeaa13421b1e97e WDS-1500-P60-SR-I eli-m-8a581f54a289bdb078a4f9c7 WDS-1500-P60-SR-SSI eli-m-2e88bfc2c161a3512105d8d5 WDS-1500-P60-SR-U eli-m-7b8c18a872c69c290dddca0e WDS-300-P60-CR-P eli-m-0ef2fbaf0265b6dcac0c8c6d WDS-300-P60-SR-I eli-m-cf2491651cca9d302cefa8c1 WDS-300-P60-SR-U eli-m-920f66d5acd245a73b2b2f8a WDS-500-P60-CR-P eli-m-29746c160f8edb336bbd03f2 WDS-500-P60-SR-I eli-m-9a39d095c7c1ec6a793fa414 WDS-500-P60-SR-U eli-m-bc34d346c8f6cc45f1dc0cc6 WDS-750-P60-CR-P eli-m-a30955e4cb832537538f0e89 WDS-750-P60-SR-I eli-m-ebae4561d61e62dc23a509cc WDS-750-P60-SR-U eli-m-3c354e6576de82d8adba4fda
Measuring range 100 mm 100 mm 100 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm 150 mm 150 mm 150 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 1500 mm 300 mm 300 mm 300 mm 500 mm 500 mm 500 mm 750 mm 750 mm 750 mm
Selected electrical output potentiometer current voltage ethercat canopen ethernet_ip profibus_dp profinet htl potentiometer ttl current ssi voltage potentiometer current voltage ethercat canopen ethernet_ip profibus_dp profinet htl potentiometer ttl current ssi voltage potentiometer current voltage potentiometer current voltage potentiometer current voltage
Selected configuration options range=100 mm; suffix=CR-P; output=Potentiometer / resistance divider range=100 mm; suffix=SR-I; output=Analog current range=100 mm; suffix=SR-U; output=Analog voltage range=1000 mm; suffix=BH-CAT; output=EtherCAT range=1000 mm; suffix=BH-CO; output=CANopen range=1000 mm; suffix=BH-ENIP; output=EtherNet/IP range=1000 mm; suffix=BH-PB; output=Profibus DP range=1000 mm; suffix=BH-PN; output=PROFINET range=1000 mm; suffix=CR-HTL; output=HTL range=1000 mm; suffix=CR-P; output=Potentiometer / resistance divider range=1000 mm; suffix=CR-TTL; output=TTL range=1000 mm; suffix=SR-I; output=Analog current range=1000 mm; suffix=SR-SSI; output=SSI Gray code range=1000 mm; suffix=SR-U; output=Analog voltage range=150 mm; suffix=CR-P; output=Potentiometer / resistance divider range=150 mm; suffix=SR-I; output=Analog current range=150 mm; suffix=SR-U; output=Analog voltage range=1500 mm; suffix=BH-CAT; output=EtherCAT range=1500 mm; suffix=BH-CO; output=CANopen range=1500 mm; suffix=BH-ENIP; output=EtherNet/IP range=1500 mm; suffix=BH-PB; output=Profibus DP range=1500 mm; suffix=BH-PN; output=PROFINET range=1500 mm; suffix=CR-HTL; output=HTL range=1500 mm; suffix=CR-P; output=Potentiometer / resistance divider range=1500 mm; suffix=CR-TTL; output=TTL range=1500 mm; suffix=SR-I; output=Analog current range=1500 mm; suffix=SR-SSI; output=SSI Gray code range=1500 mm; suffix=SR-U; output=Analog voltage range=300 mm; suffix=CR-P; output=Potentiometer / resistance divider range=300 mm; suffix=SR-I; output=Analog current range=300 mm; suffix=SR-U; output=Analog voltage range=500 mm; suffix=CR-P; output=Potentiometer / resistance divider range=500 mm; suffix=SR-I; output=Analog current range=500 mm; suffix=SR-U; output=Analog voltage range=750 mm; suffix=CR-P; output=Potentiometer / resistance divider range=750 mm; suffix=SR-I; output=Analog current range=750 mm; suffix=SR-U; output=Analog voltage
Selected connection Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 8-pin flange connector DIN45326, radial Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Integrated cable, radial, 1 m Integrated cable, radial, 1 m Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 12-pin flange connector, radial 8-pin flange connector DIN45326, radial Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 8-pin flange connector DIN45326, radial Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Bus cover; connector depends on selected protocol Integrated cable, radial, 1 m Integrated cable, radial, 1 m Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 12-pin flange connector, radial 8-pin flange connector DIN45326, radial Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 8-pin flange connector DIN45326, radial Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 8-pin flange connector DIN45326, radial Integrated cable, radial, 1 m 8-pin flange connector DIN45326, radial 8-pin flange connector DIN45326, radial
Protection class (DIN EN 60529) IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65 IP65 IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65 IP65 IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected IP65; For plug versions only when connected IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected IP65 IP65; For plug versions only when connected IP65; For plug versions only when connected
Linearity (% FSO) 0.5 % 0.5 % 0.5 % 0.02 % 0.02 % 0.02 % 0.02 % 0.02 % 0.02 % 0.1 % 0.02 % 0.1 % 0.02 % 0.1 % 0.5 % 0.5 % 0.5 % 0.02 % 0.02 % 0.02 % 0.02 % 0.02 % 0.02 % 0.1 % 0.02 % 0.1 % 0.02 % 0.1 % 0.25 % 0.25 % 0.25 % 0.1 % 0.1 % 0.1 % 0.1 % 0.1 % 0.1 %
Linearity 500 µm 500 µm 500 µm 200 µm 200 µm 200 µm 200 µm 200 µm 200 µm 1000 µm 200 µm 1000 µm 200 µm 1000 µm 750 µm 750 µm 750 µm 300 µm 300 µm 300 µm 300 µm 300 µm 300 µm 1500 µm 300 µm 1500 µm 300 µm 1500 µm 750 µm 750 µm 750 µm 500 µm 500 µm 500 µm 750 µm 750 µm 750 µm
Mechanical details from model-specific source cells Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Wire extension force (max.): approx. 7.5 N; Wire retraction force (min.): approx. 5 N; Wire acceleration (max.): approx. 10 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Wire extension force (max.): approx. 5.5 N; Wire retraction force (min.): approx. 3.5 N; Wire acceleration (max.): approx. 15 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.45 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1 kg Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned.
Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact Contact
Ordering options and constraints Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed Not specified Not specified Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed
Interfaces Not specified Not specified Not specified ethercat canopen ethernet_ip profibus_dp profinet Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified ethercat canopen ethernet_ip profibus_dp profinet Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified
output_resolution_length Not specified Not specified Not specified 12 µm 12 µm 12 µm 12 µm 12 µm 67 µm Not specified 67 µm Not specified 12 µm Not specified Not specified Not specified Not specified 18 µm 18 µm 18 µm 18 µm 18 µm 100 µm Not specified 100 µm Not specified 18 µm Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified Not specified
Status Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active
Datasheet PDF — WDS-100-P60-CR-P (opens in a new tab) PDF — WDS-100-P60-SR-I (opens in a new tab) PDF — WDS-100-P60-SR-U (opens in a new tab) PDF — WDS-1000-P60-BH-CAT (opens in a new tab) PDF — WDS-1000-P60-BH-CO (opens in a new tab) PDF — WDS-1000-P60-BH-ENIP (opens in a new tab) PDF — WDS-1000-P60-BH-PB (opens in a new tab) PDF — WDS-1000-P60-BH-PN (opens in a new tab) PDF — WDS-1000-P60-CR-HTL (opens in a new tab) PDF — WDS-1000-P60-CR-P (opens in a new tab) PDF — WDS-1000-P60-CR-TTL (opens in a new tab) PDF — WDS-1000-P60-SR-I (opens in a new tab) PDF — WDS-1000-P60-SR-SSI (opens in a new tab) PDF — WDS-1000-P60-SR-U (opens in a new tab) PDF — WDS-150-P60-CR-P (opens in a new tab) PDF — WDS-150-P60-SR-I (opens in a new tab) PDF — WDS-150-P60-SR-U (opens in a new tab) PDF — WDS-1500-P60-BH-CAT (opens in a new tab) PDF — WDS-1500-P60-BH-CO (opens in a new tab) PDF — WDS-1500-P60-BH-ENIP (opens in a new tab) PDF — WDS-1500-P60-BH-PB (opens in a new tab) PDF — WDS-1500-P60-BH-PN (opens in a new tab) PDF — WDS-1500-P60-CR-HTL (opens in a new tab) PDF — WDS-1500-P60-CR-P (opens in a new tab) PDF — WDS-1500-P60-CR-TTL (opens in a new tab) PDF — WDS-1500-P60-SR-I (opens in a new tab) PDF — WDS-1500-P60-SR-SSI (opens in a new tab) PDF — WDS-1500-P60-SR-U (opens in a new tab) PDF — WDS-300-P60-CR-P (opens in a new tab) PDF — WDS-300-P60-SR-I (opens in a new tab) PDF — WDS-300-P60-SR-U (opens in a new tab) PDF — WDS-500-P60-CR-P (opens in a new tab) PDF — WDS-500-P60-SR-I (opens in a new tab) PDF — WDS-500-P60-SR-U (opens in a new tab) PDF — WDS-750-P60-CR-P (opens in a new tab) PDF — WDS-750-P60-SR-I (opens in a new tab) PDF — WDS-750-P60-SR-U (opens in a new tab)

The industries we serve

Frequently asked questions

Answers to the most common questions about our products and services

No. The analog table covers seven ranges from 100 to 1500 mm with P, U or I outputs. The listed digital encoder versions are limited to 1000 and 1500 mm ranges.

CR denotes an integral radial cable for HTL/TTL; SR denotes a radial connector for SSI; BH denotes a bus cover for CANopen, Profibus DP, PROFINET, EtherNet/IP and EtherCAT versions.

Yes. At 1000 mm, HTL/TTL specifies 0.067 mm and SSI or fieldbus 0.012 mm. At 1500 mm, the corresponding values are 0.1 and 0.018 mm.

The IP65 footnote requires the plug to be mated on connector versions. Preserve that condition when selecting the cable and stating protection.

It has an aluminium housing with mounting grooves and specifies −20 to +80°C operation. The wire acceleration limit depends on the selected range.
