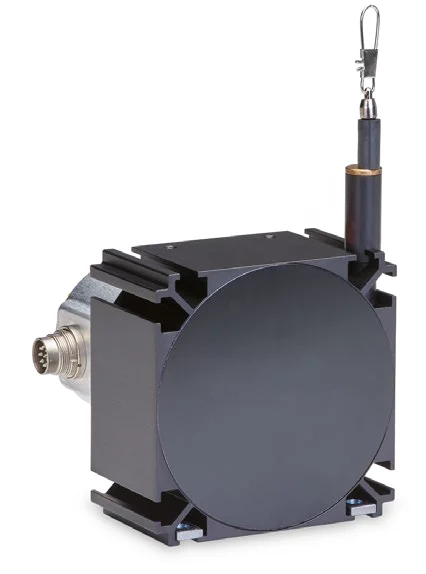

wireSENSOR P96
wireSENSOR P96 draw-wire sensors; range and output are selected per model.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Measuring range | 2000–3000 mm |
|---|---|
| Linearity (% FSO) | 0.02–0.1 % |
| Linearity | 600–2500 µm |
| output_resolution_length | 32–87 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | WDS-2000-P96-CA-P eli-m-4ea257097d201ec15cbb6792 | WDS-2000-P96-SR-I eli-m-7984580630fd0c837bc5bcbe | WDS-2000-P96-SR-U eli-m-b0ca6ad2b1aeaa32a5419e6f | WDS-2500-P96-CA-P eli-m-e87c572088037ce452ac2f50 | WDS-2500-P96-SR-I eli-m-78b6011945523207ebf2d64d | WDS-2500-P96-SR-U eli-m-ceb8fbd353cd36a5af2e6204 | WDS-3000-P96-BH-CAT eli-m-9feb805ab3114e074b1eaecf | WDS-3000-P96-BH-CO eli-m-0a04e84d29bccde2cd932053 | WDS-3000-P96-BH-ENIP eli-m-1908f0a4ff633f3579693ef4 | WDS-3000-P96-BH-PB eli-m-10ec3a3ba8d79079bffd4678 | WDS-3000-P96-BH-PN eli-m-24a2df185597f7b568cf5510 | WDS-3000-P96-CR-HTL eli-m-cbfa6799ac97edfdb5b7c3e6 | WDS-3000-P96-CR-TTL eli-m-23e2b282c08f66866c3b4354 | WDS-3000-P96-SR-SSI eli-m-053c51d2debd83379a817dad |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Measuring range | 2000 mm | 2000 mm | 2000 mm | 2500 mm | 2500 mm | 2500 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm | 3000 mm |
| Selected electrical output | potentiometer | current | voltage | potentiometer | current | voltage | ethercat | canopen | ethernet_ip | profibus_dp | profinet | htl | ttl | ssi |
| Selected configuration options | range=2000 mm; suffix=CA-P; output=Potentiometer / resistance divider | range=2000 mm; suffix=SR-I; output=Analog current | range=2000 mm; suffix=SR-U; output=Analog voltage | range=2500 mm; suffix=CA-P; output=Potentiometer / resistance divider | range=2500 mm; suffix=SR-I; output=Analog current | range=2500 mm; suffix=SR-U; output=Analog voltage | range=3000 mm; suffix=BH-CAT; output=EtherCAT | range=3000 mm; suffix=BH-CO; output=CANopen | range=3000 mm; suffix=BH-ENIP; output=EtherNet/IP | range=3000 mm; suffix=BH-PB; output=Profibus DP | range=3000 mm; suffix=BH-PN; output=PROFINET | range=3000 mm; suffix=CR-HTL; output=HTL | range=3000 mm; suffix=CR-TTL; output=TTL | range=3000 mm; suffix=SR-SSI; output=SSI Gray code |
| Selected connection | Integrated cable, axial, 1 m | 8-pin flange connector DIN45326, radial | 8-pin flange connector DIN45326, radial | Integrated cable, axial, 1 m | 8-pin flange connector DIN45326, radial | 8-pin flange connector DIN45326, radial | Bus cover; connector depends on selected protocol | Bus cover; connector depends on selected protocol | Bus cover; connector depends on selected protocol | Bus cover; connector depends on selected protocol | Bus cover; connector depends on selected protocol | Integrated cable, radial, 1 m | Integrated cable, radial, 1 m | 12-pin flange connector, radial |
| Protection class (DIN EN 60529) | IP65 | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65 | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65; For plug versions only when connected | IP65 | IP65 | IP65; For plug versions only when connected |
| Linearity (% FSO) | 0.1 % | 0.1 % | 0.1 % | 0.1 % | 0.1 % | 0.1 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % |
| Linearity | 2000 µm | 2000 µm | 2000 µm | 2500 µm | 2500 µm | 2500 µm | 600 µm | 600 µm | 600 µm | 600 µm | 600 µm | 600 µm | 600 µm | 600 µm |
| Mechanical details from model-specific source cells | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Resolution: source gives a qualitative potentiometer limit; no numeric zero assigned. | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg | Wire extension force (max.): approx. 9 N; Wire retraction force (min.): approx. 5.5 N; Wire acceleration (max.): approx. 7 g; Material / Housing: Aluminum; Material / Measuring wire: Polyamide-coated stainless steel (ø 0.8 mm); Wire mounting: Wire clip; Installation: Mounting grooves on the sensor housing; Temperature range / Storage: -20 … +80 °C; Temperature range / Operation: -20 … +80 °C; Shock (DIN EN 60068-2-27): 50 g / 10 ms in 3 axes, 1000 shocks each; Vibration (DIN EN 60068-2-6): 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each; Weight: approx. 1.7 kg |
| Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact | Contact |
| Ordering options and constraints | Not specified | Not specified | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed | Not specified | Not specified | Standard 0–10 V; 0–5 V / ±5 V on request, page 58; final suffix/availability must be confirmed | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified |
| Interfaces | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | ethercat | canopen | ethernet_ip | profibus_dp | profinet | Not specified | Not specified | Not specified |
| output_resolution_length | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | 32 µm | 32 µm | 32 µm | 32 µm | 32 µm | 87 µm | 87 µm | 32 µm |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — WDS-2000-P96-CA-P (opens in a new tab) | PDF — WDS-2000-P96-SR-I (opens in a new tab) | PDF — WDS-2000-P96-SR-U (opens in a new tab) | PDF — WDS-2500-P96-CA-P (opens in a new tab) | PDF — WDS-2500-P96-SR-I (opens in a new tab) | PDF — WDS-2500-P96-SR-U (opens in a new tab) | PDF — WDS-3000-P96-BH-CAT (opens in a new tab) | PDF — WDS-3000-P96-BH-CO (opens in a new tab) | PDF — WDS-3000-P96-BH-ENIP (opens in a new tab) | PDF — WDS-3000-P96-BH-PB (opens in a new tab) | PDF — WDS-3000-P96-BH-PN (opens in a new tab) | PDF — WDS-3000-P96-CR-HTL (opens in a new tab) | PDF — WDS-3000-P96-CR-TTL (opens in a new tab) | PDF — WDS-3000-P96-SR-SSI (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
The analog table lists 2000 and 2500 mm versions with P, U or I outputs. The listed digital version has a 3000 mm range, with an encoder or bus output selected by model suffix.
No. Analog P uses an integral axial CA cable, while U/I use a radial SR connector. Digital connections depend on the output: CR for HTL/TTL, SR for SSI or BH for industrial bus versions.
No. The 3000 mm version specifies 0.087 mm for HTL/TTL and 0.032 mm for SSI or fieldbus. Linearity is specified separately.
No. The 2000 and 2500 mm analog versions specify approximately 8g, while the 3000 mm digital version specifies approximately 7g. Retain the model association.
It has an aluminium housing, −20 to +80°C operating range and IP65 protection. On connector versions, IP65 applies only with the plug mated.
