ODC2520-95
From the optoCONTROL 2520 series
optoCONTROL 2520: sensors and measurement devices by Micro-Epsilon for measurement & 3d systems.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)

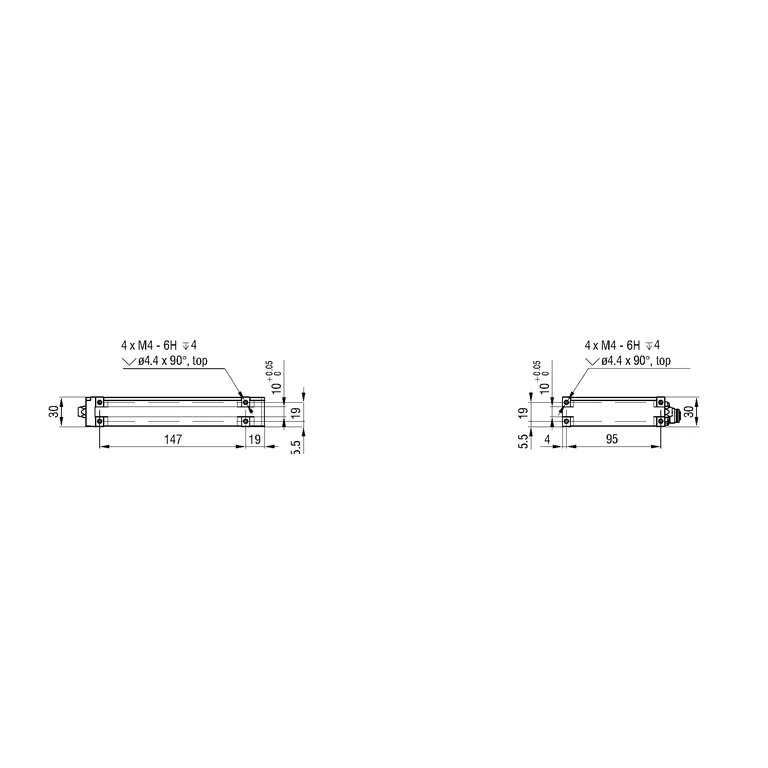

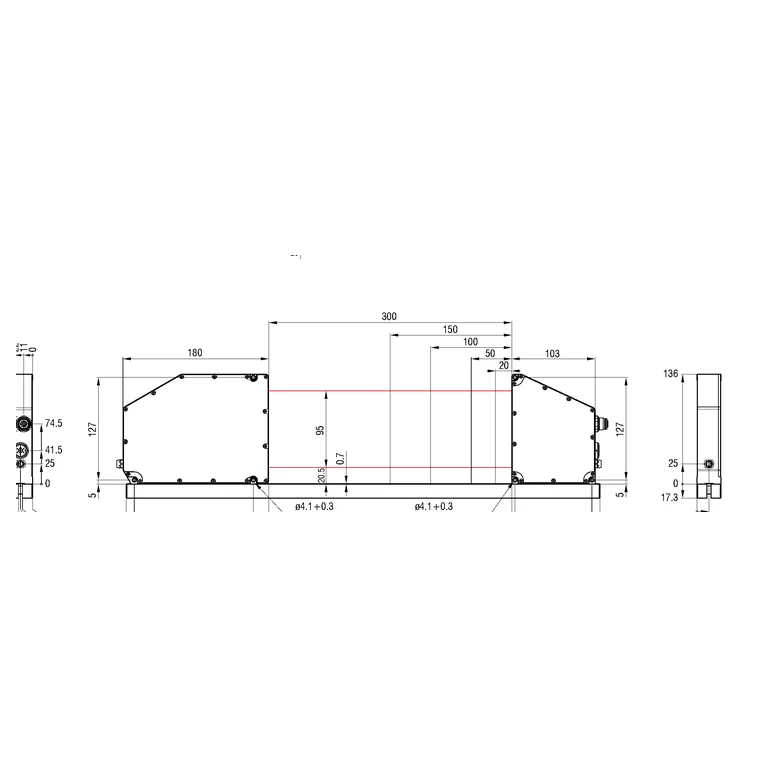

Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 95 mm |
|---|---|
| Accuracy | 15 µm |
| Repeatability | 6 µm |
| Resolution | 2 µm |
| Measuring rate | 2000 Hz |
| Interfaces | profinet |
| interface_specification | Analog 0-10V |
| Output update rate | 2000 Hz |
| Operating temperature | 0–50 °C |
| Protection class (DIN EN 60529) | ip64 |
| Working distance | 20–2000 mm |
| quantity_specification | 95 mm measuring field; typical minimum target size 2 mm; selectable transmitter-to-receiver distance up to 2000 mm. |
| Linearity | 15 µm |
| Interfaces | rs422 |
| interface_specification | Digital I/O |
| Interfaces | ethernet_ip |
| source_sampling_rate_basis | ODC2520-95 published measuring and result cycle rate: 2.0 kHz |
| interface_specification | RS422 / RS485 |
| Interfaces | ethercat |
| Linearity | 20 µm |
| Interfaces | ethernet |
Compatible accessories
Cables
- PC/SC2520-x eli-m-ab68c7fc4a87264e825d1632
- PC/SC2520-3/IF2008 eli-m-6272a264acd2733db17cb3bf
- PC/SC2520-x/DPU eli-m-60f2305cd7a09091296473a3
- SCD2520-x eli-m-669777d532e1c8708d447f58
- SCD2520-5M12 eli-m-5cf675795caaf5b9614cd821
- PCE2520-3/M12 eli-m-4fa51b52308705d93917b93e
- CE2520-x eli-m-8f94e9342d1a71c72173b6c2
- PC/SC2520/90-5 eli-m-10824d4cc981986bcbad2061
- SCD2520/90-x eli-m-69603a195885637e21d43197
- CE2520/90-x eli-m-d9a70bc5f623dfb822b97196
Mounting
- 2966033 eli-m-663b14b865ca584732d1eb25
- 2966034 eli-m-cd163938a4adafedee275ed2
- 2966035 eli-m-2eec13739b7bdb599f19dec0
Power supplies
- PS2020 (2420062) eli-m-75d559684cc51453ffe276de
- PS2031 (2420096) eli-m-8a1b93b2129296d4e75fa70e
Complementary products
- IF1032/ETH eli-m-9f23885a1bd1bd049fa826c5
- IF2035-PROFINET eli-m-28ba928f99d465e1027173dc
- IF2035-EIP eli-m-6bc477e0074e9f357537ebb7
- IF2035-EtherCAT eli-m-4f0c3cc8987603de07eab245
- DPU eli-m-ad51dd489ae5e6627bbd43d0
