optoCONTROL 2700
optoCONTROL 2700: sensors and measurement devices by Micro-Epsilon for measurement & 3d systems.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Accuracy | 0.5–1 µm |
|---|---|
| Repeatability | 0.03–0.1 µm |
| Working distance | 140–160 mm |

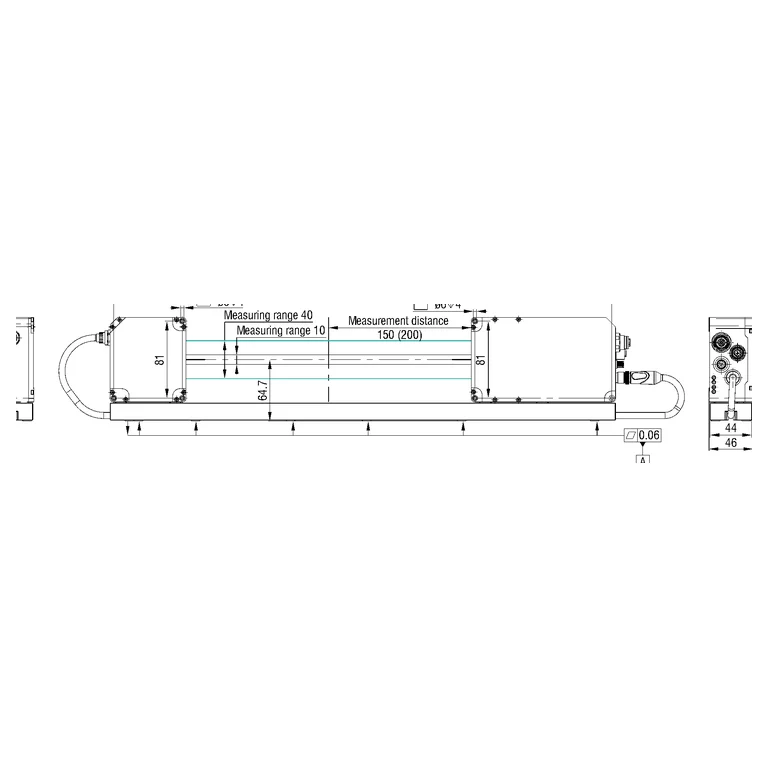

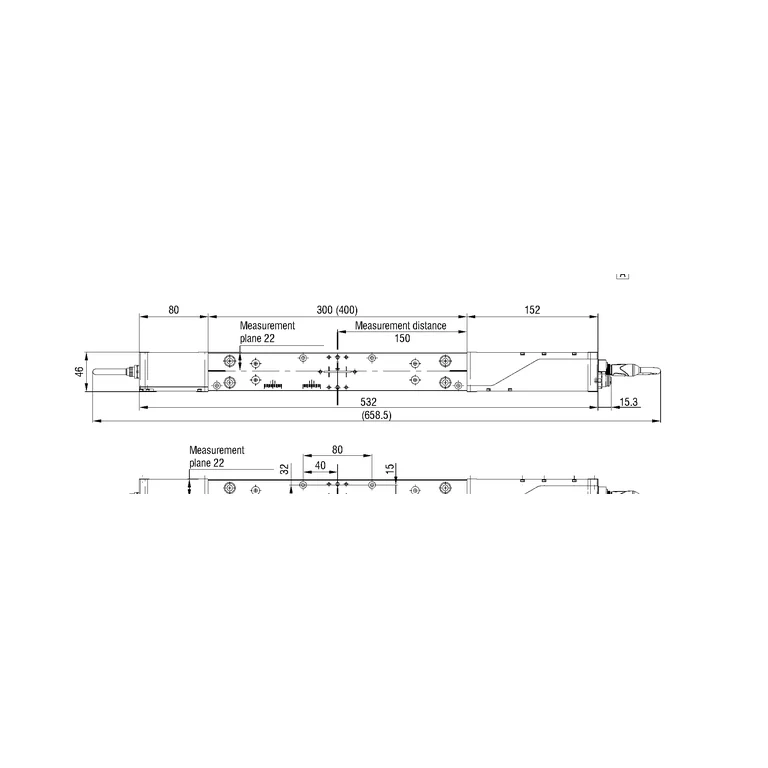

Models in the series
One column per model: what differs between the models of the series.
| Parameter | ODC2700-10 eli-m-31d4ffd20d239e66eeb0f1f2 | ODC2700-40 eli-m-4b7fd41d12047988d4bf8613 |
|---|---|---|
| Interfaces | profinet | ethernet |
| source_sampling_rate_basis | 15 kHz internal sampling rate; 5 kHz measuring/result rate | 15 kHz internal sampling rate; 5 kHz measuring/result rate |
| Measuring rate | 5000 Hz | 5000 Hz |
| Output update rate | 5000 Hz | 5000 Hz |
| Accuracy | 0.5 µm | 1 µm |
| quantity_specification | 10 mm measuring field; 10 nm digital resolution; 0.5 µm linearity; 0.03 µm repeatability. | 40 mm measuring field; 10 nm digital resolution; 1 µm linearity; 0.1 µm repeatability. |
| Operating temperature | 0–50 °C | 0–50 °C |
| ADC sampling rate | 15000 samples/s | 15000 samples/s |
| Protection class (DIN EN 60529) | ip67 | ip67 |
| Resolution | 0.01 µm | 0.01 µm |
| interface_specification | Digital I/O | Analog 0-10V |
| Repeatability | 0.03 µm | 0.1 µm |
| Working distance | 147.5–152.5 mm | 140–160 mm |
| Status | Active | Active |
| Datasheet | PDF — ODC2700-10 (opens in a new tab) | PDF — ODC2700-40 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
No. It uses a turquoise LED with telecentric optics. The optoCONTROL family name does not make it a laser micrometer.
No. Sampling rate is 15 kHz; Measuring rate is 5 kHz of values output at the interface. Preserve both definitions.
No. It is the numeric output increment. Linearity and repeatability are separate specifications with averaging, stability and warm-up conditions.
No. It applies to ODC2700-10 in a specified field. Other fields and ODC2700-40 have different values. Preserve position conditions.
It corrects diameter for target inclination and also supplies angle information. Select suitable program and target conditions; it does not remove all geometry limits.
