thicknessGAUGE 3D
thicknessGAUGE 3D: sensors and measurement devices by Micro-Epsilon for measurement & 3d systems.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Protection class (DIN EN 60529) | ip54 |
|---|---|
| Points per profile | 1024–2048 points/profile |

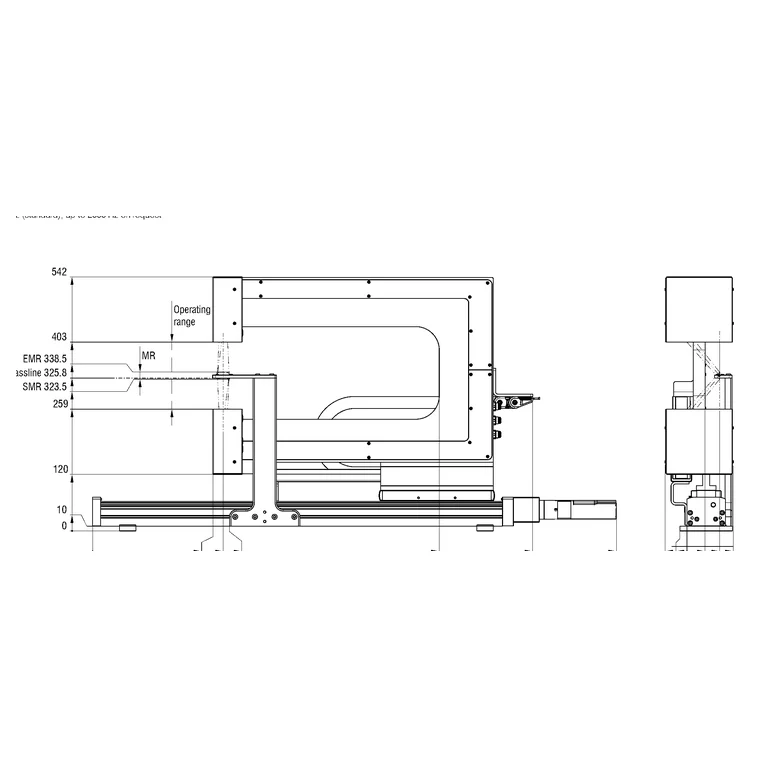

Models in the series
One column per model: what differs between the models of the series.

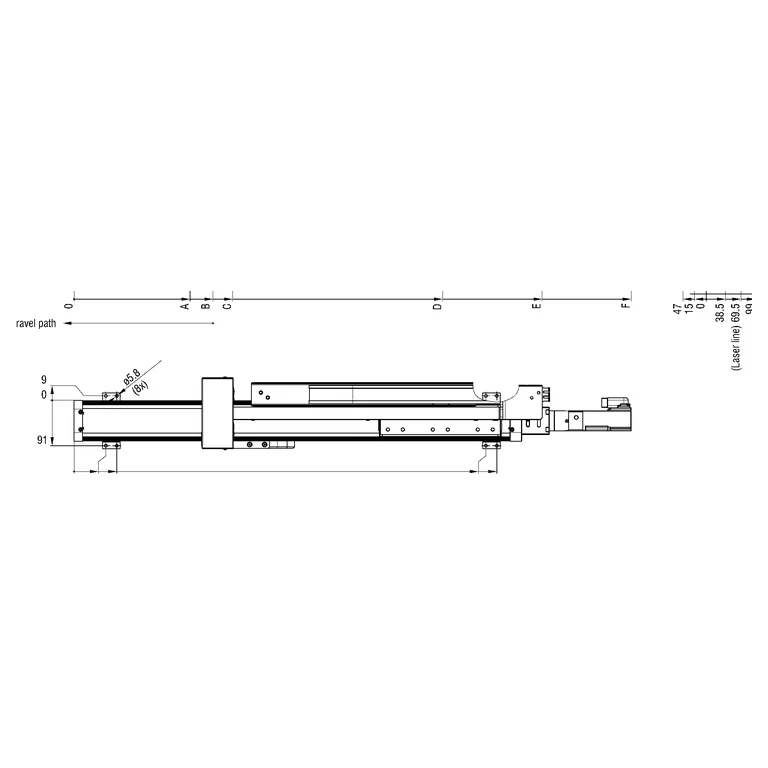

| Parameter | C.LP-3D-15/200 eli-m-d6a57b9cc5b96e6e3bee0b97 | C.LP-3D-15/400 eli-m-ff6ab7fbae209c650c0701e1 | C.LP-3D-15/600 eli-m-f91cc80e818df73cef95c420 |
|---|---|---|---|
| Protection class (DIN EN 60529) | ip40 | ip54 | ip54 |
| source_repeatability_basis | Repeatability not stated in the reviewed official source. | Repeatability not stated in the reviewed official source. | Repeatability not stated in the reviewed official source. |
| source_maximum_travel_path_mm | 380 mm | 580 mm | 780 mm |
| interface_specification | Analog 0-10V | Analog 0-10V | Digital I/O |
| Operating range | 144 mm | 144 mm | 144 mm |
| Measuring range | 15 mm | Not specified | Not specified |
| X measuring range | 26.8 mm | 26.8 mm | 26.8 mm |
| source_system_calibration_type | Automatic | Automatic | Automatic |
| Measuring rate | 500 Hz | 500 Hz | 500 Hz |
| Resolution | 0.2 µm | 0.2 µm | 0.2 µm |
| Storage temperature | -20–65 °C | -20–65 °C | -20–65 °C |
| Humidity | 5–95 %RH | 5–95 %RH | 5–95 %RH |
| Maximum material width | 200 mm | 400 mm | 600 mm |
| System accuracy | 1.2 µm | 1.2 µm | 1.2 µm |
| Operating temperature | 5–45 °C | 5–45 °C | 5–45 °C |
| Points per profile | 1024 points/profile | 1024 points/profile | 2048 points/profile |
| source_sampling_rate_basis | Official maximum measurement or output rate: 500 Hz. | Official maximum measurement or output rate: 500 Hz. | Official maximum measurement or output rate: 500 Hz. |
| source_three_d_scanner_type | Two opposing laser profile scanners detect synchronized profile data along linear movement; merged into a 3D point cloud | Two opposing laser profile scanners detect synchronized profile data along linear movement; merged into a 3D point cloud | Two opposing laser profile scanners detect synchronized profile data along linear movement; merged into a 3D point cloud |
| Laser class | v_4da3f93c6d2ec7a8 | v_4da3f93c6d2ec7a8 | v_4da3f93c6d2ec7a8 |
| Interfaces | ethernet | profinet | profinet |
| quantity_specification | 15 mm thickness measuring range; 200 mm named measuring width; article 4350127.730. | 15 mm thickness measuring range; 400 mm named measuring width; article 4350127.731. | 15 mm thickness measuring range; 600 mm named measuring width; article 4350127.732. |
| ADC sampling rate | 500 samples/s | 500 samples/s | 500 samples/s |
| Status | Active | Active | Active |
| Datasheet | PDF — C.LP-3D-15/200 (opens in a new tab) | PDF — C.LP-3D-15/400 (opens in a new tab) | PDF — C.LP-3D-15/600 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services

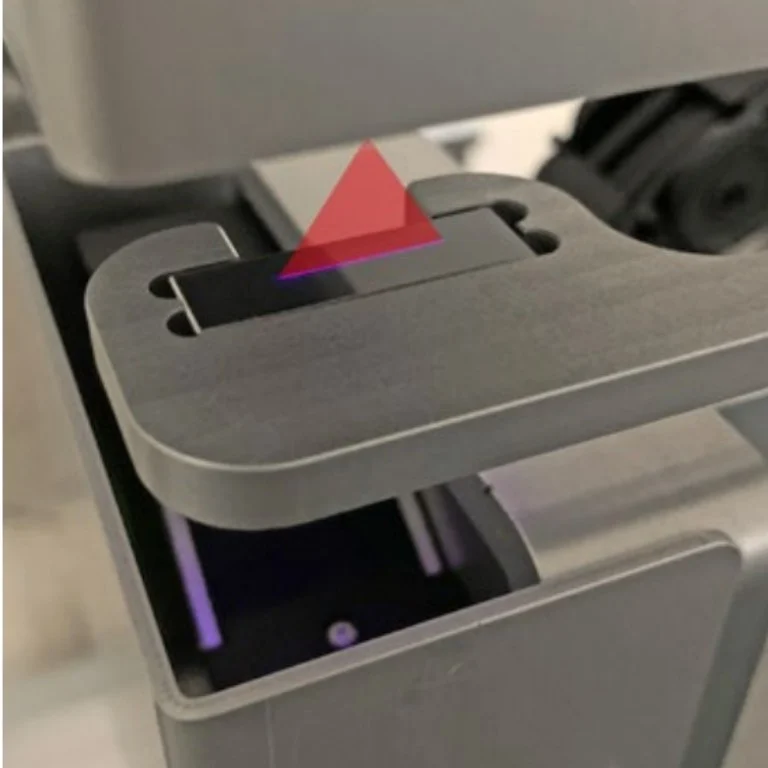

Opposed scanners acquire synchronized profiles during movement. Their point cloud supports thickness and programmed geometric measurements.
No. The specification lists 500 Hz standard and up to 2000 Hz on request depending on task. Preserve option status.
No. It lists 1024 points standard and 2048 on request. X point count is not z thickness resolution.
Set the task in 3DInspect and transfer program/parameters to thicknessCONTROL for automatic processing. Check the task’s result rate.
Do not assume that. Automatic calibration establishes head geometry and compensates changes such as temperature. Thickness performance belongs to the system.
