thicknessGAUGE C.C
thicknessGAUGE C.C: sensors and measurement devices by Micro-Epsilon for distance & displacement sensors.
Download the datasheet (opens in a new tab) Visit the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Protection class (DIN EN 60529) | ip54 |
|---|---|
| Operating temperature | 5–45 °C |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | C.C-2.5/200 eli-m-0ba2b244cd815d105d6a979b | C.C-2.5/400 eli-m-9b92e5d2ec27130500a01b3c | C.C-2.5/600 eli-m-c4b2808e97df64ec0519076e |
|---|---|---|---|
| Protection class (DIN EN 60529) | ip54 | ip40 | ip40 |
| System accuracy | 0.4 µm | 0.4 µm | 0.4 µm |
| Resolution | 0.04 µm | 0.04 µm | 0.04 µm |
| interface_specification | Analog 0-10V | Analog 0-10V | Analog 0-10V |
| Working distance | 0–32 mm | Not specified | 0–32 mm |
| Measuring rate | 10000 Hz | 10000 Hz | 10000 Hz |
| Maximum material width | 200 mm | 400 mm | 600 mm |
| Operating temperature | 5–45 °C | 5–45 °C | 5–40 °C |
| Operating range | 32 mm | 32 mm | 32 mm |
| quantity_specification | 2.5 mm thickness range, 200 mm measuring width, C-frame traversing gauge. | 2.5 mm thickness measuring range; 400 mm named measuring width. | 2.5 mm thickness range, 600 mm measuring width, C-frame traversing gauge. |
| Humidity | 5–95 %RH | 5–95 %RH | 5–95 %RH |
| Interfaces | profinet | ethernet | profinet |
| source_system_calibration_type | Automatic | Automatic | Automatic |
| source_maximum_travel_path_mm | 380 mm | 580 mm | 780 mm |
| Storage temperature | -20–65 °C | -20–65 °C | -20–65 °C |
| Measuring range | 2.5 mm | Not specified | Not specified |
| source_repeatability_basis | Not specified | Repeatability not stated in the reviewed official source. | Not specified |
| source_sampling_rate_basis | Not specified | Official maximum measurement or output rate: 10,000 Hz. | Not specified |
| ADC sampling rate | Not specified | 10000 samples/s | Not specified |
| Status | Active | Active | Active |
| Datasheet | PDF — C.C-2.5/200 (opens in a new tab) | PDF — C.C-2.5/400 (opens in a new tab) | PDF — C.C-2.5/600 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services

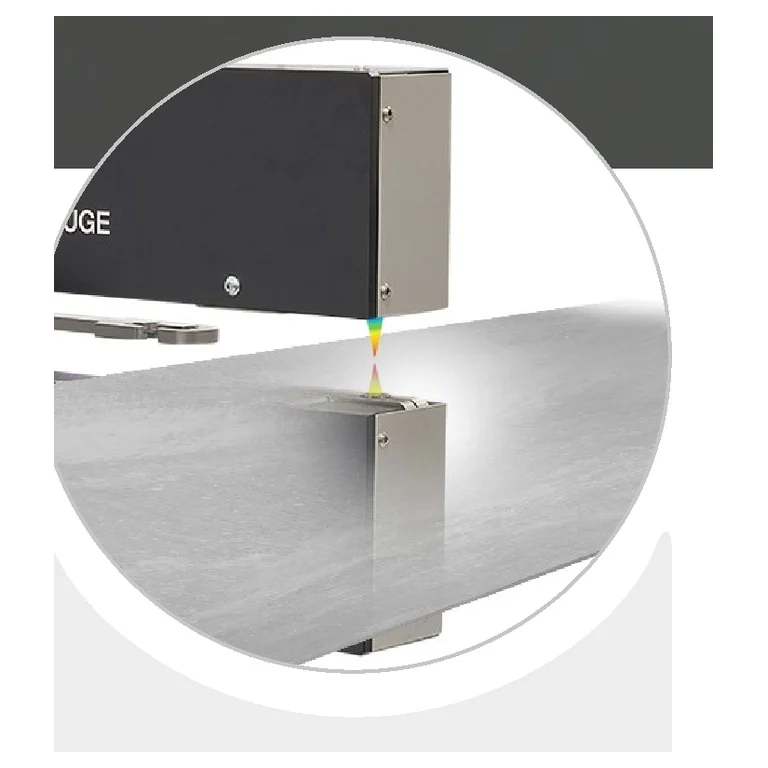

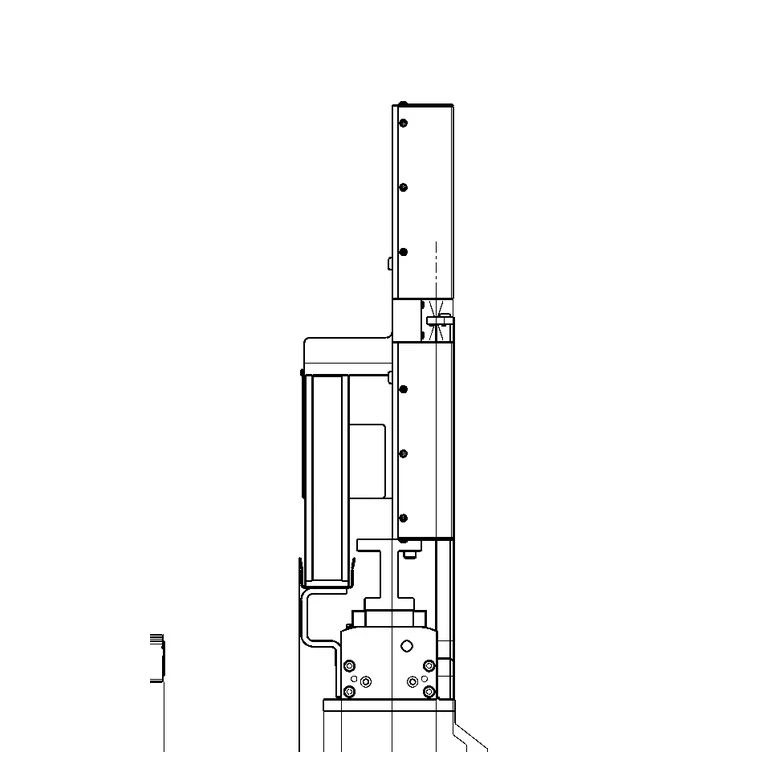

Two opposed chromatic-confocal sensors calculate thickness using calibrated geometry. It is a thickness system, not a single confocal head.
The catalogue includes shiny/specular surfaces. Select for thickness span, surface, metrological requirement and complete-system measuring rate.

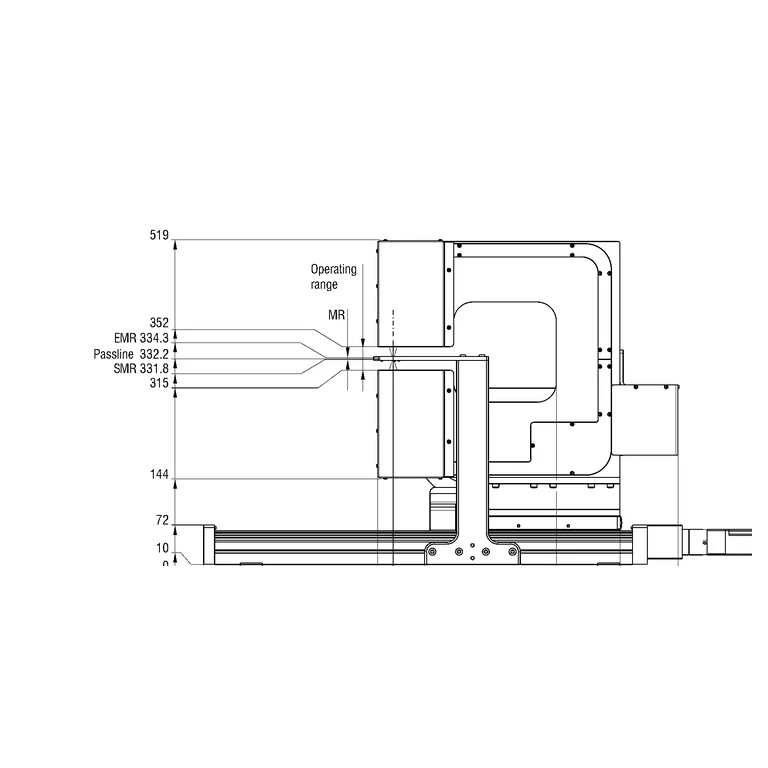

No. Thickness span, inter-head operating gap and measuring width are separate table/drawing dimensions. Match all three.
It moves the frame between parking and measurement and supports traversing/fixed-track operation. The parking position contains the automatic-calibration standard.
Use the system’s own System accuracy and conditions. Alignment, calibration, mechanics and processing contribute; a single-head value is not a substitute.
