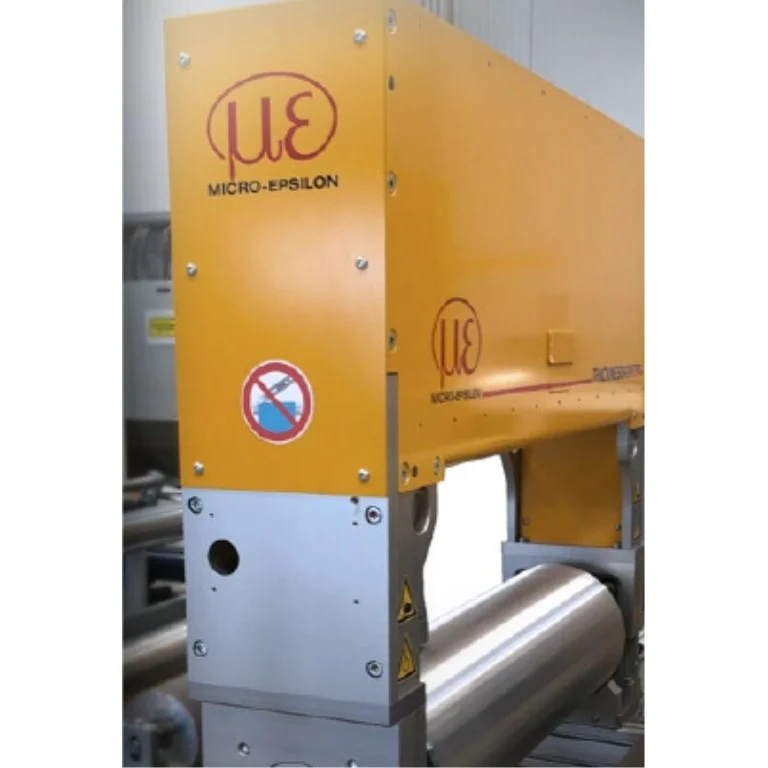

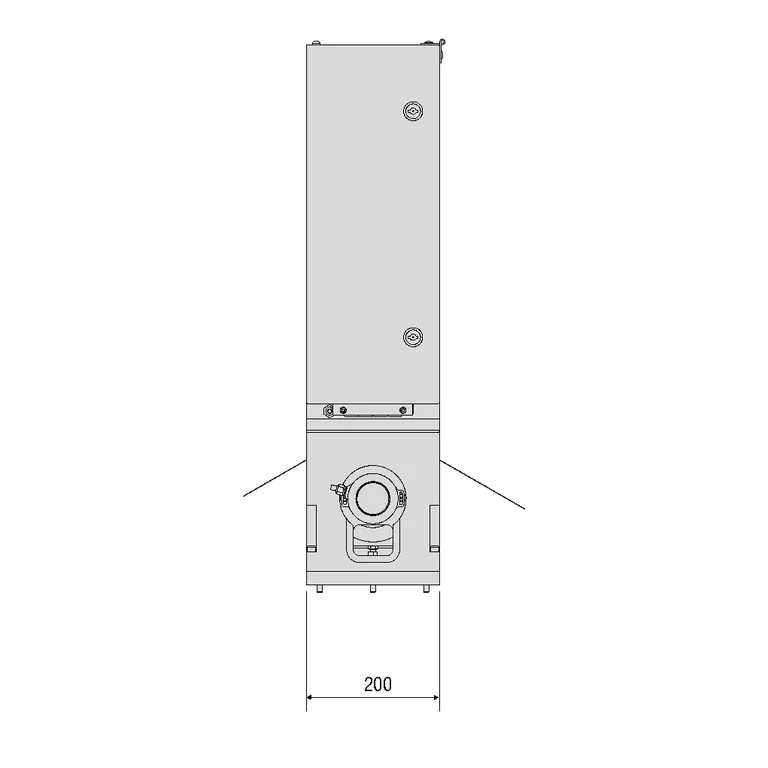

thicknessGAUGE O.EC System
thicknessGAUGE O.EC: system by Micro-Epsilon.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Protection class (DIN EN 60529) | ip40 |
|---|
Models in the series
One column per model: what differs between the models of the series.
| Parameter | O.EC-5/1000 eli-m-42b8775ffffcf13d747d0684 | O.EC-5/1250 eli-m-c6da9b0cb55233377457baaa | O.EC-5/500 eli-m-dc337a68e06910ff72cb5895 | O.EC-5/750 eli-m-3b80ad254ade5d62693e4de3 |
|---|---|---|---|---|
| Protection class (DIN EN 60529) | ip54 | ip40 | ip54 | ip40 |
| Resolution | 0.045 µm | 0.045 µm | 0.045 µm | 0.045 µm |
| interface_specification | Analog 0-10V | Analog 0-10V | Digital I/O | Analog 0-10V |
| Resolution (% FSO) | 0.0015 % | 0.0015 % | 0.0015 % | 0.0015 % |
| Interfaces | ethercat | ethernet | ethercat | ethercat |
| source_repeatability_basis | Repeatability not stated in the reviewed official source. | Not specified | Repeatability not stated in the reviewed official source. | Repeatability not stated in the reviewed official source. |
| Operating temperature | 5–45 °C | 5–45 °C | 5–45 °C | 5–45 °C |
| Measuring rate | 3900 Hz | 3900 Hz | 3900 Hz | 3900 Hz |
| System accuracy | 0.3 µm | 0.3 µm | 0.3 µm | 0.3 µm |
| source_sampling_rate_basis | Official maximum measurement or output rate: 3,900 Hz. | Not specified | Official maximum measurement or output rate: 3,900 Hz. | Official maximum measurement or output rate: 3,900 Hz. |
| Measuring range | 3 mm | 3 mm | 3 mm | 3 mm |
| quantity_specification | 3 mm thickness measuring range; 1000 mm named measuring width; article 4350123.12. | O-frame with 1250 mm maximum measuring width and traversing/fixed-track measurement. | 3 mm thickness measuring range; 500 mm named measuring width; article 4350123.10. | 3 mm thickness measuring range; 750 mm named measuring width; article 4350123.11. |

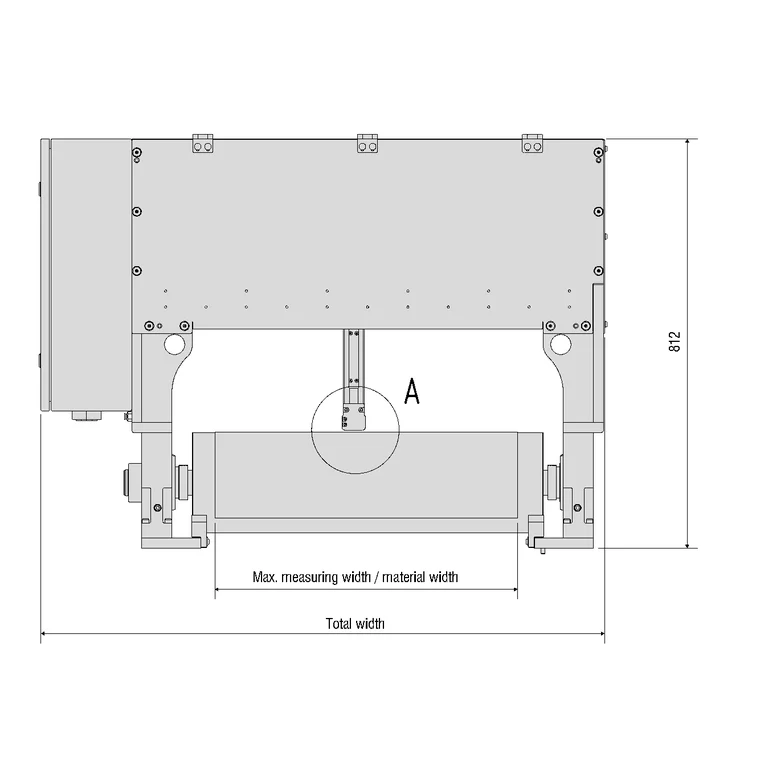

| Maximum material width | 1000 mm | 1250 mm | 500 mm | 750 mm |
| ADC sampling rate | 3900 samples/s | Not specified | 3900 samples/s | 3900 samples/s |
| Working distance | Not specified | 0–4.5 mm | Not specified | Not specified |
| Status | Active | Active | Active | Active |
| Datasheet | PDF — O.EC-5/1000 (opens in a new tab) | PDF — O.EC-5/1250 (opens in a new tab) | PDF — O.EC-5/500 (opens in a new tab) | PDF — O.EC-5/750 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
It combines capacitive and eddy-current measurement using combiSENSOR and a measuring roller. The two distance signals determine thickness.
Yes. It requires a known-thickness reference and the capacitive calculation depends on dielectric properties. A material change need not retain calibration.
No. The table separately states operating gap and thickness span. Also match material width and traverse motion.
No. Fixed-track and longitudinal measurement are documented alongside transverse scanning. Choose the mode for the process.
Frame, roller/control cabinet, combiSENSOR, motion/control components, industrial PC and software. Line communication and additional equipment depend on configuration.
