C5 Force
C5: sensors and measurement devices by HBK for force.
This series on the HBK site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Force range | 0–20000000 N |
|---|---|
| ADC sampling rate | 450–40000 samples/s |

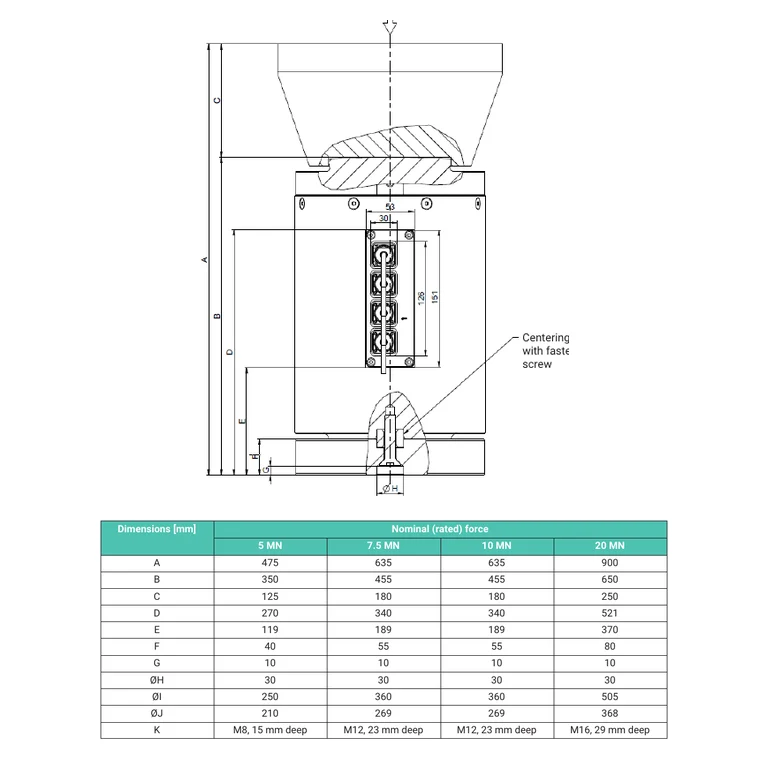

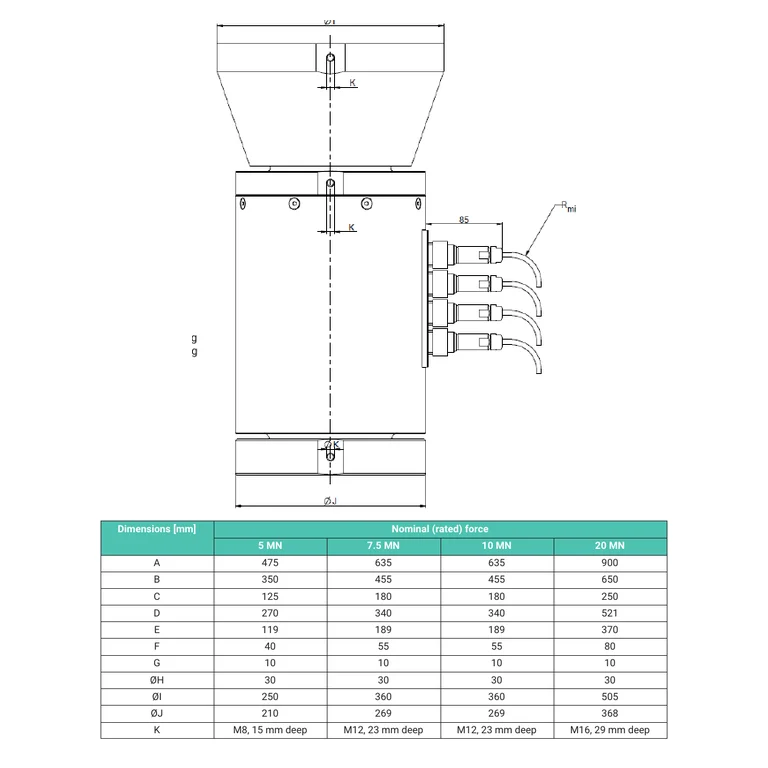

Models in the series
One column per model: what differs between the models of the series.
| Parameter | C5 eli-m-912441ea22763f45e8bf9508 | C5-10MN eli-m-1417bac3c76ff5d3a35ac009 | C5-20MN eli-m-2d431e4202fdf34f84940e7c | C5-5MN eli-m-1fd9efbeef5596a158905e58 | C5-7p5MN eli-m-a9321dbf5c2f803efce5cc1f |
|---|---|---|---|---|---|
| quantity_specification | Configurable family; exact public ordering-code table not exposed on the current HBK page. | 10 MN rated capacity = 10,000 kN (1,019.7162 t mass equivalent at standard gravity); compression | 20 MN rated capacity = 20,000 kN (2,039.4324 t mass equivalent at standard gravity); compression | 5 MN rated capacity = 5,000 kN (509.8581 t mass equivalent at standard gravity); compression | 7.5 MN rated capacity = 7,500 kN (764.7872 t mass equivalent at standard gravity); compression |
| interface_specification | Unknown | Analog 0-10V | Analog 0-10V | Digital I/O | Digital I/O |
| Interfaces | Not specified | ethernet | profinet | profinet | profinet |
| Force range | Not specified | 0–10000000 N | 0–20000000 N | 0–5000000 N | 0–7500000 N |
| ADC sampling rate | Not specified | 19200 samples/s | 450 samples/s | 40000 samples/s | 40000 samples/s |
| source_sampling_rate_basis | Not specified | ClipX fixed internal sampling rate; verify the configured filter and usable output bandwidth | MX840B maximum per-channel sample rate; sensor mechanics and filter settings can reduce usable bandwidth | DMP41 selectable result rate, intended for reference and calibration measurements | MX840B maximum per-channel sample rate; sensor mechanics and filter settings can reduce usable bandwidth |
| Status | Active | Active | Active | Active | Active |
