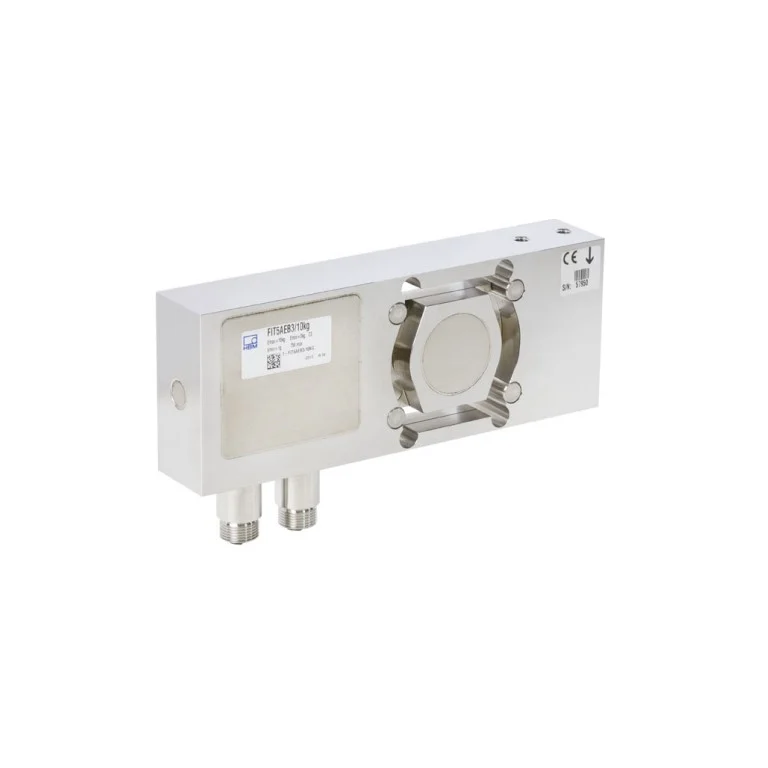

1-FIT5AEC3/50KG-1
From the FIT5A series
FIT5A: sensors and measurement devices by HBK for force.
- Force range
- 0–490.3325 N
Technical specification
Every engineering figure, laid out to scan quickly
| interface_specification | Unknown |
|---|---|
| quantity_specification | Actions: Not sellable online; Maximum capacity: 110.23 lb; Minimum verification interval (Vmin): 5 g; Special feature: Integrated overload protection |
| Ordering options and constraints | K-FIT5A — capacity: 11.02 lb, 22.05 lb, 44.09 lb, 66.1 lb, 110.2 lb; minimum_verification_interval_vmin: 0.5 g, 1 g, 2 g, 0.2 g, 5 g; special_feature: Integrated overload protection, Plug connector; constraints: [] |
| source_sampling_rate_limited_by_readout | True |
| source_sampling_rate_basis | The selected HBK conditioner, filter and DAQ determine the digital sample rate. |
| source_repeatability_basis | Use the individual calibration certificate and installed-chain verification; no unsupported scalar repeatability is inferred. |
| source_linearity_basis | No single accuracy class is inferred when it is not shown for the exact ordering code. |
