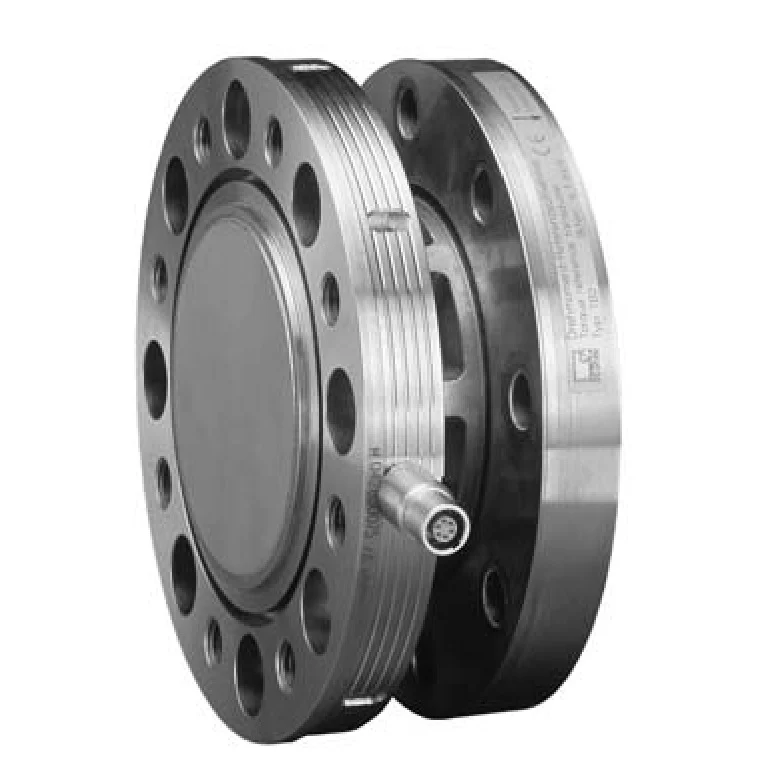

TB2 Torque
TB2: sensors and measurement devices by HBK for torque.
This series on the HBK site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Torque range | -10000–10000 Nm |
|---|---|
| ADC sampling rate | 450–40000 samples/s |

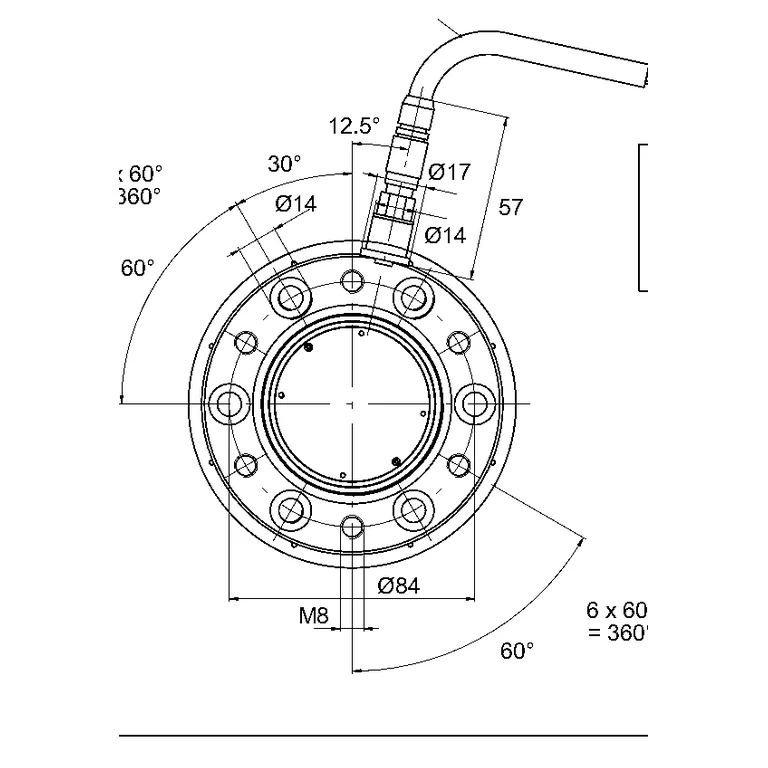

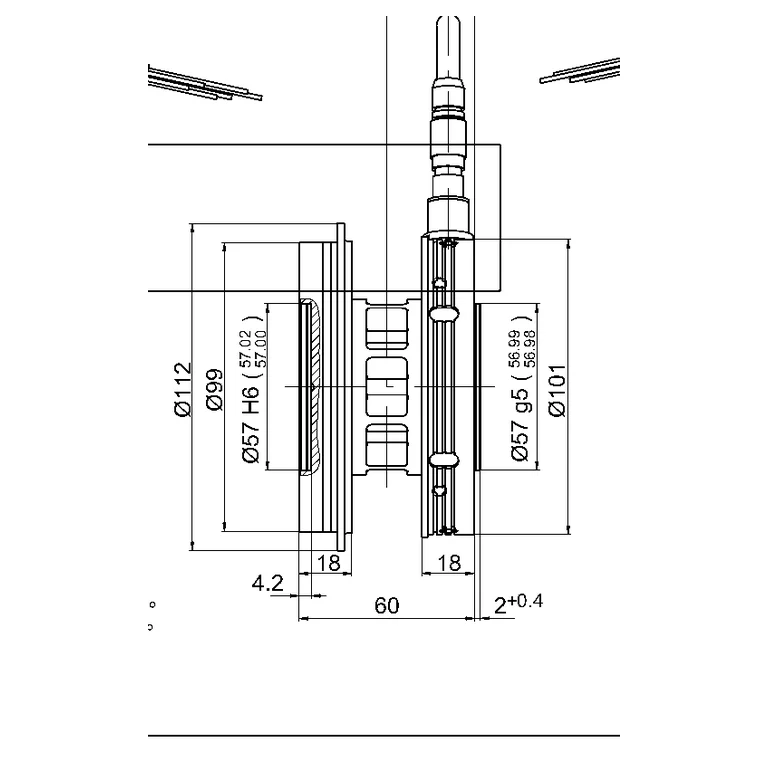

Models in the series
One column per model: what differs between the models of the series.
| Parameter | 1-TB2/100NM eli-m-58f48ef3da98e6394ed318c0 | 1-TB2/10KNM eli-m-f5384c92c7efcc8bdcf9fe7a | 1-TB2/1KNM eli-m-995969210160a6c91b532d08 | 1-TB2/200NM eli-m-573028f1b36c75942b5548a2 | 1-TB2/2KNM eli-m-3964341685689eca5a3ff038 | 1-TB2/3KNM eli-m-3fa9b40ab48fd05f60020cdf | 1-TB2/500NM eli-m-aff7ef4ed78e0009ac7ab9bb | 1-TB2/5KNM eli-m-6a1468c419d5e636281f251a | TB2-100Nm eli-m-3a331e2dcd3f31db0cdc6bcc | TB2-10kNm eli-m-299c83a3224405b0f38f4c2a | TB2-1kNm eli-m-a18fbc8006c7575e01745ea9 | TB2-200Nm eli-m-b69e49deeaef513053d8e2c5 | TB2-2kNm eli-m-f3a3699351b523746c60b6d7 | TB2-500Nm eli-m-860b354ee67ca271e965b3e7 | TB2-5kNm eli-m-d7df828b110fd25f6560e046 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Torque range | -100–100 Nm | -10000–10000 Nm | -1000–1000 Nm | -200–200 Nm | -2000–2000 Nm | -3000–3000 Nm | -500–500 Nm | -5000–5000 Nm | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified |
| quantity_specification | Actions: Not sellable online; Measurement range: 885 in-lb; Size (length): 3.31 in | Actions: Not sellable online; Measurement range: 88507 in-lb; Size (length): 7.72 in | Actions: Not sellable online; Measurement range: 8851 in-lb; Size (length): 4 in | Actions: Not sellable online; Measurement range: 1770 in-lb; Size (length): 3.31 in | Actions: Not sellable online; Measurement range: 17701 in-lb; Size (length): 5.12 in | Actions: Not sellable online; Measurement range: 26552 in-lb; Size (length): 5.12 in | Actions: Not sellable online; Measurement range: 4425 in-lb; Size (length): 4 in | Actions: Not sellable online; Measurement range: 44254 in-lb; Size (length): 6.12 in | ±100 Nm rated torque; static / reaction installation | ±10 kNm rated torque; static / reaction installation | ±1 kNm rated torque; static / reaction installation | ±200 Nm rated torque; static / reaction installation | ±2 kNm rated torque; static / reaction installation | ±500 Nm rated torque; static / reaction installation | ±5 kNm rated torque; static / reaction installation |
| interface_specification | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Unknown | Digital I/O | RS422 / RS485 | Analog 0-10V | RS422 / RS485 | RS422 / RS485 | RS422 / RS485 | RS422 / RS485 |
| Torque range | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | -100–100 Nm | -10000–10000 Nm | -1000–1000 Nm | -200–200 Nm | -2000–2000 Nm | -500–500 Nm | -5000–5000 Nm |
| Interfaces | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | ethernet | ethercat | ethercat | ethercat | ethercat | ethernet | ethernet |
| Accuracy (% FSO) | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % | 0.02 % |
| ADC sampling rate | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | 19200 samples/s | 450 samples/s | 40000 samples/s | 40000 samples/s | 40000 samples/s | 40000 samples/s | 450 samples/s |
| source_sampling_rate_basis | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | DMP41 selectable result rate, intended for reference and calibration measurements | MX840B maximum per-channel sample rate; sensor mechanics and filter settings can reduce usable bandwidth | MX840B maximum per-channel sample rate; sensor mechanics and filter settings can reduce usable bandwidth | ClipX fixed internal sampling rate; verify the configured filter and usable output bandwidth | ClipX fixed internal sampling rate; verify the configured filter and usable output bandwidth | DMP41 selectable result rate, intended for reference and calibration measurements | ClipX fixed internal sampling rate; verify the configured filter and usable output bandwidth |
| source_torque_speed_measurement | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | False | False | False | False | False | False | False |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
No. The table specifies standard IP54 and optional IP67. Associate the rating with the configuration rather than the series name alone.
Accuracy class 0.02 differs from classification under DIN 51309 or EA-10/14. The latter is documented in conjunction with an appropriate calibration certificate.
No. The table separates torque intervals of 0–20%, above 20–60%, and above 60–100% of nominal torque.
The table specifies 1 mV/V nominal output and bridge excitation. Use a compatible amplifier and preserve the particular transducer’s sensitivity and calibration.
No. The nominal range is +10 to +60 °C, while the operating range is −10 to +80 °C. For reference measurements, check temperature effects on zero and sensitivity as well as operating limits.
