Family 6802
Family 6802: sensors and measurement devices by HBK for vibration.
Visit the HBK site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Acceleration sensitivity | 0.2–12 mV/g |
|---|
Models in the series
One column per model: what differs between the models of the series.
| Parameter | -6802–001- eli-m-abaf8a000ed99d5347d0c57c | -6802–006- eli-m-c42bf229473428f561d7d72a |
|---|---|---|
| interface_specification | Unknown | Unknown |
| Number of axes | 1 | 1 |
| Number of measurement channels | 1 | 1 |
| Acceleration sensitivity | 12 mV/g | 0.2 mV/g |
| Operating temperature | -54–150 °C | -54–150 °C |
| quantity_specification | ±500 g indexed capacity; Uniaxial; Miniature/ESS; Adhesive mounting | ±25000 g indexed capacity; Uniaxial; Miniature/ESS; Adhesive mounting |
| Frequency response | 0.2–60000000 Hz | 0.2–60000000 Hz |
| Status | Active | Active |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services

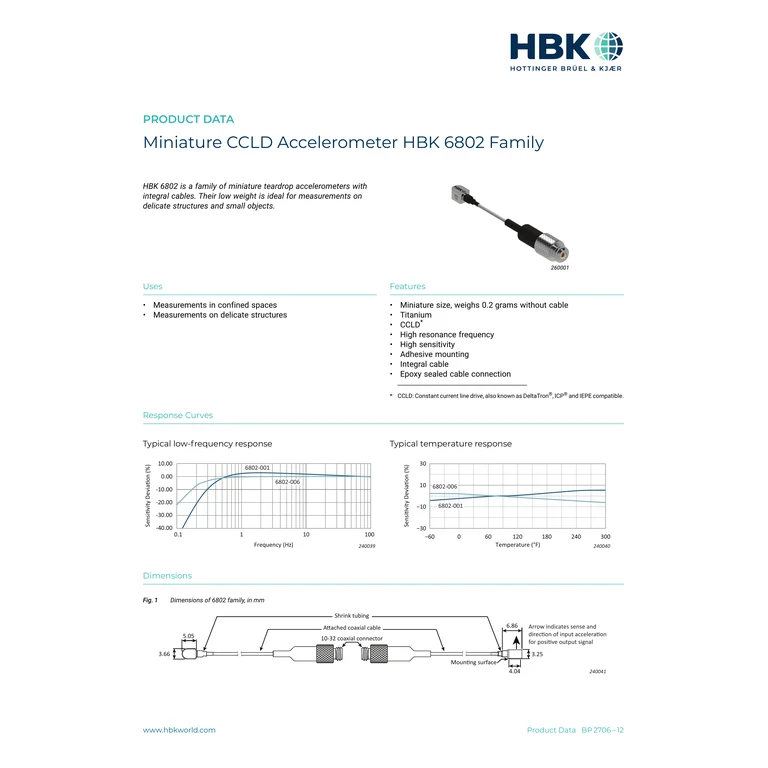

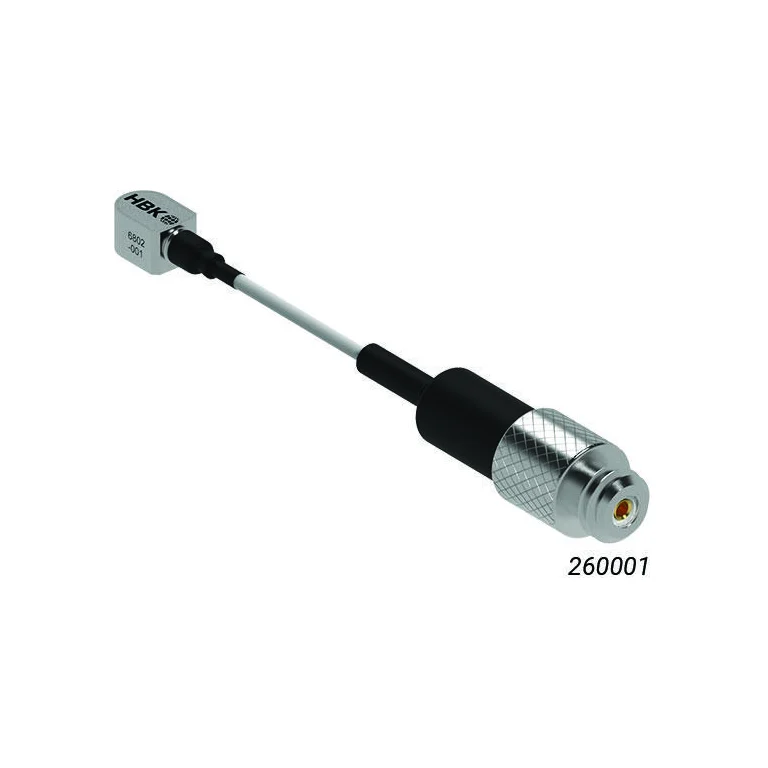

The 6802 family serves single-axis measurements on delicate structures and in confined spaces. Sensor weight excluding the cable is 0.2 g.
6802-001 offers 9–14 mV/g sensitivity. 6802-006 has 0.2 mV/g sensitivity and a range up to 25,000 g peak for higher-acceleration tests.

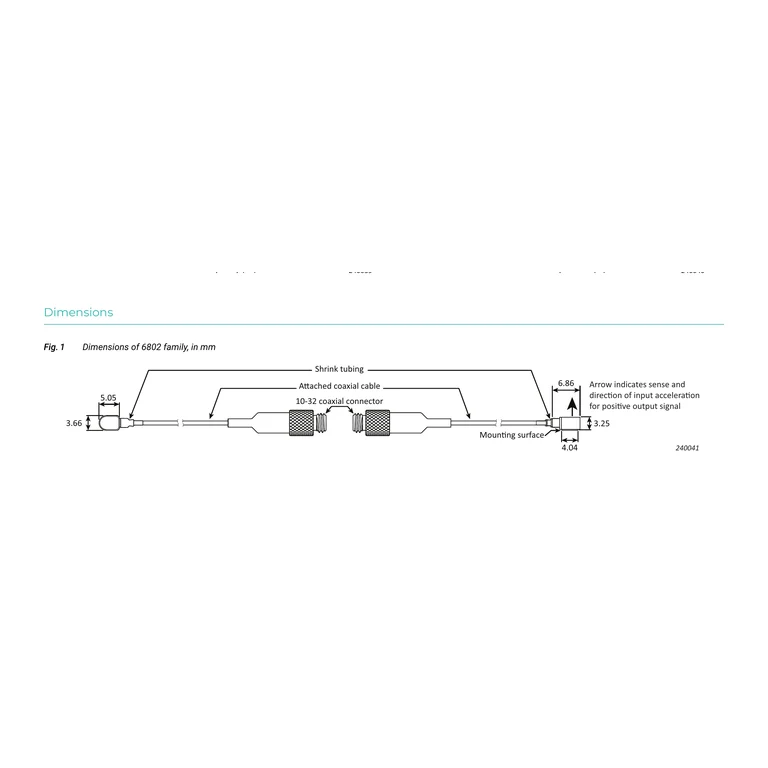

Use a CCLD input providing 2–20 mA and 18–30 V compliance. The integral cable terminates in a 10-32 coaxial connector.
The sensor uses adhesive mounting on a flat surface. Its small size and low weight suit tests where sensor mass could influence the structure.
Both versions are specified up to 20 kHz at ±10% frequency-response tolerance. Resonance above 95 kHz is a separate property, not the usable measurement band.
