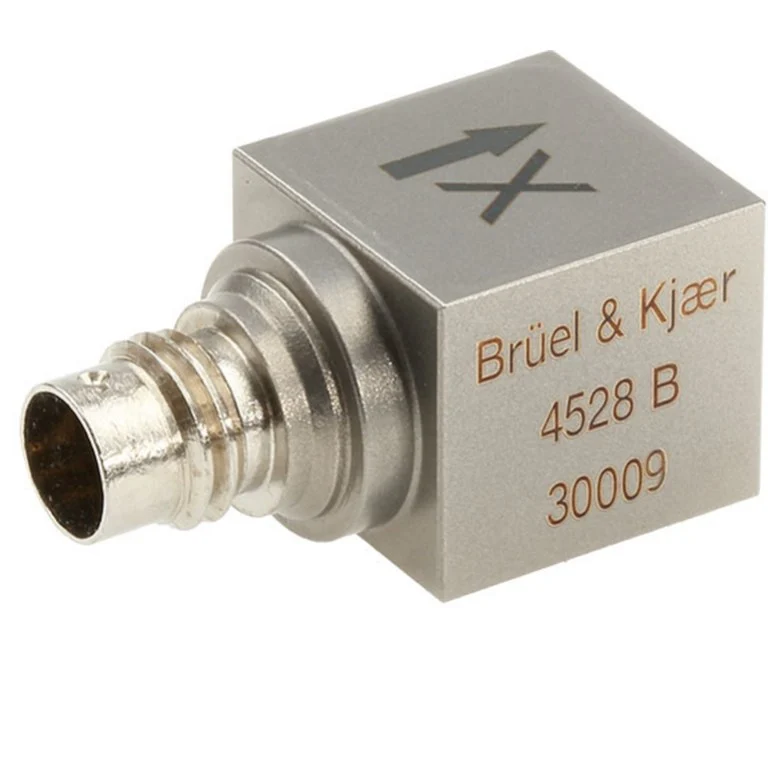

TYPE 4528-B
TYPE 4528-B: sensors and measurement devices by HBK for vibration.
Visit the HBK site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Acceleration sensitivity | 0.98–98 mV/g |
|---|
Models in the series
One column per model: what differs between the models of the series.
| Parameter | -4528-B– eli-m-eb3f3e60adfbe527fde5d79e | -4528-B-001- eli-m-b3a9b9d77e40e30187481769 | -4528-B-003- eli-m-fd5759f94bc089a6ea1a7002 |
|---|---|---|---|
| Number of axes | 3 | 3 | 3 |
| interface_specification | Unknown | Unknown | Unknown |
| Operating temperature | -60–175 °C | -60–175 °C | -60–175 °C |
| Number of measurement channels | 3 | 3 | 3 |
| Frequency response | 0.2–10000 Hz | 0.2–10000 Hz | 0.2–10000 Hz |
| quantity_specification | ±714 g indexed capacity; Triaxial; Speciality; Adhesive mounting | ±71 g indexed capacity; Triaxial; Miniature/ESS; Adhesive mounting | ±5100 g indexed capacity; Triaxial; Speciality; Adhesive mounting |
| Acceleration sensitivity | 9.800000000000001 mV/g | 98 mV/g | 0.98 mV/g |
| Status | Active | Active | Active |
