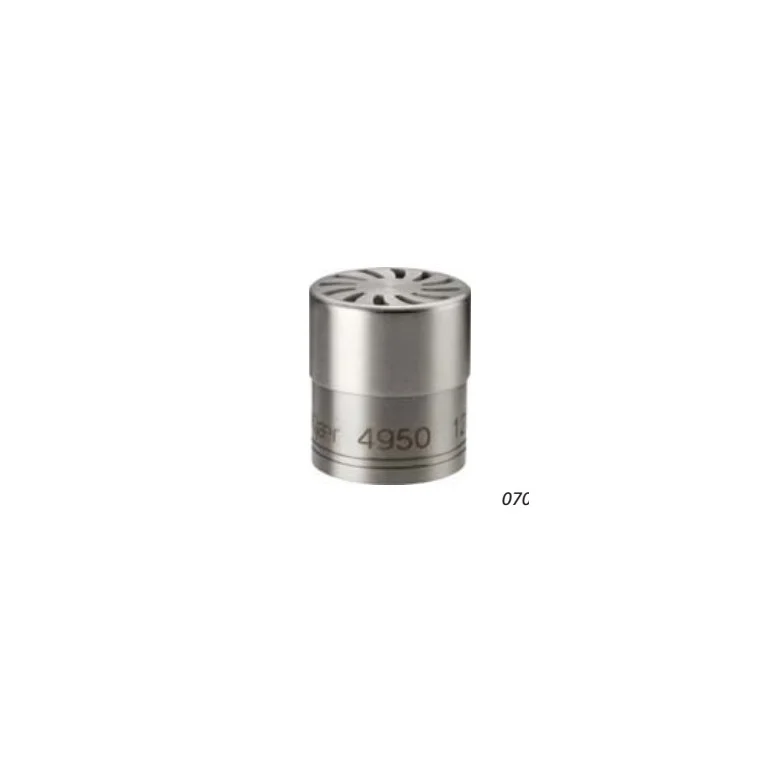

4950
From the HBK measurement microphone cartridges series
HBK measurement microphone cartridges: sensors and measurement devices by HBK for microphones.
- Frequency response
- 6.5–16000 Hz
- Number of measurement channels
- 1
- Microphone sensitivity
- 50 mV/Pa
- Maximum SPL
- 142 dB SPL
Technical specification
Every engineering figure, laid out to scan quickly
| Microphone diameter | 0.5 inch |
|---|---|
| Microphone polarization | v_baccc3c858728f1b |
| Microphone sensitivity | 50 mV/Pa |
| A-weighted inherent noise | 15 dB(A) |
| Maximum SPL | 142 dB SPL |
| Frequency response | 6.5–16000 Hz |
| Interfaces | ethernet |
| Number of measurement channels | 1 |
| quantity_specification | 6.5-16,000 Hz; 15-142 dB SPL. |
| ADC sampling rate | 131072 samples/s |
| source_sampling_rate_basis | The stated microphone bandwidth is retained. The cited compatible DAQ tier is selected so that its sample rate exceeds the microphone upper-band requirement. |
| Sound field | v_8386d113d451ff50 |
| source_acoustic_standard | IEC 61094 measurement microphone |
