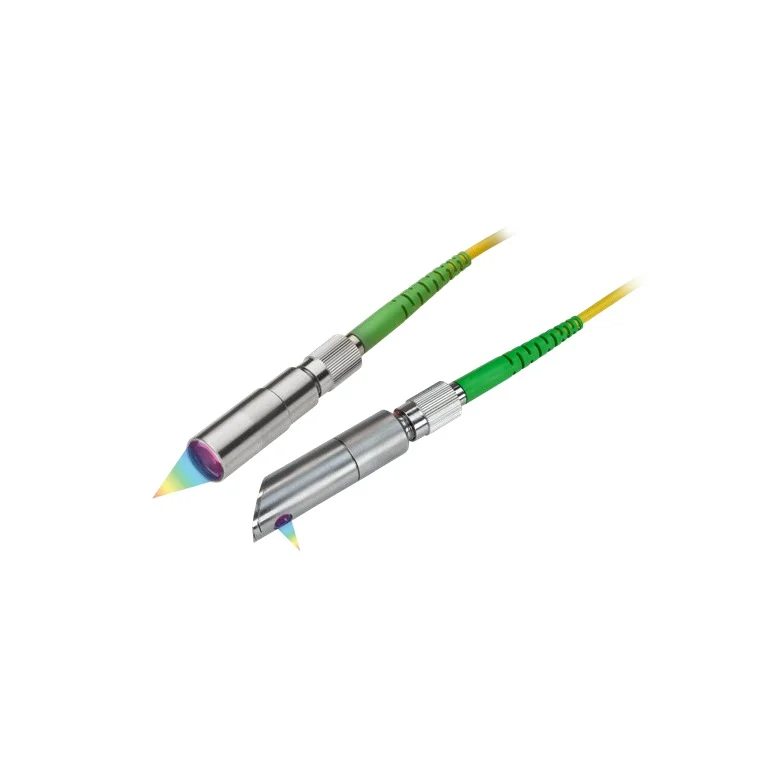

IFS2404
IFS2404: sensors and measurement devices by Micro-Epsilon for distance & displacement sensors.
Visit the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Resolution | 0.006–0.5 µm |
|---|---|
| Number of measurement channels | 1–2 |
| Light spot diameter | 0.01–0.05 mm |
| Maximum measuring angle | 5.5–25 deg |
| Start of measuring range | 9.6–61 mm |
| Minimum target thickness | 0.05–0.9 mm |
| Measuring range | 1–18 mm |
| Linearity | 0.25–5.4 µm |
| Weight | 0.02–0.15 kg |
| Accuracy | 0.25–4.5 µm |
| ADC sampling rate | 8000–30000 samples/s |

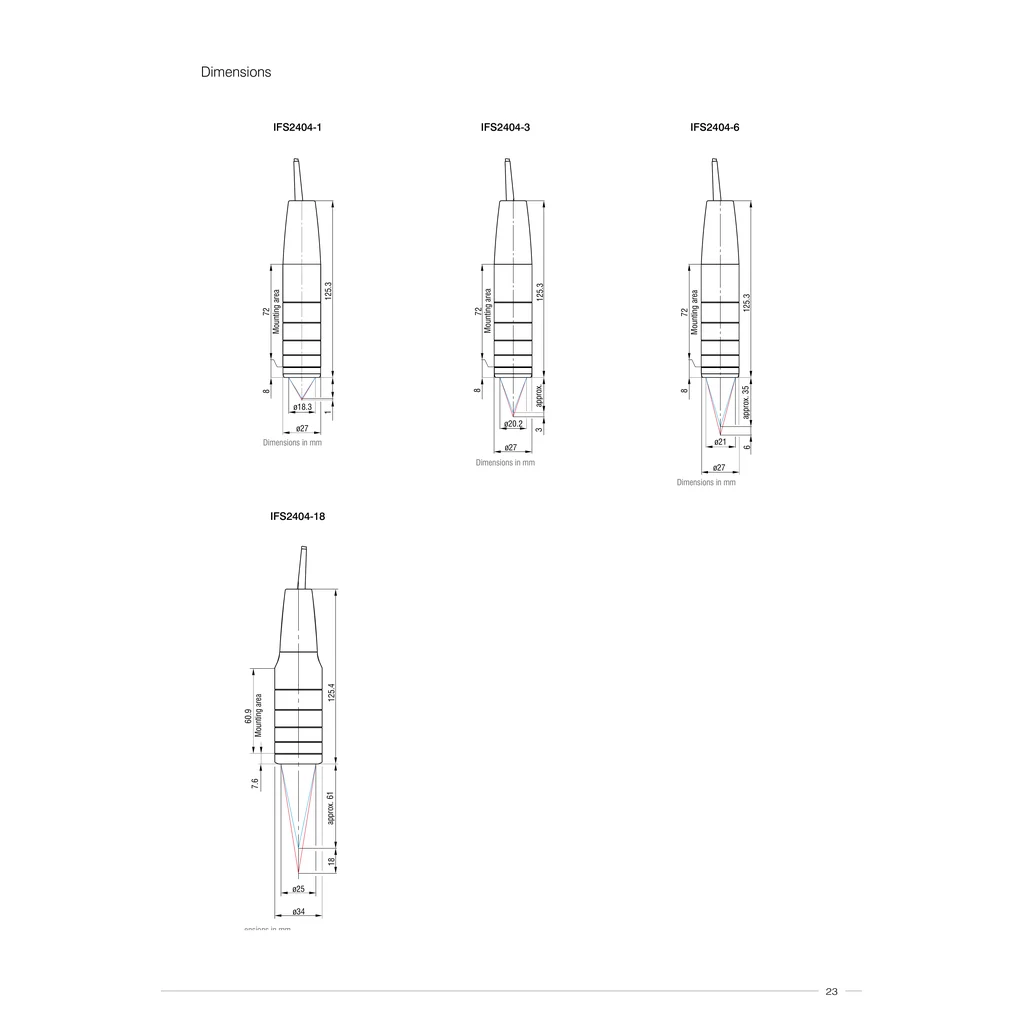

Models in the series
One column per model: what differs between the models of the series.

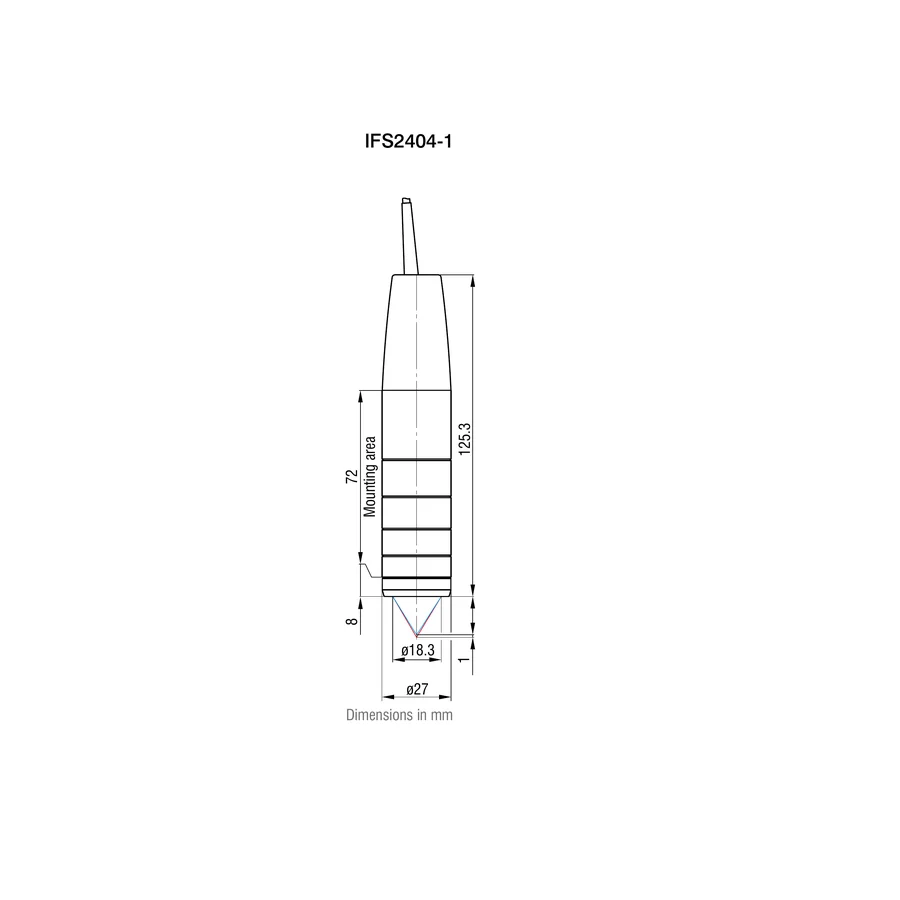

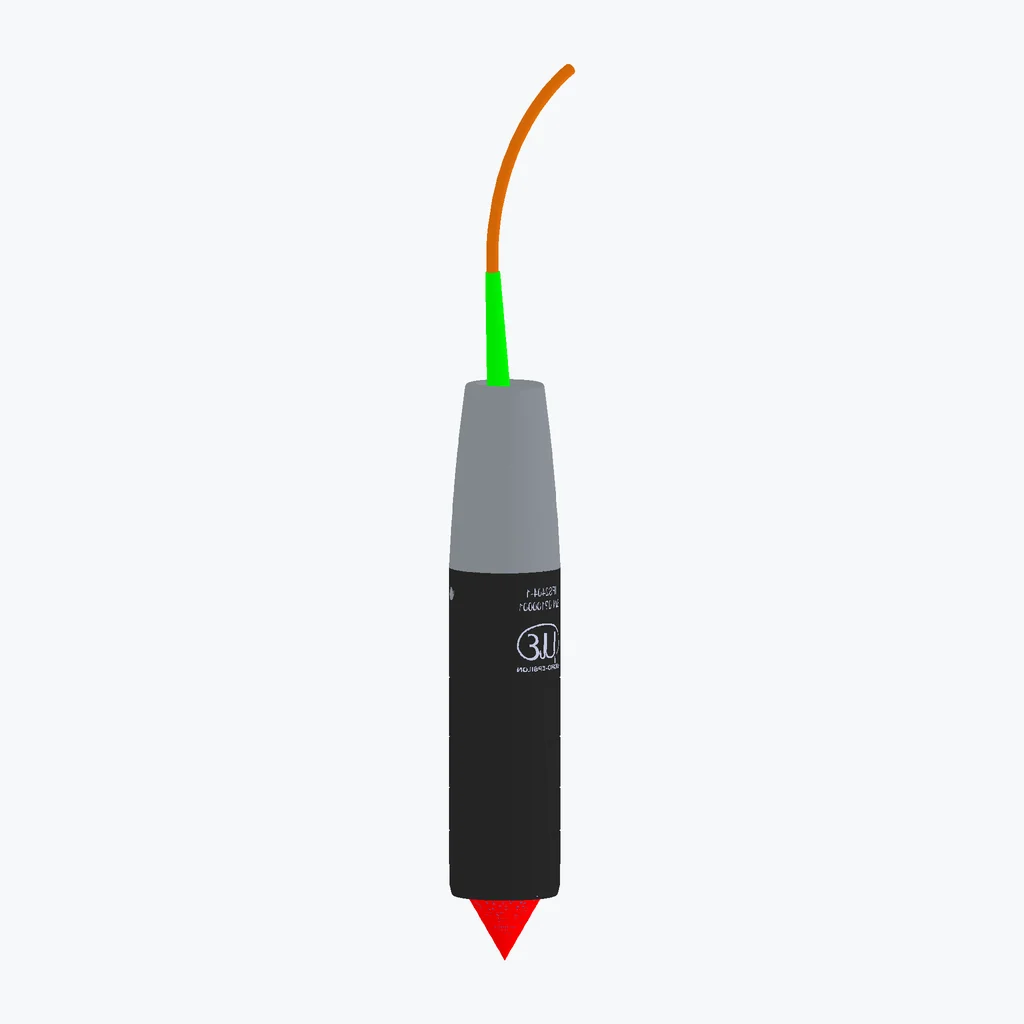

| Parameter | IFS2404-1 eli-m-722f692b35b28e1e567308b5 | IFS2404-18 eli-m-02a706916c740b39a7519e2c | IFS2404-2 eli-m-d848b171ab629c84f96e3800 | IFS2404-2(001) eli-m-86f319ebb1a60b6ee29e9b5e | IFS2404-3 eli-m-c2414f4be6632cbc91367c55 | IFS2404-4 eli-m-69b9034c6aa811ff60a4d227 | IFS2404-6 eli-m-c1d22b47d2e72c4d45d551f7 | IFS2404-8 eli-m-2a67ed8dd4bdede09a7dd6fb | IFS2404/90-2 eli-m-f4ecd3a62a072b3ce25eb468 | IFS2404/90-2(001) eli-m-310a36161e74b44126889d4a |
|---|---|---|---|---|---|---|---|---|---|---|
| quantity_specification | 1 mm net measuring range | 18 mm net measuring range | 2 mm net measuring range | Not specified | 3 mm net measuring range | 4 mm net measuring range | 6 mm net measuring range | 0-8 mm mapped range. Official confocalDT sensor range. | 2 mm net measuring range | Not specified |
| Interfaces | ethernet | ethernet | ethercat | Not specified | ethercat | ethercat | ethernet | ethercat | ethercat | Not specified |
| Resolution | 0.006 µm | 0.05 µm | 0.125 µm | 0.02 µm | 0.018 µm | 0.03999999999999999 µm | 0.25 µm | 0.5 µm | 0.02 µm | 0.125 µm |
| Number of measurement channels | 1 | 2 | 1 | Not specified | 1 | 2 | 2 | 1 | 2 | Not specified |
| Storage temperature | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C | -20–70 °C |
| Light spot diameter | 0.012 mm | 0.05 mm | 0.01 mm | 0.01 mm | 0.018 mm | 0.01 mm | 0.024 mm | 0.036 mm | 0.01 mm | 0.01 mm |
| Maximum measuring angle | 25 deg | 9 deg | 12 deg | 12 deg | 19 deg | 12 deg | 10 deg | 5.5 deg | 12 deg | 12 deg |
| source_linearity_basis | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | Not specified | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. | Not specified |
| Start of measuring range | 15 mm | 61 mm | 14 mm | 14 mm | 25 mm | 14.7 mm | 35 mm | 50 mm | 9.6 mm | 9.6 mm |
| Minimum target thickness | 0.05 mm | 0.9 mm | 0.1 mm | 0.1 mm | 0.15 mm | 0.2 mm | 0.3 mm | 0.4 mm | 0.1 mm | 0.1 mm |
| source_target_material | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) | reflective, diffuse as well as transparent surfaces (e.g. glass) |
| source_sampling_rate_basis | IFC2412: 8,000 measurements/s per synchronous channel | IFC2465MP: 30,000 measurements/s | IFC2417: 25,000 measurements/s per synchronous channel | Not specified | IFC2417: 25,000 measurements/s per synchronous channel | IFC2411: 8,000 measurements/s | IFC2412: 8,000 measurements/s per synchronous channel | IFC2417: 25,000 measurements/s per synchronous channel | IFC2421MP: 10,000 measurements/s | Not specified |
| interface_specification | Digital I/O | RS422 / RS485 | RS422 / RS485 | Not specified | Analog 0-10V | Analog 0-10V | 4-20mA | Digital I/O | 4-20mA | Not specified |
| Protection class (DIN EN 60529) | ip40 | ip64 | ip64 | ip40 | ip64 | ip64 | ip64 | ip64 | ip40 | ip64 |
| Operating temperature | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C | 5–70 °C |
| source_numerical_aperture | 0.45 | 0.17 | 0.25 | 0.25 | 0.35 | 0.2 | 0.18 | 0.11 | 0.25 | 0.25 |
| Measuring range | 1 mm | 18 mm | 2 mm | 2 mm | 3 mm | 4 mm | 6 mm | 8 mm | 2 mm | 2 mm |
| Linearity | 0.25 µm | 5.4 µm | 0.5 µm | 0.5 µm | 0.75 µm | 1 µm | 1.5 µm | Not specified | 0.5 µm | Not specified |
| source_mounting_description | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) | Not specified | Radial clamping (mounting adapter see accessories) | Radial clamping (mounting adapter see accessories) |
| Weight | 0.1 kg | 0.15 kg | 0.02 kg | 0.04 kg | 0.1 kg | 0.02 kg | 0.1 kg | 0.075 kg | 0.03 kg | 0.04 kg |
| Contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact | Non-contact |
| Accuracy | 0.25 µm | 4.5 µm | 0.5 µm | Not specified | 0.75 µm | 1 µm | 1.5 µm | 0.5 µm | 0.5 µm | Not specified |
| ADC sampling rate | 10000 samples/s | 30000 samples/s | 30000 samples/s | Not specified | 10000 samples/s | 10000 samples/s | 8000 samples/s | 10000 samples/s | 25000 samples/s | Not specified |
| source_sampling_rate_limited_by_readout | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | True | Not specified | Not specified |
| source_sensor_beam_direction_deg | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | 90° lens | 90° lens |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
