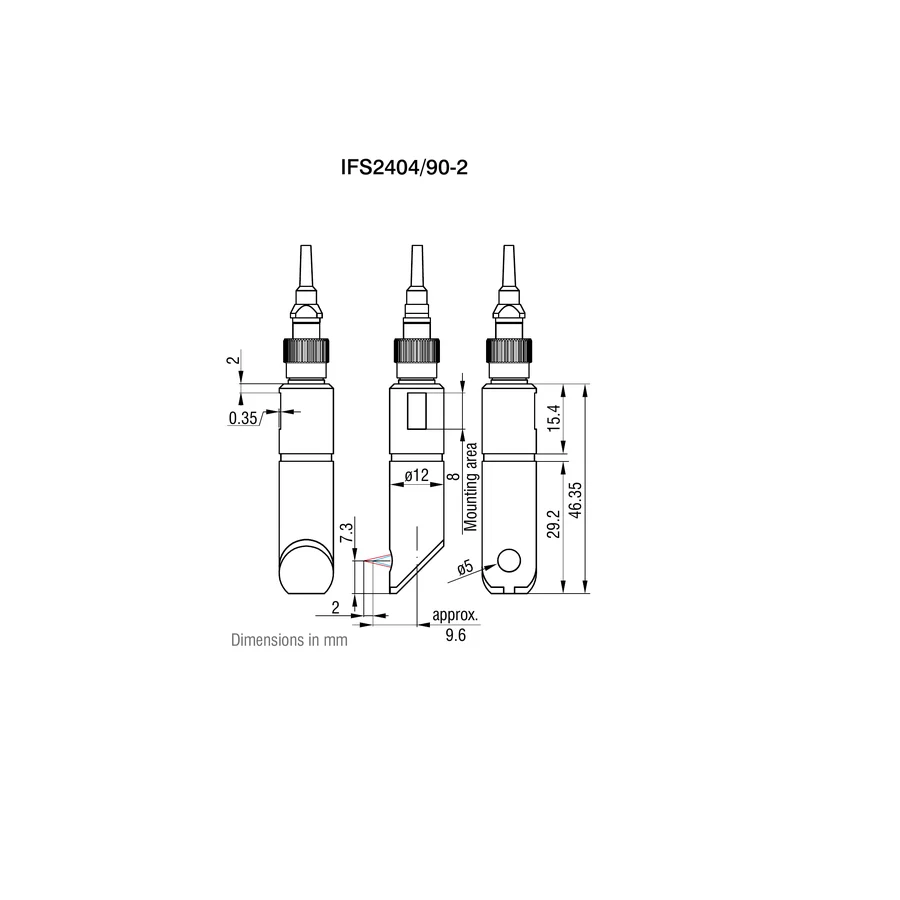

IFS2404/90-2
From the IFS2404 series
IFS2404: sensors and measurement devices by Micro-Epsilon for distance & displacement sensors.
- Number of measurement channels
- 2
Request a quote for this product
Build a matching system for this model
Schedule a demonstration
Talk to an expert
Visit the Micro-Epsilon site
(opens in a new tab)
Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 2 mm |
|---|---|
| Start of measuring range | 9.6 mm |
| Linearity | 0.5 µm |
| Resolution | 0.02 µm |
| Light spot diameter | 0.01 mm |
| Maximum measuring angle | 12 deg |
| source_numerical_aperture | 0.25 |
| Interfaces | ethercat |
| interface_specification | 4-20mA |
| Number of measurement channels | 2 |
| Storage temperature | -20–70 °C |
| Operating temperature | 5–70 °C |
| Protection class (DIN EN 60529) | ip40 |
| Weight | 0.03 kg |
| source_mounting_description | Radial clamping (mounting adapter see accessories) |
| quantity_specification | 2 mm net measuring range |
| Minimum target thickness | 0.1 mm |
| source_sensor_beam_direction_deg | 90° lens |
| source_target_material | reflective, diffuse as well as transparent surfaces (e.g. glass) |
| Protection class (DIN EN 60529) | ip64 |
| source_linearity_basis | https://www.micro-epsilon.com/fileadmin/download/products/cat--confocalDT--en-us.pdf published optical-probe linearity; axial resolution is not substituted for linearity. |
| interface_specification | Digital I/O |
| source_sampling_rate_basis | IFC2421MP: 10,000 measurements/s |
| interface_specification | Analog 0-10V |
| Interfaces | ethernet |
| interface_specification | RS422 / RS485 |
| Resolution | 0.125 µm |
| source_sampling_rate_basis | IFC2422MP: 10,000 measurements/s per synchronous channel |
| Number of measurement channels | 1 |
| source_sampling_rate_basis | IFC2465: 30,000 measurements/s |
| source_sampling_rate_basis | IFC2466MP: 30,000 measurements/s per synchronous channel |
| source_sampling_rate_basis | IFC2416: 25,000 measurements/s |
| Interfaces | profinet |
| source_sampling_rate_basis | IFC2466: 30,000 measurements/s per synchronous channel |
| source_sampling_rate_basis | IFC2412: 8,000 measurements/s per synchronous channel |
| source_sampling_rate_basis | IFC2465MP: 30,000 measurements/s |
| source_sampling_rate_basis | IFC2417: 25,000 measurements/s per synchronous channel |
| source_sampling_rate_basis | IFC2421: 10,000 measurements/s |
| source_sampling_rate_basis | IFC2411: 8,000 measurements/s |
| source_sampling_rate_basis | IFC2422: 10,000 measurements/s per synchronous channel |
| Contact | Non-contact |
Compatible system components
Controllers
- IFC2411 eli-m-24d24e924a8f42498f789e30 Required
- IFC2411/IE eli-m-5e1a9225b79cebe29f0132ad Required
- IFC2412 eli-m-a2d93e4ed3b681b7072689b4 Required
- IFC2412/IE eli-m-2b7501a556a9a23e52fc1758 Required
- IFC2416 eli-m-5c10b181f32dfb45d718a28c Required
- IFC2417 eli-m-a88f7ea6e5c8ba2174ecf408 Required
- IFC2417/IE eli-m-50319450e04233db337b5b52 Required
- IFC2421 eli-m-f76a6a0229b8b6bd41dac079 Required
- IFC2421MP eli-m-4266a67a9b14a674f5c77eeb Required
- IFC2422 eli-m-c6724ef06ab99cb6fcc94388 Required
- IFC2422MP eli-m-a11685ea44038c8fbffce242 Required
- IFC2465 eli-m-8716228ed6b378d96c9cc627 Required
- IFC2465MP eli-m-207d97733d9213516dd2ed31 Required
- IFC2466 eli-m-6197d1146a29aa102c43b4b9 Required
- IFC2466MP eli-m-b7b5ca838bb81aed499ed5fa Required
Compatible accessories
Cables
- SC2415-x/IF2008 eli-m-2ea7272231e82d32687a4ed0
- SC2415-x/IF2008ETH eli-m-002470dbffbbf5d44cc973ba
- SC2415-x/OE eli-m-70d9bc3cd4204442ff14733c
- SC2471-x/IF2008 eli-m-d91a1851976e773369883180
- SC2471-3/IF2008ETH eli-m-a64775a9b0e82cc5d36d3e36
- SC2471-x/RS422/OE eli-m-968a10e24c5c3452f2e7c8da
Power supplies
- PS2020 (2420062) eli-m-75d559684cc51453ffe276de
Optical fibres
- C2404-x eli-m-e189988218c2c36720825e1d Optional
- C2404/PT3-x/UHV eli-m-73d0eafa5f8d421a91b41e0c Optional
Mounting
- MA2404-12 eli-m-446b7bf003d9a57d93eda283 Optional
Accessories
- C2402/Vac/KF16 eli-m-9f88de3b684ca96a1ae4b051 Optional
- C2405/Vac/1/KF16 eli-m-9fcb72db1165bd5b602b5ae4 Optional
- C2405/Vac/1/CF16 eli-m-37a5ee42eb81928449f6b7a7 Optional
- C2405/Vac/6/CF63 eli-m-4e11229dedf3fd36f16d608a Optional
Complementary products
- IF1032/ETH eli-m-9f23885a1bd1bd049fa826c5 Optional
- IF2001/USB eli-m-35721df1c25134aa74715544 Optional
- IF2004/USB eli-m-4f8d6810bc5247a038ab8f8e Optional
- IF2008/PCIE eli-m-ba473dc320aec09f27b9b795 Optional
- IF2008/ETH eli-m-b1ae07a985efec8c0d992a17 Optional
- IFL2422/LED eli-m-22307d54e76fd69d12ea5d08 Optional
- IFL24x1/LED configurable component family eli-s-f80ccf637f89d4ec11045f06 Optional Only for source configuration configuration-500a13c44ea8f942f4e3b785: IFS2404/90-2; selected configuration must be matched before display.
