MDS-40-D18-SA
From the mainSENSOR series
mainSENSOR: sensors and measurement devices by Micro-Epsilon for magnetic.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 30 mm |
|---|---|
| Start of measuring range | 1.5 mm |
| Linearity (% FSO) | 5 % |
| Repeatability (% FSO) | 0.05 % |
| source_delivered_magnet_code | RL21 |
| Interfaces | ethernet |

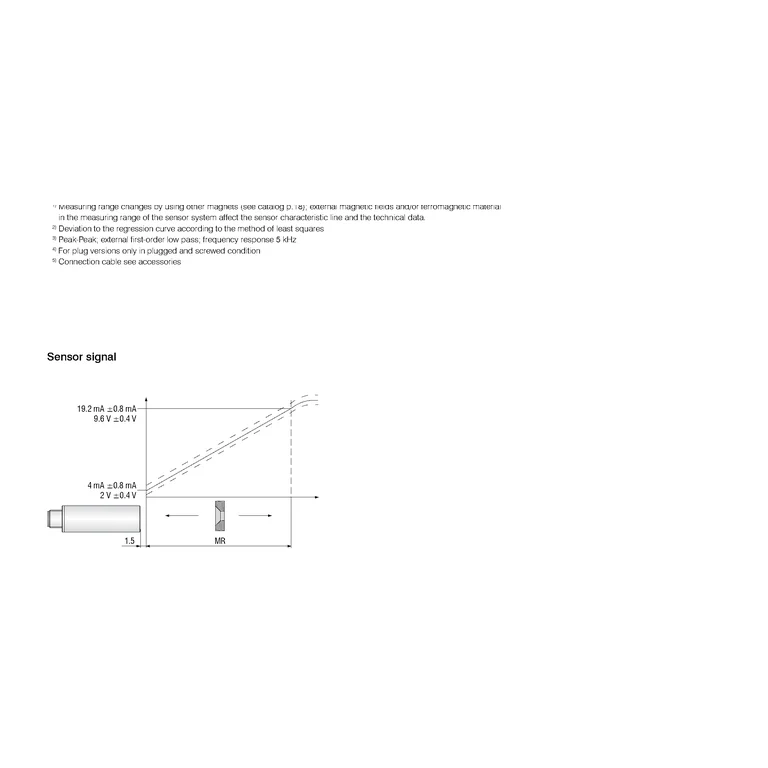

| interface_specification | Voltage 2 ±0.4 ... 9.6 ±0.4 V; current 4 ±0.8 ... 19.2 ±0.8 mA |
| Operating temperature | -20–80 °C |
| Protection class (DIN EN 60529) | ip67 |
| Upper cutoff frequency | 1000 Hz |
| quantity_specification | 0-40 mm model-level measuring interval |
| Accuracy (% FSO) | 5 % |
| Interfaces | ethercat |
| source_sampling_rate_basis | Integrated electronics controller |
| interface_specification | 4-20mA |
| interface_specification | RS422 / RS485 |
| interface_specification | Analog 0-10V |
| interface_specification | Digital I/O |
| Repeatability (% FSO) | 0.2 % |
| Contact | Non-contact |
