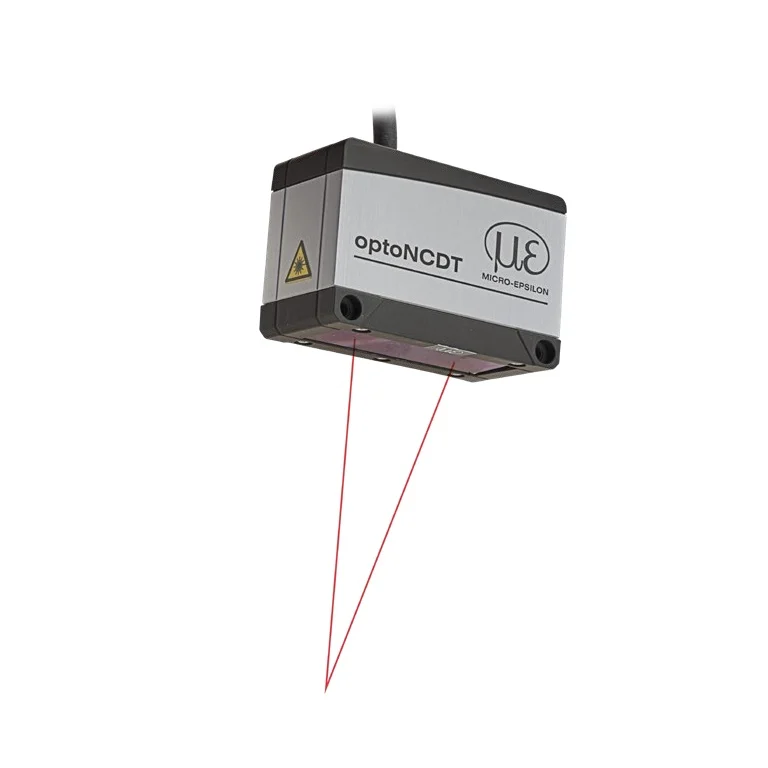

optoNCDT 1900 Laser triangulation
optoNCDT 1900: sensors and measurement devices by Micro-Epsilon for laser triangulation.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Working distance | 15–600 mm |
|---|---|
| distance_net_span | 2–500 mm |
| distance_start | 15–100 mm |
| distance_end | 17–600 mm |
| linearity_length | 1–400 µm |
| repeatability_length | 0.1–40 µm |
| Light spot width X | 0.055–0.95 mm |
| Light spot width Y | 0.06–1.2 mm |
| Accuracy | 1–400 µm |

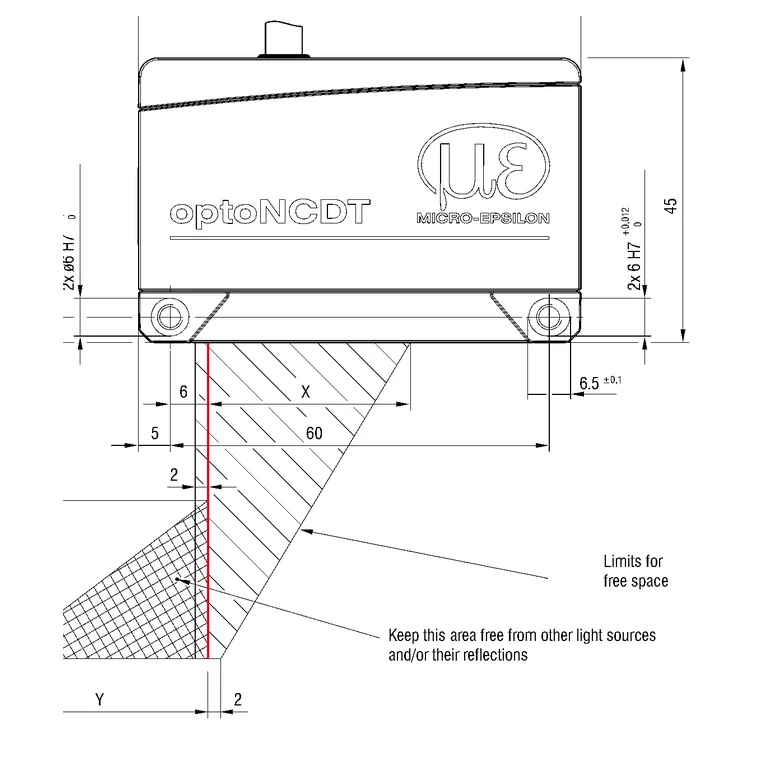

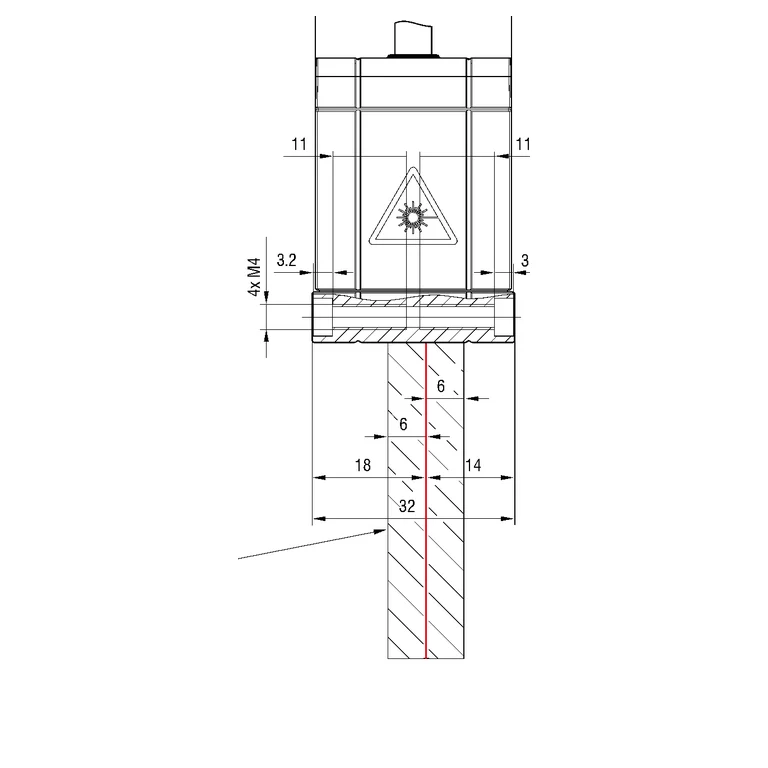

Models in the series
One column per model: what differs between the models of the series.
| Parameter | ILD1900-10 eli-m-e1400d708429f1cc763223d7 | ILD1900-10 — Integrated cable 3 m, open ends eli-m-d2cbf79e910a4ca21f0c8757 | ILD1900-10 — Pigtail 0.3 m, M12 17-pin eli-m-714337ae9ae1478dd81b4edc | ILD1900-100 eli-m-9794ecf1e2d4aee5a9058870 | ILD1900-100 — Integrated cable 3 m, open ends eli-m-a88fd0c6cbf6d0110498bb1f | ILD1900-100 — Pigtail 0.3 m, M12 17-pin eli-m-e6e8a6e8e3d90ef202ddee53 | ILD1900-2 eli-m-f928c6c2bc1918f8589140d3 | ILD1900-2 — Integrated cable 3 m, open ends eli-m-6be1c5d7fdda856b63e6b18f | ILD1900-2 — Pigtail 0.3 m, M12 17-pin eli-m-29713cec12c98ca6ea43e683 | ILD1900-200 eli-m-a2348289585562ba30680730 | ILD1900-200 — Integrated cable 3 m, open ends eli-m-10b9ad0a462a187f9f5f1e62 | ILD1900-200 — Pigtail 0.3 m, M12 17-pin eli-m-56045ed94edcb12508b9f237 | ILD1900-25 eli-m-9229fbd356d77465143fc35c | ILD1900-25 — Integrated cable 3 m, open ends eli-m-19cdcc1056ebc57f09b53df0 | ILD1900-25 — Pigtail 0.3 m, M12 17-pin eli-m-ce1774cda3cc86d342c3a4ef | ILD1900-50 eli-m-cc120f43ee956d7745085078 | ILD1900-50 — Integrated cable 3 m, open ends eli-m-4c4667e58fe3b09ff487ab7e | ILD1900-50 — Pigtail 0.3 m, M12 17-pin eli-m-f7a1b513e200302760604f32 | ILD1900-500 eli-m-412ef754c793f3a3bf9e92c0 | ILD1900-500 — Integrated cable 3 m, open ends eli-m-9fd37c8f9c12003ae7e86eae | ILD1900-500 — Pigtail 0.3 m, M12 17-pin eli-m-925c1d44161346c30ce31ce8 | ILD1900-6 eli-m-572ebf7fd1b5a7b98b258ed5 | ILD1900-6 — Integrated cable 3 m, open ends eli-m-3eb230a2f013705d1f899c64 | ILD1900-6 — Pigtail 0.3 m, M12 17-pin eli-m-7b1ee70587c550a6ed478aaf |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working distance | 20–30 mm | Not specified | Not specified | 50–150 mm | Not specified | Not specified | 15–17 mm | Not specified | Not specified | 60–260 mm | Not specified | Not specified | 25–50 mm | Not specified | Not specified | 40–90 mm | Not specified | Not specified | 100–600 mm | Not specified | Not specified | 17–23 mm | Not specified | Not specified |
| interface_specification | Analog 0-10V | Not specified | Not specified | Digital I/O | Not specified | Not specified | Digital I/O | Not specified | Not specified | Digital I/O | Not specified | Not specified | Digital I/O | Not specified | Not specified | Digital I/O | Not specified | Not specified | Digital I/O | Not specified | Not specified | RS422 / RS485 | Not specified | Not specified |
| quantity_specification | 10 mm net measuring range; 20-30 mm sensor-to-target working window. | Not specified | Not specified | Not specified | Not specified | Not specified | 2 mm net measuring range; 15-17 mm sensor-to-target working window. | Not specified | Not specified | Not specified | Not specified | Not specified | 25 mm net measuring range; 25-50 mm sensor-to-target working window. | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | 6 mm net measuring range; 17-23 mm sensor-to-target working window. | Not specified | Not specified |
| distance_net_span | 10 mm | 10 mm | 10 mm | 100 mm | 100 mm | 100 mm | 2 mm | 2 mm | 2 mm | 200 mm | 200 mm | 200 mm | 25 mm | 25 mm | 25 mm | 50 mm | 50 mm | 50 mm | 500 mm | 500 mm | 500 mm | 6 mm | 6 mm | 6 mm |
| distance_start | 20 mm | 20 mm | 20 mm | 50 mm | 50 mm | 50 mm | 15 mm | 15 mm | 15 mm | 60 mm | 60 mm | 60 mm | 25 mm | 25 mm | 25 mm | 40 mm | 40 mm | 40 mm | 100 mm | 100 mm | 100 mm | 17 mm | 17 mm | 17 mm |
| distance_end | 30 mm | 30 mm | 30 mm | 150 mm | 150 mm | 150 mm | 17 mm | 17 mm | 17 mm | 260 mm | 260 mm | 260 mm | 50 mm | 50 mm | 50 mm | 90 mm | 90 mm | 90 mm | 600 mm | 600 mm | 600 mm | 23 mm | 23 mm | 23 mm |
| linearity_length | 2 µm | 2 µm | 2 µm | 30 µm | 30 µm | 30 µm | 1 µm | 1 µm | 1 µm | 100 µm | 100 µm | 100 µm | 5 µm | 5 µm | 5 µm | 10 µm | 10 µm | 10 µm | 400 µm | 400 µm | 400 µm | 1.8 µm | 1.8 µm | 1.8 µm |
| repeatability_length | 0.4 µm | 0.4 µm | 0.4 µm | 4 µm | 4 µm | 4 µm | 0.1 µm | 0.1 µm | 0.1 µm | 8 µm | 8 µm | 8 µm | 0.8 µm | 0.8 µm | 0.8 µm | 1.6 µm | 1.6 µm | 1.6 µm | Not specified | < 20…40 µm | < 20…40 µm | 0.25 µm | 0.25 µm | 0.25 µm |
| Light spot width X | 0.115 mm | Not specified | Not specified | 0.38 mm | Not specified | Not specified | 0.055 mm | Not specified | Not specified | 0.9500000000000001 mm | Not specified | Not specified | 0.07000000000000001 mm | Not specified | Not specified | 0.095 mm | Not specified | Not specified | 0.9500000000000001 mm | Not specified | Not specified | 0.057 mm | Not specified | Not specified |
| Light spot width Y | 0.065 mm | Not specified | Not specified | 0.46 mm | Not specified | Not specified | 0.075 mm | Not specified | Not specified | 1.2 mm | Not specified | Not specified | 0.26 mm | Not specified | Not specified | 0.3 mm | Not specified | Not specified | 1.2 mm | Not specified | Not specified | 0.06 mm | Not specified | Not specified |
| native_interfaces | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 | ethernet | rs422 | rs422 |
| Operating temperature | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified | 0–50 °C | Not specified | Not specified |
| Protection class (DIN EN 60529) | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified | ip67 | Not specified | Not specified |
| contact_type | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact | Non-contact | non-contact | non-contact |
| Accuracy | 2 µm | Not specified | Not specified | 30 µm | Not specified | Not specified | 1 µm | Not specified | Not specified | 100 µm | Not specified | Not specified | 5 µm | Not specified | Not specified | 10 µm | Not specified | Not specified | 400 µm | Not specified | Not specified | 1.8 µm | Not specified | Not specified |
| ADC sampling rate | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified | 10000 samples/s | Not specified | Not specified |
| measurement_rate | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz | Not specified | 10000 Hz | 10000 Hz |
| Light spot size on target at mid measuring range | Not specified | 60 × 65 µm (MMR) | 60 × 65 µm (MMR) | Not specified | 140 × 170 µm (MMR) | 140 × 170 µm (MMR) | Not specified | 55 × 65 µm (MMR) | 55 × 65 µm (MMR) | Not specified | 950 × 1200 µm (MMR) | 950 × 1200 µm (MMR) | Not specified | 70 × 75 µm (MMR) | 70 × 75 µm (MMR) | Not specified | 95 × 110 µm (MMR) | 95 × 110 µm (MMR) | Not specified | 950 × 1200 µm (MMR) | 950 × 1200 µm (MMR) | Not specified | 57 × 60 µm (MMR) | 57 × 60 µm (MMR) |
| Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — ILD1900-10 (opens in a new tab) | PDF — ILD1900-10 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-10 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-100 (opens in a new tab) | PDF — ILD1900-100 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-100 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-2 (opens in a new tab) | PDF — ILD1900-2 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-2 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-200 (opens in a new tab) | PDF — ILD1900-200 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-200 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-25 (opens in a new tab) | PDF — ILD1900-25 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-25 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-50 (opens in a new tab) | PDF — ILD1900-50 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-50 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-500 (opens in a new tab) | PDF — ILD1900-500 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-500 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) | PDF — ILD1900-6 (opens in a new tab) | PDF — ILD1900-6 — Integrated cable 3 m, open ends (opens in a new tab) | PDF — ILD1900-6 — Pigtail 0.3 m, M12 17-pin (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
No. The manual distinguishes the 10 kHz maximum from the 4 kHz factory setting. Select the operating rate for the surface and application.
A lower rate permits a longer exposure. The manufacturer recommends considering it for dark or shiny targets to improve the measurement result.
No. Integrated Industrial Ethernet versions coexist with variants needing an adapter. Select the exact model code and required EtherCAT, PROFINET or EtherNet/IP protocol.
No. It varies by model; the relevant table specifies typical values at 4 kHz and median 9. Preserve those test conditions.
The catalogue describes a 3 m open-ended integral cable or 0.3 m pigtail with a 17-pin M12 connector. Match extension cable and drawing to the configuration.
