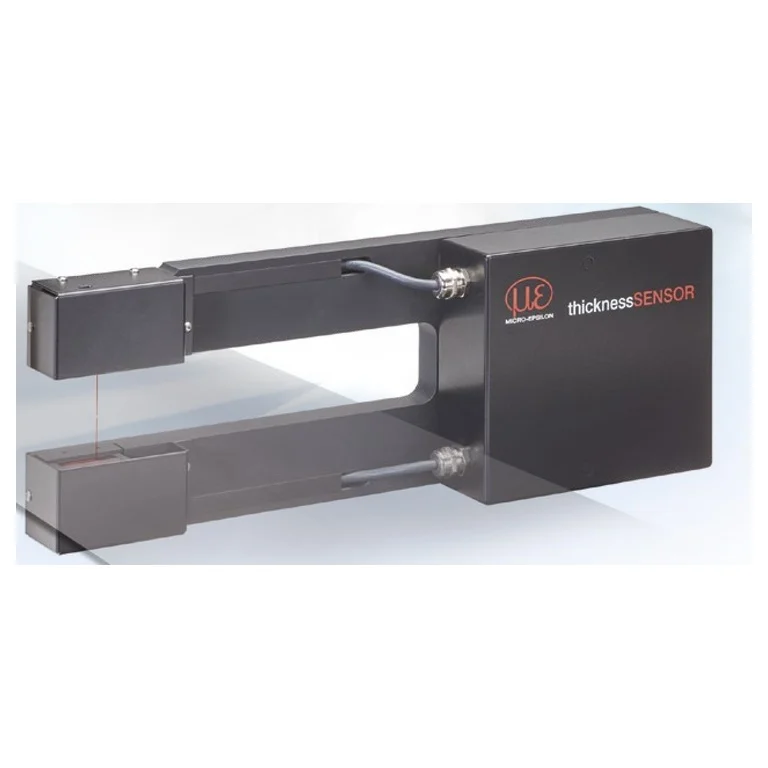

thicknessSENSOR 10/400
From the thicknessSENSOR series
thicknessSENSOR: sensors and measurement devices by Micro-Epsilon for laser triangulation.
- System accuracy
- 10 µm
Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 10 mm |
|---|---|
| Working distance | 0–46 mm |
| Linearity | 10 µm |
| Resolution | 0.1 µm |
| Interfaces | ethercat |
| interface_specification | Analog 0-10V |
| Operating temperature | 0–50 °C |
| Protection class (DIN EN 60529) | ip65 |
| Maximum material width | 400 mm |
| quantity_specification | 10 mm thickness measuring range; 400 mm named measuring width. |
| System accuracy | 10 µm |
| source_sampling_rate_basis | Official maximum measurement or output rate: 4,000 Hz. |
| Light spot width X | 0.065 mm |
| Interfaces | ethernet |
| source_repeatability_basis | Repeatability not stated in the reviewed official source. |
| Light spot width Y | 0.68 mm |
| interface_specification | Digital I/O |
| Interfaces | profinet |
| Contact | Non-contact |
