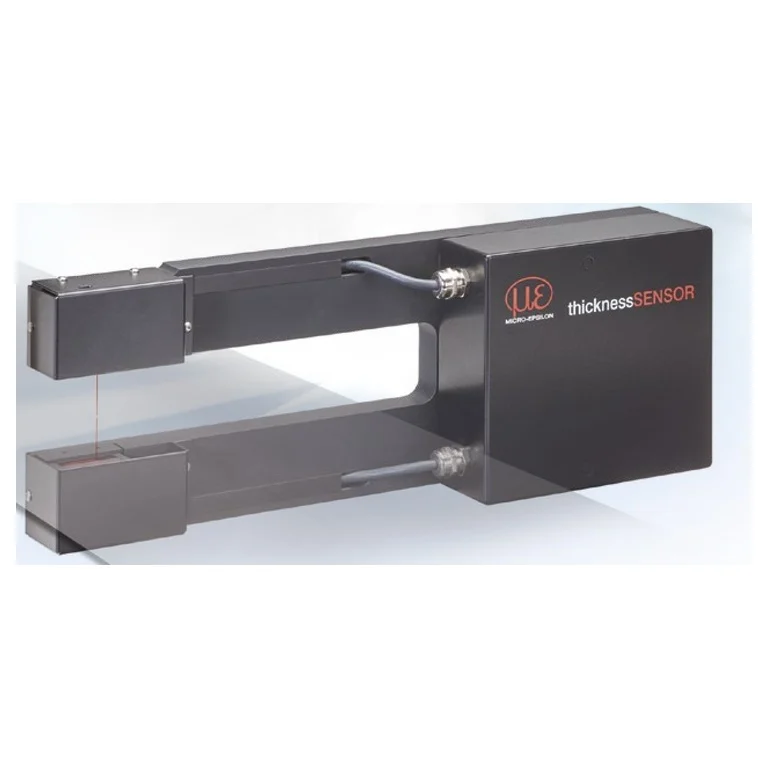

thicknessSENSOR 25/200
From the thicknessSENSOR series
thicknessSENSOR: sensors and measurement devices by Micro-Epsilon for laser triangulation.
- System accuracy
- 40 µm
Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 25 mm |
|---|---|
| Working distance | 0–71 mm |
| Linearity | 40 µm |
| Resolution | 1 µm |
| Interfaces | ethercat |
| interface_specification | Analog 0-10V |
| Operating temperature | 0–50 °C |
| Protection class (DIN EN 60529) | ip65 |
| Maximum material width | 200 mm |
| quantity_specification | 25 mm thickness measuring range; 200 mm named measuring width. |
| System accuracy | 40 µm |
| Light spot width Y | 0.97 mm |
| Interfaces | ethernet |
| Light spot width X | 0.08 mm |
| Interfaces | profinet |
| source_sampling_rate_basis | Official maximum measurement or output rate: 4,000 Hz. |
| interface_specification | Digital I/O |
| source_repeatability_basis | Repeatability not stated in the reviewed official source. |
| Contact | Non-contact |
