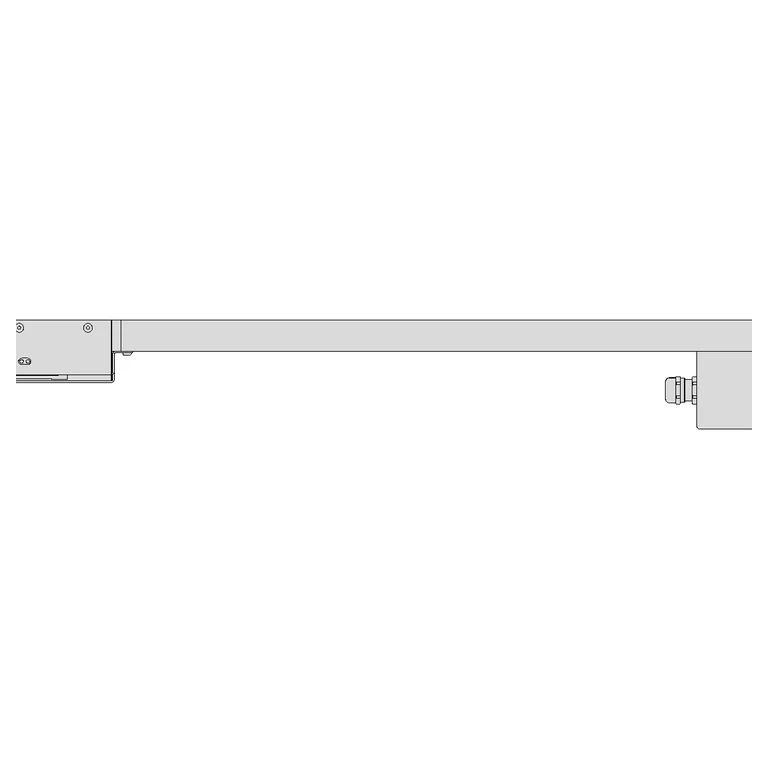

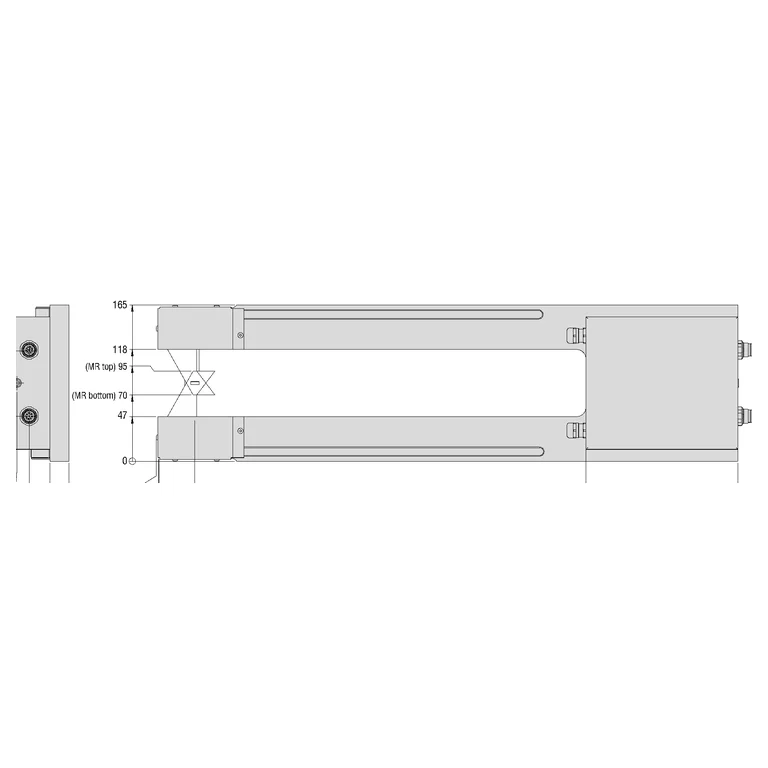

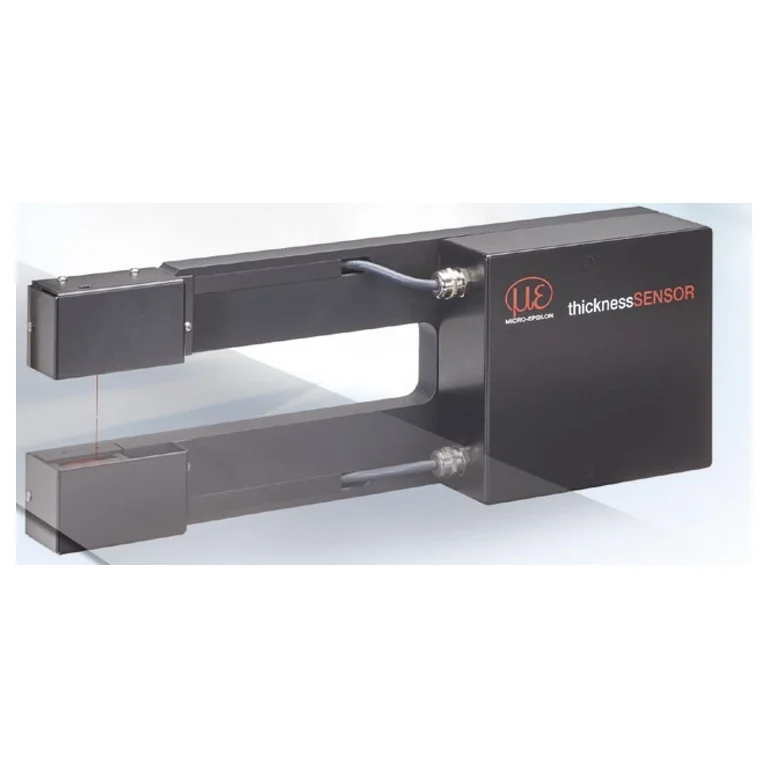

thicknessSENSOR 25/400
From the thicknessSENSOR series
thicknessSENSOR: sensors and measurement devices by Micro-Epsilon for laser triangulation.
- System accuracy
- 40 µm
Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 25 mm |
|---|---|
| Working distance | 0–71 mm |
| Linearity | 40 µm |
| Interfaces | ethernet |
| interface_specification | 4-20mA |
| Protection class (DIN EN 60529) | ip65 |
| Maximum material width | 400 mm |
| quantity_specification | 25 mm measuring range, 400 mm measuring width, compact fixed frame. |
| System accuracy | 40 µm |
| Light spot width Y | 0.97 mm |
| interface_specification | Digital I/O |
| interface_specification | Analog 0-10V |
| Light spot width X | 0.08 mm |
| Contact | Non-contact |
