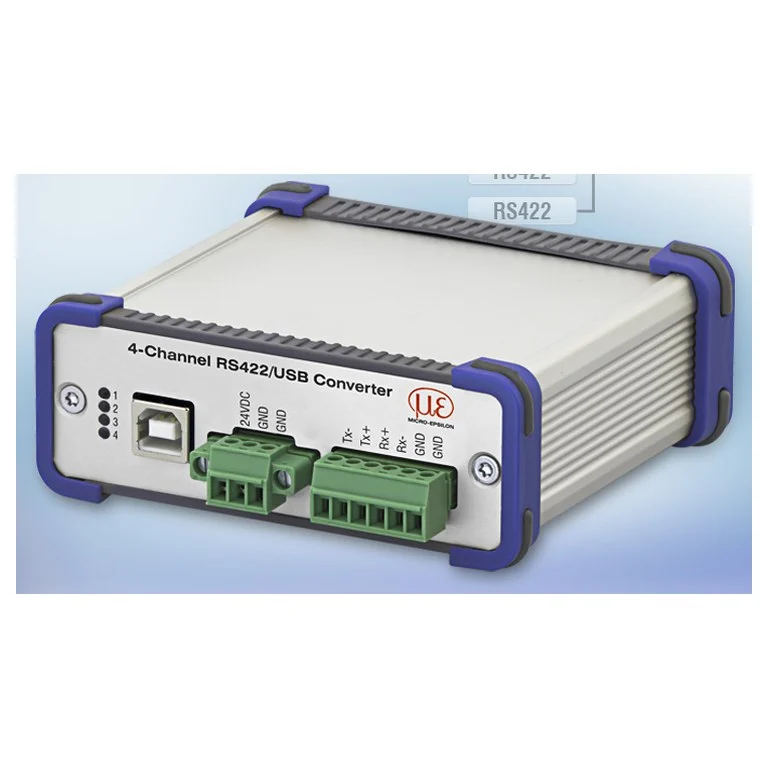

IF2004/USB
From the Micro-Epsilon interface and signal-processing accessories series
Micro-Epsilon interface and signal-processing accessories: accessories and system components by Micro-Epsilon for communication adapters.
- Number of measurement channels
- 4
Technical specification
Every engineering figure, laid out to scan quickly
| Sensor input interface | rs422 |
|---|---|
| Interfaces | usb |
| Number of measurement channels | 4 |
| Storage temperature | 5–50 °C |
| Operating temperature | 5–50 °C |
| Humidity | 5–95 %RH |
| Protection class (DIN EN 60529) | ip40 |
| source_fifo_volume_tuples | FIFO volume = 3072 tuples |
| source_trigger_outputs | 1 trigger output |
| source_data_output_interface | USB |
| source_trigger_inputs | 4 trigger inputs |
| source_reverse_polarity_protection | Yes |
| source_interface_module_configuration_notes | Up to four confocal controllers; COM interfaces individually usable and switchable; not listed compatible with IFD2410/IFD2415. |
| source_host_side_data_interface | USB-Interface 2.0 |
| source_galvanic_isolation | No; all GND signals are connected internally and with the housing |
| source_synchronous_acquisition | Synchronous data acquisition |
| source_rs422_input_output_frequency_limit_hz | input/output frequency max. 8 MHz |
| source_digital_channels | 4 × digital signals via RS422 |
| source_rs422_synchronization_output_frequency_limit_hz | 2 x RS422 drivers per connector for sensor synchronization, output frequency max. 8 MHz |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
It accepts up to four digital RS422 signals and outputs USB data. Sensor-model and protocol compatibility must still be matched.
It provides four trigger inputs and one trigger output for additional converters, with synchronous acquisition specified by the manufacturer.
No. They accept digital signals through RS422. A sensor providing only voltage or current requires a different acquisition path.
The converter and compatible connected sensor can be parameterized in software. Use the software and driver intended for the module.
It outputs data to a PC through USB. Trigger inputs and the trigger output provide synchronization; they are not additional sensor channels.
