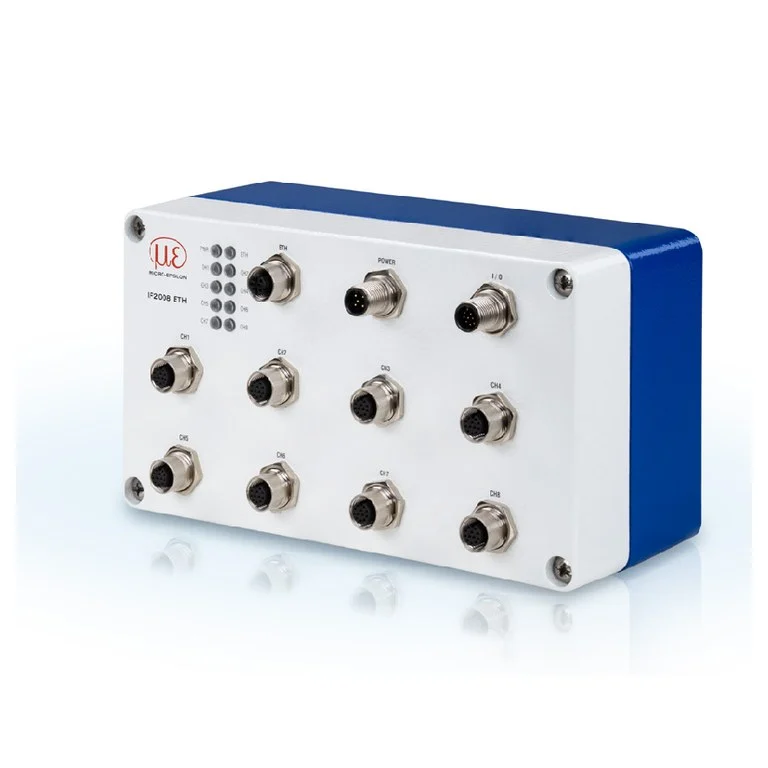

IF2008/ETH
From the Micro-Epsilon interface and signal-processing accessories series
Micro-Epsilon interface and signal-processing accessories: accessories and system components by Micro-Epsilon for communication adapters.
Visit the Micro-Epsilon site (opens in a new tab)
Technical specification
Every engineering figure, laid out to scan quickly
| Sensor input interface | rs422 |
|---|---|
| Interfaces | ethernet |
| Network link rate | 100 Mbit/s |
| Supply voltage | 11–30 V |
| Output update rate | 200000 Hz |
| Digital inputs | 4 |
| Digital outputs | 4 |
| Storage temperature | 0–80 °C |
| Operating temperature | 0–50 °C |
| Humidity | 5–95 %RH |
| Protection class (DIN EN 60529) | ip65 |
| Weight | 1.7 kg |
| source_channel_measured_value_transport_protocol | Measured value output currently only on TCP server |
| source_material | Die-cast aluminum |
| source_interface_module_configuration_notes | Module Ethernet data rate is not a guarantee of achieved sensor/controller system rate. |
| source_host_side_data_interface | Ethernet |
| source_internal_timer_count | Timers 1 to 3 |
| source_sensor_encoder_connection_count | 8 x 12-pin sensor/encoder sockets; channels 1-8 |
| source_status_indicators | Ten indicator LEDs |
| source_galvanic_isolation | no; all GND signals are connected internally and with the housing |
| Storage temperature | 5–50 °C |
| source_maximum_sensor_or_encoder_channels | Up to eight sensors and/or encoders with RS422 |
| source_reverse_polarity_protection | yes |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
It integrates up to eight compatible Micro-Epsilon sensors or encoders with RS422 into an Ethernet network.
Module parameters can be set through its web interface. It also provides four programmable switching I/O and LEDs for device and channel status.
No. The manufacturer lists specific Micro-Epsilon families and models. Check model and protocol compatibility as well as interface type.
No. Its four programmable TTL/HTL switching inputs/outputs are separate from the up to eight sensor or encoder channels.
Ten indicator LEDs show device and channel status. Module parameters are configured through its web interface.
