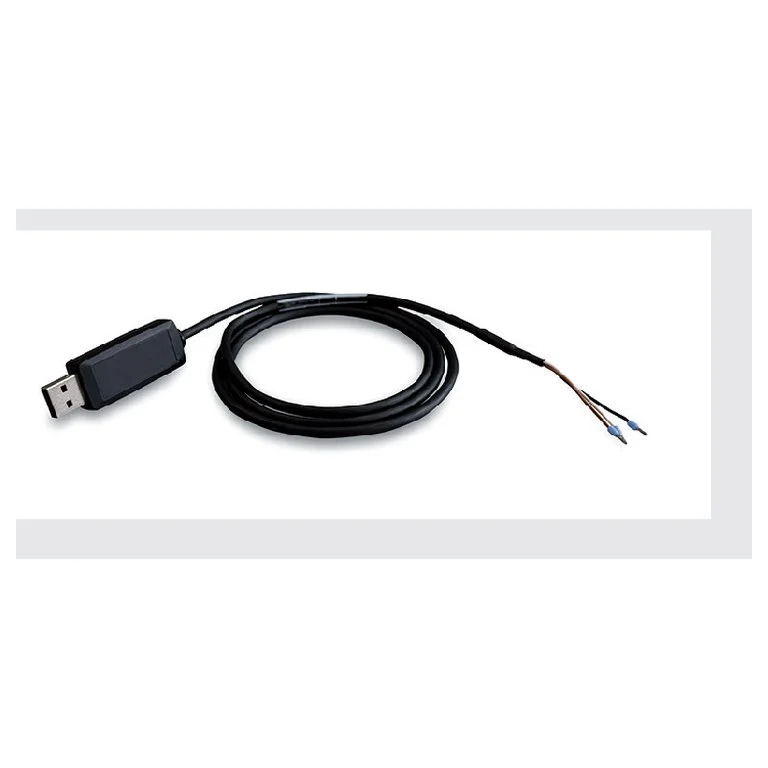

IF7001
From the Micro-Epsilon interface and signal-processing accessories series
Micro-Epsilon interface and signal-processing accessories: accessories and system components by Micro-Epsilon for communication adapters.
- Number of measurement channels
- 1
Technical specification
Every engineering figure, laid out to scan quickly
| Interfaces | usb |
|---|---|
| Number of measurement channels | 1 |
| interface_specification | RS485 2-wire half-duplex |
| Operating temperature | 0–70 °C |
| Humidity | 5–95 %RH |
| Protection class (DIN EN 60529) | ip20 |
| source_baud_rate_matching_requirement | The sensor electronics and the adapter must be set to the same baud rate |
| source_host_side_data_interface | conversion from the RS485 interface to the USB interface |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
Yes. The official interface-module table lists IF7001 for data display and access to parameterization or a web interface, as applicable to the product.
Install the IF7001 driver, connect the converter to USB and sensor electronics, and use compatible software. Power the sensor electronics according to its specification.
It is a single-channel RS485-to-USB converter. Its RS485 side uses two-wire half-duplex operation, which differs from RS422.
Sensor electronics and adapter must use the same baud rate. Also check protocol and the connected controller’s wiring instructions.
It specifies IP20, 0–70°C operation and 5–95% non-condensing humidity. These are adapter conditions, not the connected sensor rating.
