thicknessCONTROL STG 8101 System
thicknessCONTROL STG 8101: system by Micro-Epsilon.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)

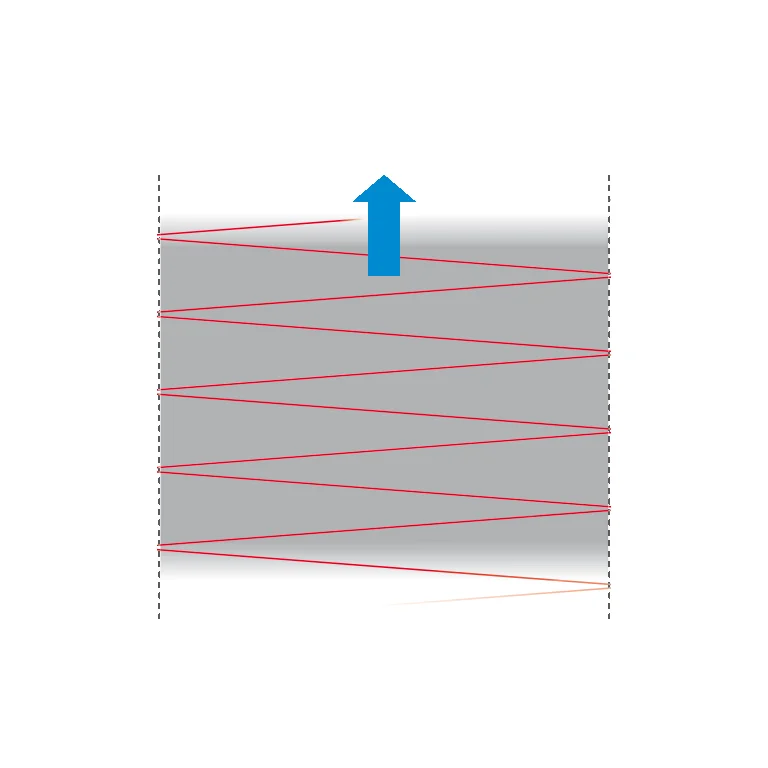

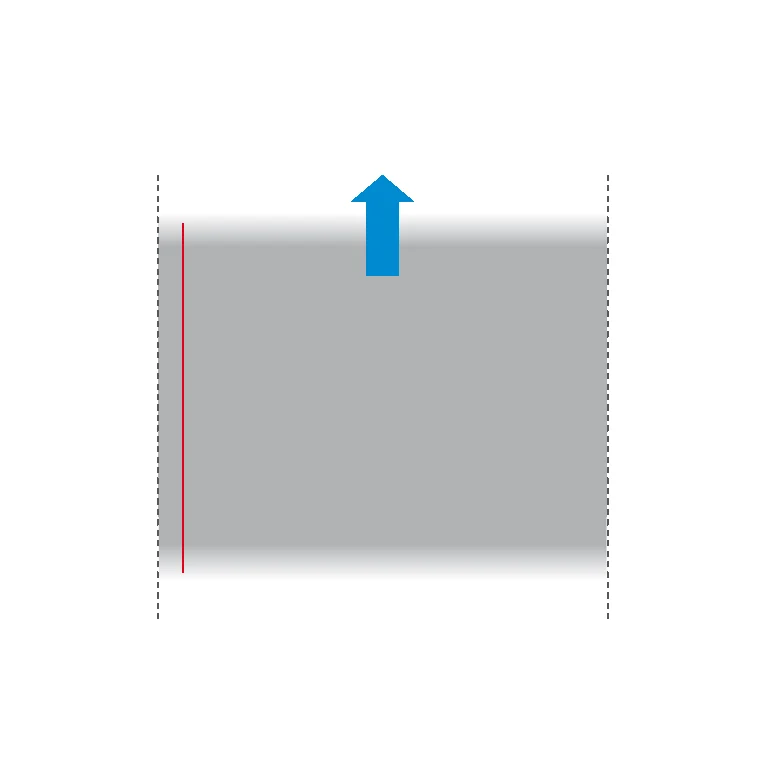

Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| System accuracy | 3–5 µm |
|---|
Models in the series
One column per model: what differs between the models of the series.
| Parameter | thicknessCONTROL STG 8101-CLLT-75/1200 eli-m-433627b49f21108302d4fd3c | thicknessCONTROL STG 8101-CLLT-75/1700 eli-m-84a4974b0c612eff20d0cdd6 | thicknessCONTROL STG 8101-CLLT-75/2200 eli-m-1807e4ddcbb55bf58ee3c68e | thicknessCONTROL STG 8101-CLLT-75/700 eli-m-a73be681f12b48e1694fd93c | thicknessCONTROL STG 8101-CT-50/1200 eli-m-3efcdcd7dca9371977351a33 | thicknessCONTROL STG 8101-CT-50/1700 eli-m-82fface245b7066408ab1990 | thicknessCONTROL STG 8101-CT-50/2200 eli-m-5d837590f084a0c6ea52f9fb | thicknessCONTROL STG 8101-CT-50/700 eli-m-46f674b0010267e3d30274a6 |
|---|---|---|---|---|---|---|---|---|
| Maximum material width | 1200 mm | 1700 mm | 2200 mm | 700 mm | 1200 mm | 1700 mm | 2200 mm | 700 mm |
| Operating temperature | 5–60 °C | 5–60 °C | 5–60 °C | 5–60 °C | 5–60 °C | 5–60 °C | 5–60 °C | 5–60 °C |
| Repeatability | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm | 0.5 µm |
| quantity_specification | 75 mm thickness measuring range; 1200 mm named measuring width; article 4350006.520. | 75 mm thickness measuring range; 1700 mm named measuring width; article 4350006.520. | 75 mm thickness measuring range; 2200 mm named measuring width; article 4350006.520. | 75 mm thickness measuring range; 700 mm named measuring width; article 4350006.520. | 50 mm thickness measuring range; 1200 mm named measuring width; article 4350133.101. | 50 mm thickness measuring range; 1700 mm named measuring width; article 4350133.102. | 50 mm thickness measuring range; 2200 mm named measuring width; article 4350133.103. | 50 mm thickness measuring range; 700 mm named measuring width; article 4350133.100. |
| Interfaces | ethercat | profinet | profinet | ethernet | ethernet | profinet | ethercat | profinet |
| interface_specification | Digital I/O | Analog 0-10V | Analog 0-10V | Analog 0-10V | Digital I/O | Analog 0-10V | Digital I/O | Analog 0-10V |
| Resolution | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm | 1 µm |
| System accuracy | 3 µm | 3 µm | 3 µm | 3 µm | 5 µm | 5 µm | 5 µm | 5 µm |
| Repeatability | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified |
| Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — thicknessCONTROL STG 8101-CLLT-75/1200 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CLLT-75/1700 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CLLT-75/2200 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CLLT-75/700 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CT-50/1200 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CT-50/1700 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CT-50/2200 (opens in a new tab) | PDF — thicknessCONTROL STG 8101-CT-50/700 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
No. The catalogue separates EO, CT and CLLT with different mechanics/sensing principles. Preserve the configuration suffix.
It supports traversal across wide material and geometric stability. Frame/axes are part of system performance, not merely mounting accessories.
No. Use the corresponding system-accuracy table. A sensor value in a technology summary is not the assembled machine’s specification.
Do not assume so. The tabulated CLLT version includes a minimum material-thickness footnote. Preserve exact branch conditions.
Width, thickness span, pass geometry, temperature, traversal and control interface. Select a documented combination rather than combining maxima from different branches.
