thicknessCONTROL STG 8102 System
thicknessCONTROL STG 8102: system by Micro-Epsilon.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| System accuracy | 3–10 µm |
|---|---|
| Resolution | 0.45–2 µm |
Models in the series
One column per model: what differs between the models of the series.
| Parameter | thicknessCONTROL STG 8102-LLT-100/1000 eli-m-a7d2fa4aaf08ef9cda1a5275 | thicknessCONTROL STG 8102-LLT-100/500 eli-m-cdab32792c0efb923da7b808 | thicknessCONTROL STG 8102-LLT-50/1000 eli-m-3bc988d209d8f01ab6ec5214 | thicknessCONTROL STG 8102-LLT-50/500 eli-m-d4d5c2b0adb7c690e7db3976 | thicknessCONTROL STG 8102-T-20/1000 eli-m-d2122010b935e408a45a5bd2 | thicknessCONTROL STG 8102-T-20/500 eli-m-f691ec147c85153fc7fb1b35 | thicknessCONTROL STG 8102-T-50/1000 eli-m-0e9522f2a4dc5990bb407f26 | thicknessCONTROL STG 8102-T-50/500 eli-m-0add1638b086e0903c4e4b69 |
|---|---|---|---|---|---|---|---|---|
| interface_specification | Digital I/O | Analog 0-10V | Analog 0-10V | Digital I/O | Digital I/O | Digital I/O | Analog 0-10V | Digital I/O |
| System accuracy | 7.5 µm | 7.5 µm | 3 µm | 3 µm | 4 µm | 4 µm | 10 µm | 10 µm |
| Maximum material width | 1000 mm | 500 mm | 1000 mm | 500 mm | 1000 mm | 500 mm | 1000 mm | 500 mm |
| ADC sampling rate | 70000 samples/s | 70000 samples/s | 70000 samples/s | 70000 samples/s | 70000 samples/s | 70000 samples/s | 70000 samples/s | 70000 samples/s |
| Operating temperature | 5–45 °C | 5–45 °C | 5–45 °C | 5–45 °C | 5–45 °C | 5–45 °C | 5–45 °C | 5–45 °C |
| quantity_specification | 100 mm thickness measuring range; 1000 mm named measuring width; article 4350127.237. | 100 mm thickness measuring range; 500 mm named measuring width; article 4350127.235. | 50 mm thickness measuring range; 1000 mm named measuring width; article 4350127.236. | 50 mm thickness measuring range; 500 mm named measuring width; article 4350127.234. | 20 mm thickness measuring range; 1000 mm named measuring width; article 4350127.232. | 20 mm thickness measuring range; 500 mm named measuring width; article 4350127.230. | 50 mm thickness measuring range; 1000 mm named measuring width; article 4350127.233. | 50 mm thickness measuring range; 500 mm named measuring width; article 4350127.231. |
| Interfaces | ethercat | ethernet | ethernet | ethernet | profinet | ethernet | profinet | ethercat |
| Resolution | 2 µm | 2 µm | 1 µm | 1 µm | 0.45 µm | 0.45 µm | 1.1 µm | 1.1 µm |
| Repeatability | 2 µm | 2 µm | 1 µm | 1 µm | 1.5 µm | 1.5 µm | 3.5 µm | 3.5 µm |
| Repeatability | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified | Not specified |
| Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Datasheet | PDF — thicknessCONTROL STG 8102-LLT-100/1000 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-LLT-100/500 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-LLT-50/1000 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-LLT-50/500 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-T-20/1000 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-T-20/500 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-T-50/1000 (opens in a new tab) | PDF — thicknessCONTROL STG 8102-T-50/500 (opens in a new tab) |
The industries we serve
-
-
Aerospace
- Aircraft door-lock position detection
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
-
Medical industry
-
Environment
-
Electric motor manufacturing
-
Food industry
-
Automotive industry
- Airlines & Aerospace Our balancing machines and moment weighing scales for aerospace drives ensure maximum precision, ease of use, and modular flexibility delivering reliability and performance without compromise contributing to your economic success.
- Automatic balancing machines Automatic balancing machines from Schenck are advanced solutions for precise balancing of rotating components in automated production processes. We offer systems and stations for balancing crankshafts, wheels and tires, turbochargers, electric armatures, drives, axle drive units, torque converters, drive shafts, disc-shaped rotors, as well as fans. Our systems increase productivity, ensure consistent quality, and are tailored to the needs of the automotive, energy, and industrial sectors.
- Axle Drives With our balancing machines for front and rear axle transmissions, the measured unbalance is corrected by drilling into the drive flanges of the transmissions (welding optional). We support you with our interdisciplinary expertise in the production of front and rear axle transmissions from the initial idea to the design stage through to series production.
-
Industrial automation
-
Plastics
-
Optics
-
3D printing
-
Battery manufacturing
Frequently asked questions
Answers to the most common questions about our products and services
Variants use triangulation, confocal or laser-profile sensors. Choose for material, surface, range and thickness requirement, without transferring one branch’s performance to all.
Thickness is the measurand, width defines strip access, and operating gap concerns frame geometry/material movement. They are separate specifications.

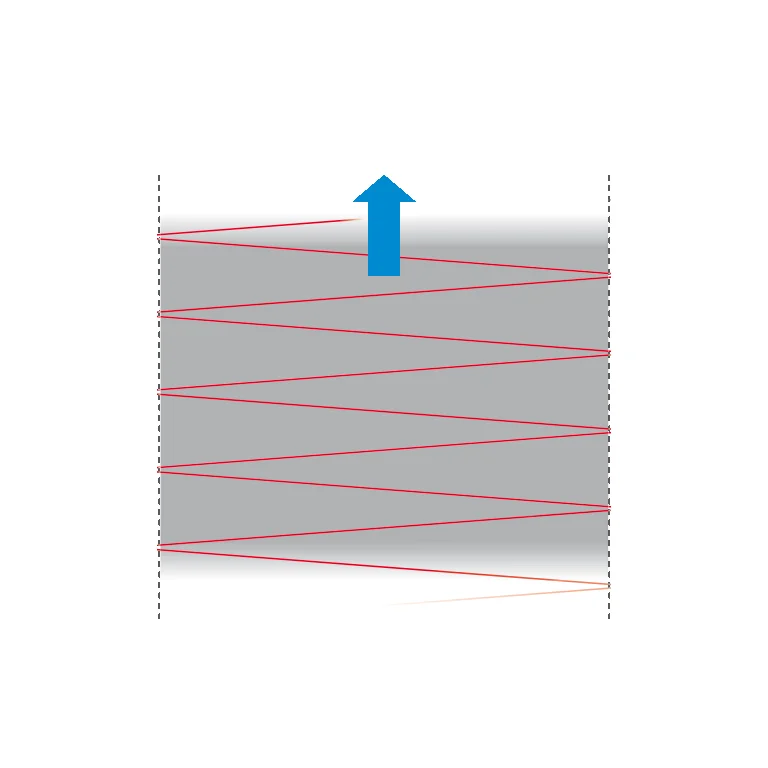

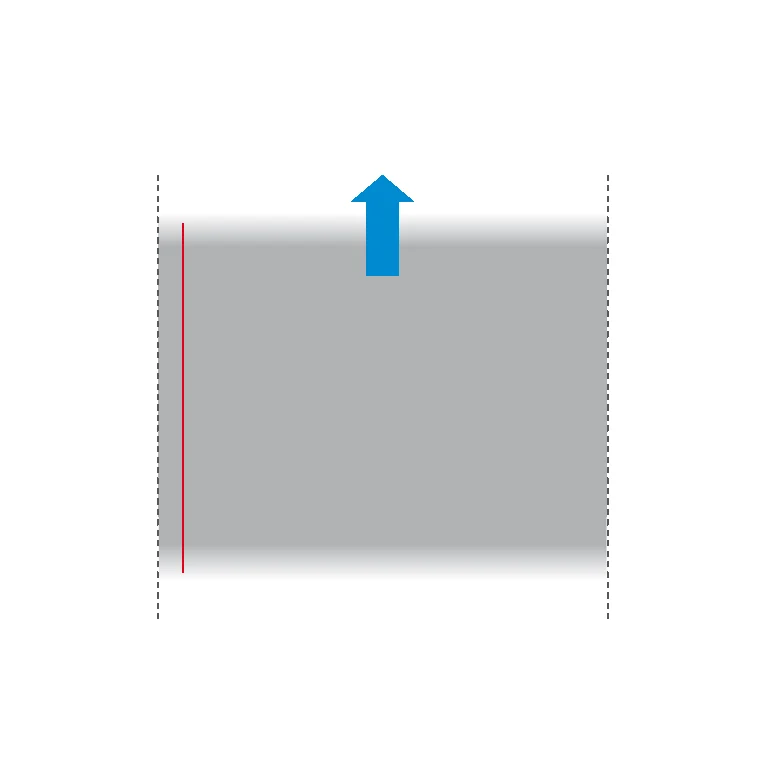

No. Edge, center, fixed-track or transverse-profile measurement can be selected. Required frame width depends on mode and mechanical access.
It re-establishes geometry against a reference and compensates thermal effects. Choose intervals for process and installation conditions.
No. It must match selected technology/configuration, evaluation and interface. A family headline maximum is not evidence for every system.
