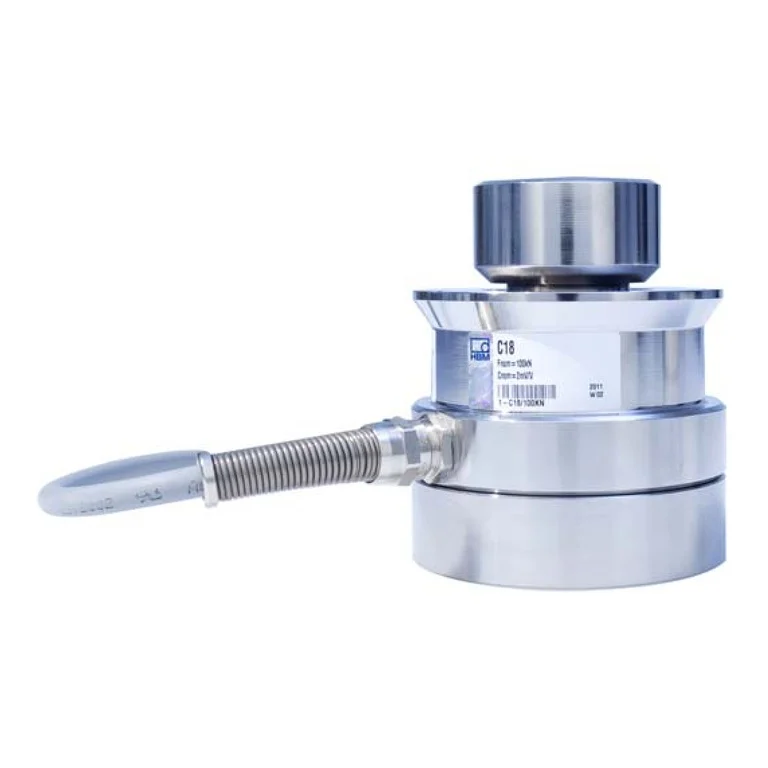

C18-5000kN
From the C18 series
C18: sensors and measurement devices by HBK for force.
- Force range
- 0–5000000 N
Technical specification
Every engineering figure, laid out to scan quickly
| Force range | 0–5000000 N |
|---|---|
| Accuracy (% FSO) | 0.02 % |
| Interfaces | ethernet |
| interface_specification | Analog 0-10V |
| quantity_specification | 5000 kN rated capacity = 5,000 kN (509.8581 t mass equivalent at standard gravity); compression |
| ADC sampling rate | 40000 samples/s |
| Interfaces | ethercat |
| Interfaces | profinet |
| source_sampling_rate_basis | ClipX fixed internal sampling rate; verify the configured filter and usable output bandwidth |
| ADC sampling rate | 19200 samples/s |
| interface_specification | RS422 / RS485 |
| source_sampling_rate_basis | DMP41 selectable result rate, intended for reference and calibration measurements |
| interface_specification | Digital I/O |
| ADC sampling rate | 450 samples/s |
| source_sampling_rate_basis | MX840B maximum per-channel sample rate; sensor mechanics and filter settings can reduce usable bandwidth |
