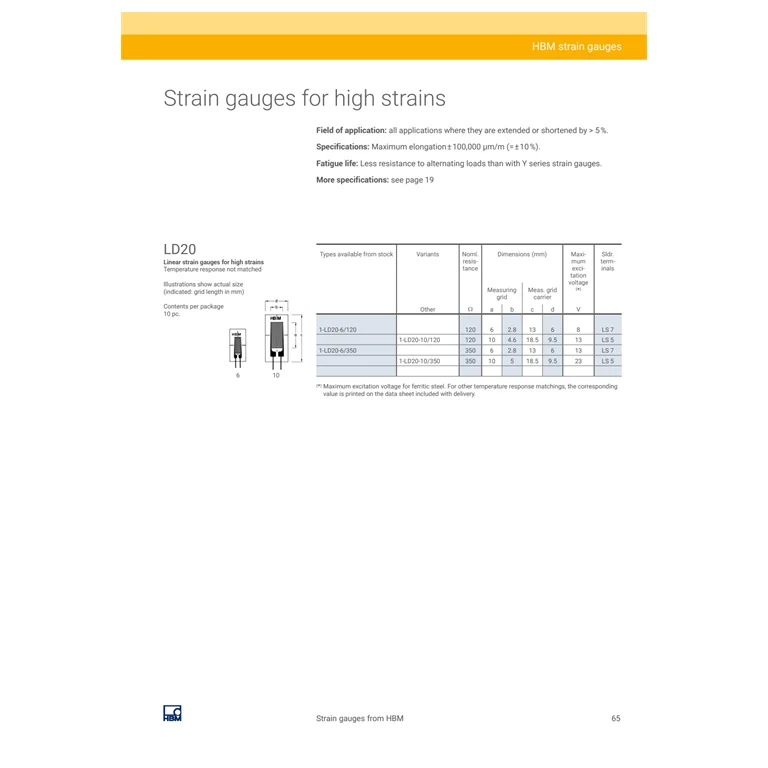

High Strain (LD20) Strain
High Strain (LD20): sensors and measurement devices by HBK for strain.
Visit the HBK site (opens in a new tab)
Shared technical specifications for the series
Properties every model in the series has. What differs is in the models table below.
Range across models
The span covered by the models of the series together — not the range of each model.
| Gauge resistance | 120–350 Ω |
|---|
Models in the series
One column per model: what differs between the models of the series.

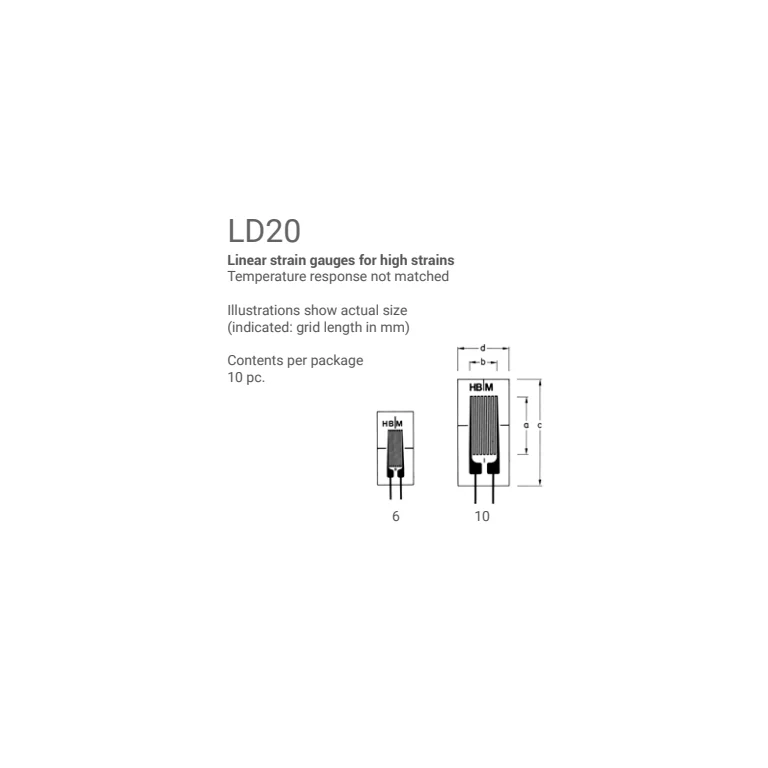

| Parameter | 1-LD20-10/120 eli-m-beeff0d691db33e3066dbdad | 1-LD20-10/350 eli-m-f53d721ad2bd97ba22704be0 | 1-LD20-6/120 eli-m-b2504be77c00d759772edd97 | 1-LD20-6/350 eli-m-9668b722fc83ad09bdcf35ea |
|---|---|---|---|---|
| quantity_specification | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); No matching of temperature response; Leads; Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); No matching of temperature response; Leads; Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); No matching of temperature response; Leads; Bondable | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); No matching of temperature response; Leads; Bondable |
| Gauge resistance | 120 Ω | 350 Ω | 120 Ω | 350 Ω |
| interface_specification | Unknown | Unknown | Unknown | Unknown |
| Status | Active | Active | Active | Active |
