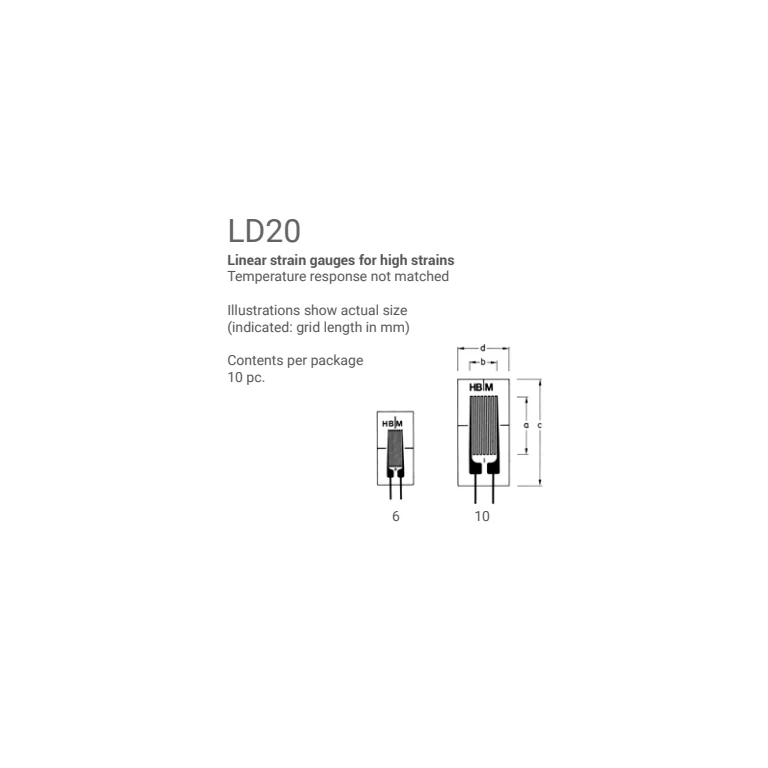

1-LD20-6/120
From the High Strain (LD20) series
High Strain (LD20): sensors and measurement devices by HBK for strain.
Visit the HBK site (opens in a new tab)
Technical specification
Every engineering figure, laid out to scan quickly
| Gauge resistance | 120 Ω |
|---|---|
| interface_specification | Unknown |
| quantity_specification | Strain gauge; Linear; Constantan (ca 2.0); Standard (up to 200°C); No matching of temperature response; Leads; Bondable |
| source_repeatability_basis | No unsupported standalone repeatability is inferred; installed repeatability is verified after bonding and shunt calibration. |
| source_linearity_basis | Use the exact HBK gauge factor, transverse sensitivity and batch calibration values supplied with the ordering code. |
