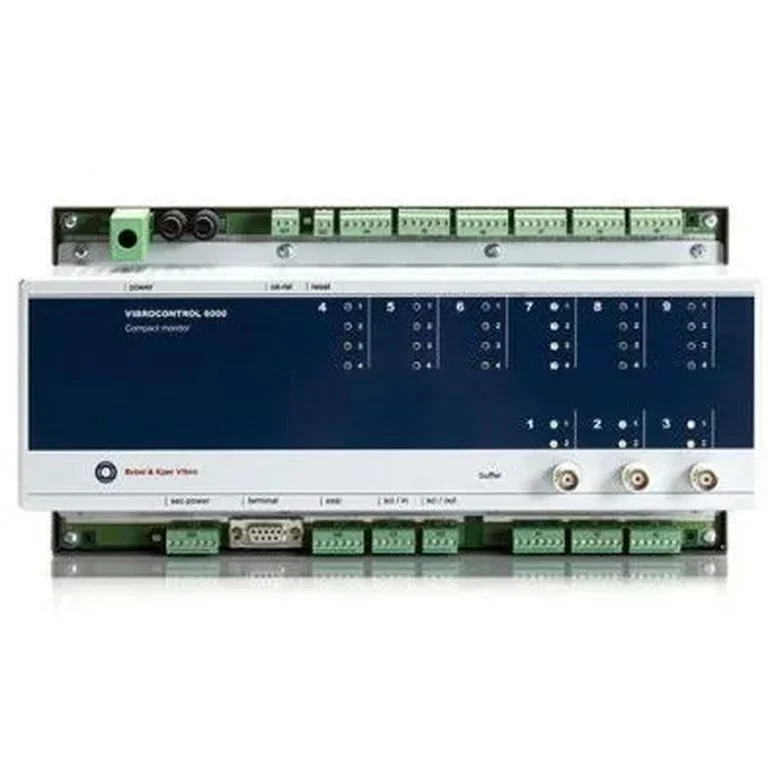

VC-6000 Compact monitor
From the VIBROCONTROL 6000 series
VIBROCONTROL 6000: data acquisition systems by Brüel & Kjær Vibro for vibration.
- Number of measurement channels
- 3
Technical specification
Every engineering figure, laid out to scan quickly
| Protection class (DIN EN 60529) | ip20 |
|---|---|
| Interfaces | ethernet |
| Number of measurement channels | 3 |
| Operating temperature | -20–70 °C |
| interface_specification | Optional OPC/Ethernet gateway |
| interface_specification | Digital I/O |
| source_repeatability_basis | Verify the complete chain using the installed sensor, gap / mounting condition, channel module and calibration route. |
| interface_specification | Sensor-specific AC/DC inputs |
| source_sampling_rate_basis | Acquisition rate and waveform bandwidth depend on the selected monitor module and system configuration; no cross-model scalar is inferred. |
| quantity_specification | Up to three channels and a library of more than 200 monitoring applications. |
| interface_specification | Up to 12 configurable alarm relays |
| source_linearity_basis | Use the configured channel and sensor specifications for measurement uncertainty and protection-loop verification. |
| interface_specification | Up to 12 configurable analog DC outputs |
| interface_specification | Serial service interface |
| interface_specification | Buffered sensor-signal output |
| interface_specification | Optional local user terminal |
