ILD1750-2DR
From the optoNCDT 1750 series

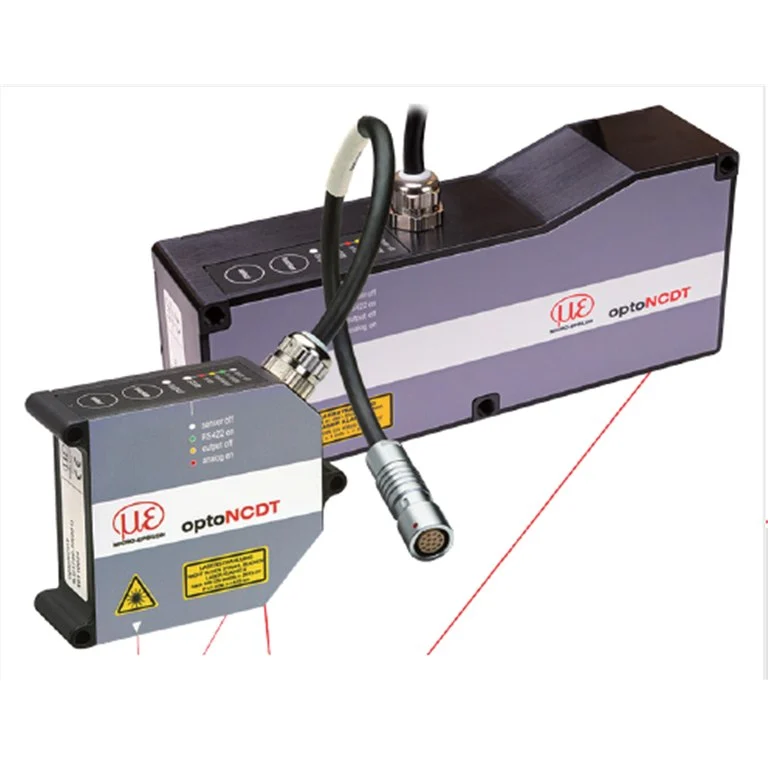

optoNCDT 1750: sensors and measurement devices by Micro-Epsilon for laser triangulation.
Download the datasheet (opens in a new tab) This series on the Micro-Epsilon site (opens in a new tab)
Technical specification
Every engineering figure, laid out to scan quickly
| Measuring range | 2 mm |
|---|---|
| Start of measuring range | 24 mm |
| End of measuring range | 26 mm |
| Linearity | 1.6 µm |
| Repeatability | 0.1 µm |
| Measuring rate | 7500 Hz |
| Interfaces | ethernet |
| interface_specification | RS422 / RS485 |
| Operating temperature | 0–50 °C |
| Protection class (DIN EN 60529) | ip65 |
| Light spot diameter | 0.08 mm |
| Interfaces | profinet |
| Interfaces | usb |
| Light spot diameter | 0.035 mm |
| interface_specification | Analog 0-10V |
| Interfaces | ethercat |
| Contact | Non-contact |
Compatible accessories
Controllers
- IF2001/USB eli-m-35721df1c25134aa74715544 Required
- IF2008/ETH eli-m-b1ae07a985efec8c0d992a17 Required
Cables
- PC1700-x eli-m-dec4819684cccbff3bcac4a0
- PCR1700-x eli-m-5e8ff953c777238d096aa600
- PC1750-x/C-Box eli-m-51564da2c2df734d7a277b01
Complementary products
- IF1032/ETH eli-m-9f23885a1bd1bd049fa826c5 Optional
- IF2035-PROFINET eli-m-28ba928f99d465e1027173dc Optional
- IF2035-EIP eli-m-6bc477e0074e9f357537ebb7 Optional
- IF2035-EtherCAT eli-m-4f0c3cc8987603de07eab245 Optional
- IF2001/USB eli-m-35721df1c25134aa74715544 Optional
- IF2004/USB eli-m-4f8d6810bc5247a038ab8f8e Optional
